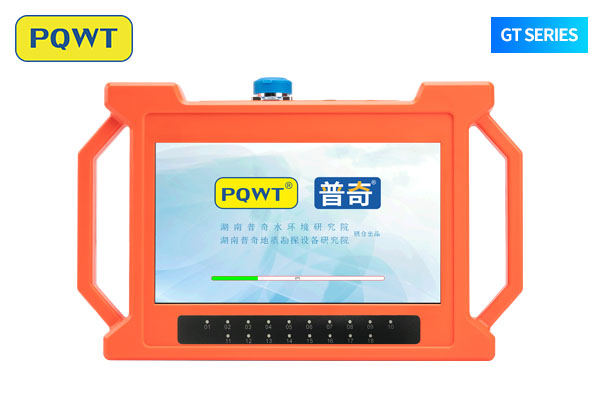

PQWT GT SERIES Auto-Analysis Geophysical Survey Equipment
- (¥) CNY
- (UShs) UGX
- ($) USD
The PQWT-GT Series is an advanced multi-channel geophysical prospecting system designed for efficient and accurate underground water exploration and geological investigation. Developed using the principles of the natural electric field frequency selection method, this eighth-generation technology delivers powerful data acquisition, automated analysis, and real-time geological mapping capabilities.
The PQWT-GT Series is widely used to detect and investigate groundwater resources, geological structures, mineral veins, mine tunnels, underground cavities, karst formations, voids, mined-out areas, dam seepage channels, landslide zones, and other subsurface anomalies.
Featuring PQWT’s advanced proprietary technology, the system integrates multiple intelligent functions, including:
· Multi-channel and multi-frequency data acquisition
· Advanced data processing and analysis
· Automatic geological mapping
· Real-time curve and profile generation
· 3D geological visualization
· Intelligent identification of abnormal underground areas
By collecting data simultaneously across multiple channels and frequencies, the PQWT-GT Series helps minimize inconsistencies associated with changing natural electric field conditions. This improves survey efficiency and provides clearer, more reliable information for geological interpretation.
The instrument automatically processes collected survey data and generates curve maps, geological profiles, and 3D visualizations in real time. Its intelligent analysis capabilities help identify potential underground anomalies, enabling users to quickly evaluate subsurface geological conditions and make more informed decisions during groundwater exploration, drilling, mining, and geotechnical investigations.
With its combination of multi-channel detection, automated data analysis, real-time mapping, and deep subsurface investigation capabilities, the PQWT-GT Series provides a practical and efficient solution for modern geophysical surveying.
| Model | PQ-GT150A | PQ-GT300A | PQ-GT500A | PQ-GT1000A | PQ-GT1500A | PQ-GT2000A | PQ-GT3200A |
| Optional Depth |
100m/150m |
150m/300m |
150m/300m/500m |
500m/800m/1000m |
500m/1000m/1500m |
500m/1000m/1500m/2000m |
500m/1000m/1500m/2000m/3200m |
| Measuring Time |
5-6min |
6-8min |
8-10min |
10-15min |
15-20min |
20-25min |
– |
| Maximum number of channels | 18 Channels |
| Minimum Resolution |
0.001mv |
| Points Selection | 18 Channels |
| Controller | 32-bit high-speed CPU |
| A/D Conversion |
16 Bits 1Msps |
| Working Temperature |
-20℃~50℃ |
| Power Consumption | 9W |
| Measurement Data Unit | Electric field components of different frequencies of magnetotelluric field Vs (mV) |
| Display |
10.1-inch industrial-level high-definition display (resolution 1024*600) |
| Stand-By Time | 8 hours |

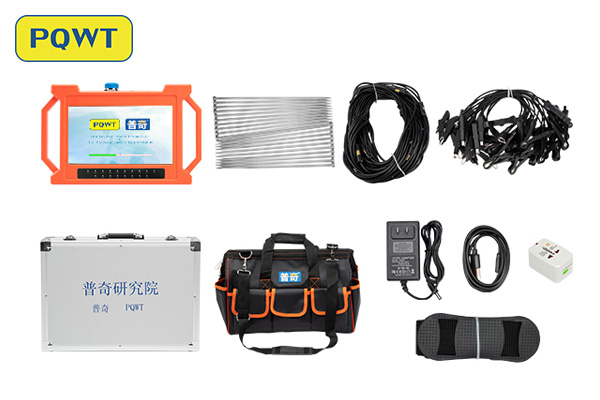

| Electrode |
2.5m point pitch, 10m line pitch, 54.7m in total length |
| Host Weight | 1.95 Kg |
| Depth | S150, S300, S500 |
|---|
