PQWT PQ226 Series
- (¥) CNY
- (UShs) UGX
- ($) USD
Price range: KShs 102,002.00 through KShs 102,003.00

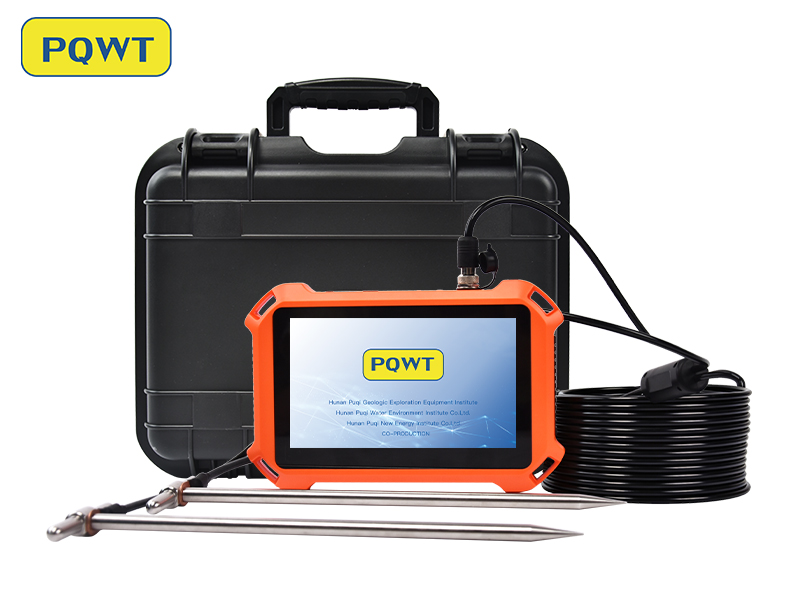

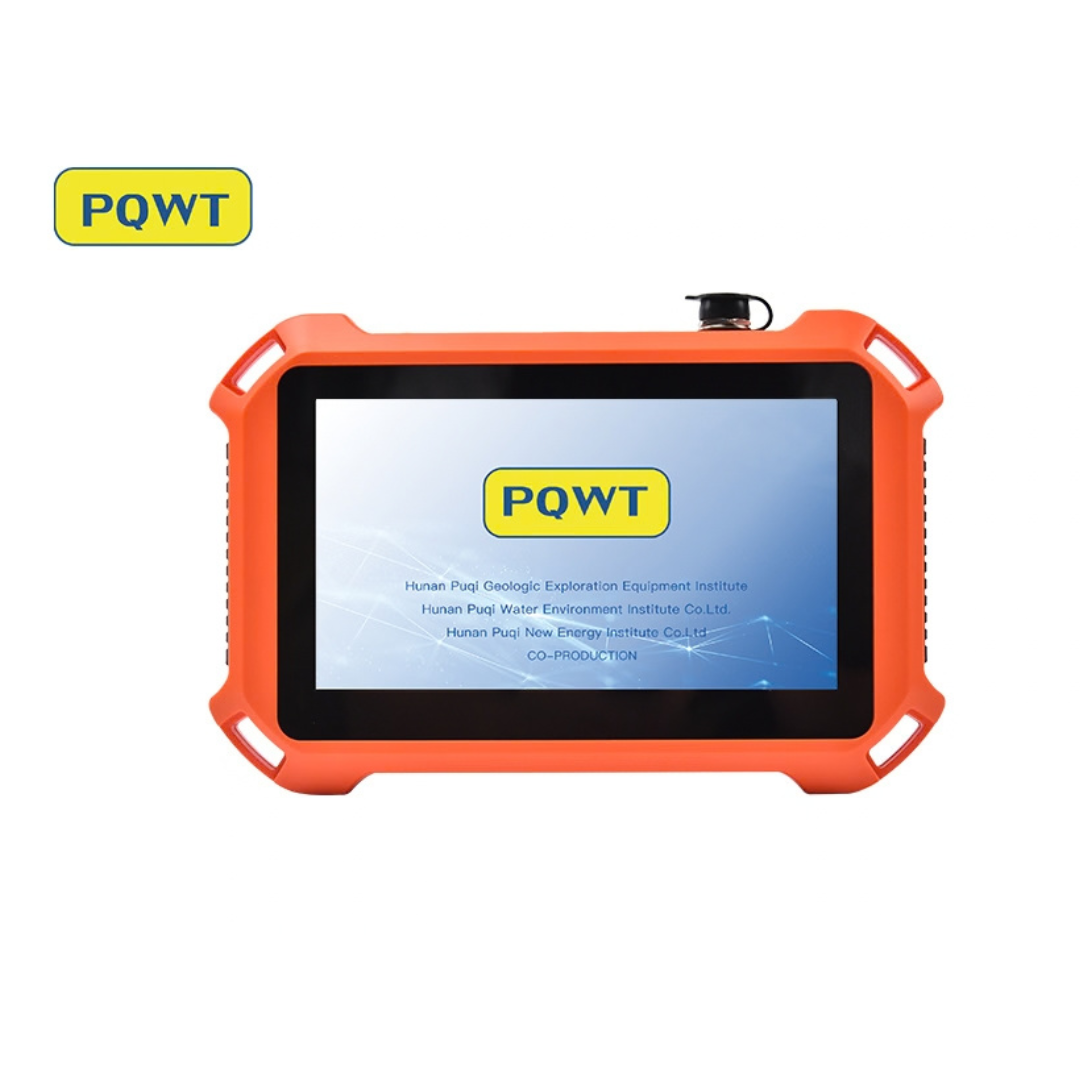

- Product: The PQ226 Series is a portable groundwater detector with automatic mapping, built for accurate underground water detection and exploration.
- Method: It uses magnetotelluric field technology to analyze differences in underground conductivity.
- Detection: This lets it identify aquifers, fractures, faults, and other geological structures with high precision.
- Automatic mapping: It generates real-time maps and geological profiles with one click, without complex computer processing.
- Ease of use: Intuitive curve graphs make subsurface conditions easy to understand, supporting efficient decisions during drilling and exploration.
Technical Specifications:
| Parameter | PQ226A | PQ226B | PQ226C | PQ226D | PQ226E |
| Optional Depth | 50m / 100m / 200m | 100m / 200m / 400m | 100m / 200m / 400m / 600m | 200m / 400m / 600m / 800m | 200m / 400m / 600m / 800m / 1000m |
| Measuring Time | ≈45s | ≈60s | ≈85s | ≈90s |
≈100s |
Common Specifications:
| Measuring Mode | Scan & Precision |
| Graph Display | Curve, Profile, 3D |
| Signal Processing | Digital Integration |
| Number of Channels | Single Channel |
| A/D Conversion | 16 bits, 3.6MSPS |
| Controller | 32-bit high-speed controller |
| Measurement Data Unit | Electric field components of different frequencies of the Earth’s electromagnetic field E (mV) |
| Charging Time | 6 hours |
| Standby Time | 6 hours |

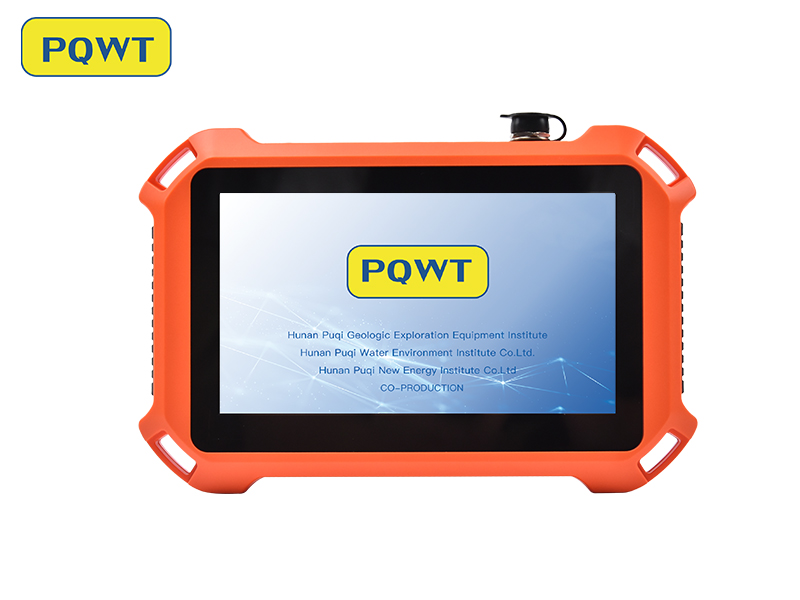

| Display Screen | 7-inch capacitive touch screen (1024 × 600) |
| Brightness | 260 cd/m² |
| Battery | 3.7V / 7000mAh lithium battery |
| Charger | 5V / 2A |
| Interface | Type-C |
| Host Weight | 0.6kg |
| Depth | PQ226A, PQ226B, PQ226C, PQ226D, PQ226E |
|---|
