Centrifugal Mud PumpRequest Quote
Key Features:
- Discharge: 600 LPM
- Engine Power: 10 HP
- Engine Make: Yanmar
- Suction Size: 65–75 mm
-
CompressorsRequest Quote
 Key Features:
Â
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Â
Â
Â
-
Drilling CompressorsRequest Quote
Key Specifications
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
-
Duplex Double Acting Piston Mud PumpsRequest Quote
The duplex double acting piston mud pump range is designed to support drilling operations requiring reliable mud circulation. The catalogue provides Models 125, 150, 200 and 250, offering different stroke sizes, line sizes, displacement ranges and maximum pressure capabilities to accommodate different drilling requirements.
-
FD Series Core Drilling RigsRequest Quote
The FD Series Full Hydraulic Drilling Rigs are heavy-duty drilling systems designed for core drilling, water well drilling, and geological investigation. With models offering drilling depths from 400 m to 1,400 m, the range provides powerful hydraulic performance, high torque, and flexible crawler, skid, or truck-mounted configurations for demanding field conditions.
-
FD1000 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 1,200 m
- NTW Drilling Capability: 1,000 m
- HTW Drilling Capability: 800 m
- Maximum Powerhead Torque: 2,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 24 T
- Propulsive Force: 12 T
- Engine: 129/130 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 8.4 T
-
FD1200 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 1,400 m
- NTW Drilling Capability: 1,200 m
- HTW Drilling Capability: 1,000 m
- Maximum Powerhead Torque: 3,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 26 T
- Propulsive Force: 12 T
- Engine: 132 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 9
-
FD800 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 1,000 m
- NTW Drilling Capability: 800 m
- HTW Drilling Capability: 600 m
- Maximum Powerhead Torque: 2,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 20 T
- Propulsive Force: 10 T
- Engine: Yuchai 92 kW, six-cylinder
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 7.5 T
-

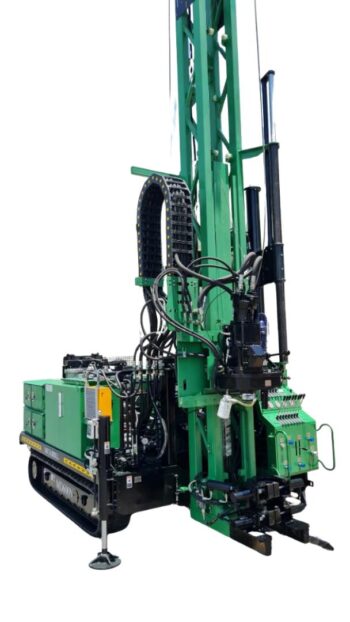

FDG 400 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
-
FDG 400 Core Drilling Rig (Copy)Request Quote
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
-
FDG 600 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 6.2 T
-
FDG400 Full Hydraulic Waterwell Drilling RigRequest Quote
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
-
FDX 400 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Rubber-track crawler
- Operating Weight: 5.3 T
-
FDX 600 Core Drilling RigRequest Quote
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Rubber-track crawler
- Operating Weight: 5.7 T
-
Request QuoteBrand: FYFDX400 Full Hydraulic Waterwell Drilling Rig
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
-
Request QuoteBrand: FYFY Series Full Hydraulic Waterwell Drilling Rigs (300M-1000M)
The FY Series are full hydraulic water well drilling rigs designed for reliable performance across demanding drilling applications. With drilling depths from 300–1,000 m and hole diameters up to 400 mm, the range offers lifting forces of 12–36 tonnes and engine capacities of 55–194 kW. Available in crawler, skid, or truck-mounted configurations, with Yuchai or Cummins engines, the FY Series provides flexible solutions for different drilling environments and project requirements.
-
Request QuoteBrand: FYXFYX Series Full Hydraulic Waterwell Drilling Rigs (180M,200M)
The FYX Series is a range of powerful hydraulic water well drilling rigs designed for efficient and reliable drilling in demanding conditions. With drilling depths of 300–1,000 m, hole diameters of 140–400 mm, and engine power ranging from 55–194 kW, the series offers strong performance and flexibility for water well, geothermal, construction, and industrial drilling applications.
-

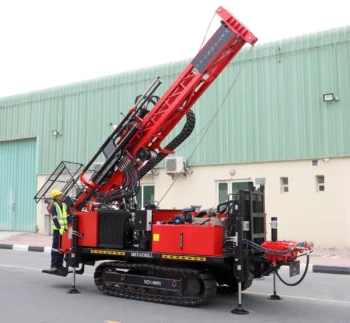

Request QuoteBrand: METADRILLMD1000N Multi-Purpose Geotechnical & Exploration Drill Rig
Application: Surface Exploration
Drill Rod Size: PO/ HQ/ NQ
Max Depth: PQ 400 m; HQ= 600 m; NQ=1000 m
Prime Mover: 256 HP
Rotary Head: Torque: 825-5172 Nm
Speed: 110-1200 rpm
Rod Handling: 3 m rod handling
Pull Up: 12000 kgf
Pull Down: 8000 kgf
Water Pump: Displacement of 165 lpm with 50 Bar
SPT: Automatic SPT Hammer (Optional)
Â
Â
-
Request QuoteBrand: METADRILLMD40
The MD40 is a compact, track-mounted drilling rig designed for shallow geotechnical drilling applications, particularly in confined and difficult-to-access locations.
With a compact width of just 1.6 meters, the rig offers excellent maneuverability and can operate efficiently in areas with limited space.
The MD40 can accommodate either 3-metre or 1.5-metre drill rods, providing flexibility for different drilling requirements.
Depending on project conditions and customer preferences, it can be configured with a 4-speed rotation head or a dual-motor system to deliver optimal drilling performance.
Fully customizable to suit specific operational needs, the MD40 provides an economical, versatile, and efficient solution for shallow drilling projects where precision, flexibility, and accessibility are essential.
