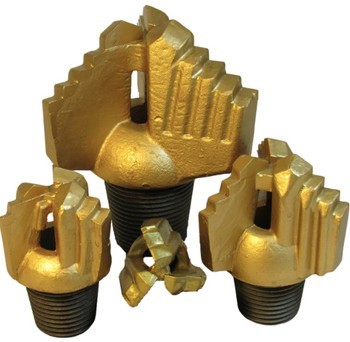

Stepped Drag Bits
- (Â¥) CNY
- (UShs) UGX
- ($) USD
Stepped drag bits are drill bits used to drill holes in soft to medium-hard formations such as sandstone, shale, and clay.
These bits have a stepped profile, meaning they have different-sized cutting elements spaced along the bit.
The cutting elements on stepped drag bits are typically made of tungsten carbide or diamond inserts, which provide high wear resistance and durability.
The stepped design allows the bit to penetrate the formation more efficiently and reduces the risk of getting stuck in the hole.
We supply all sizes of drag/clay bits
