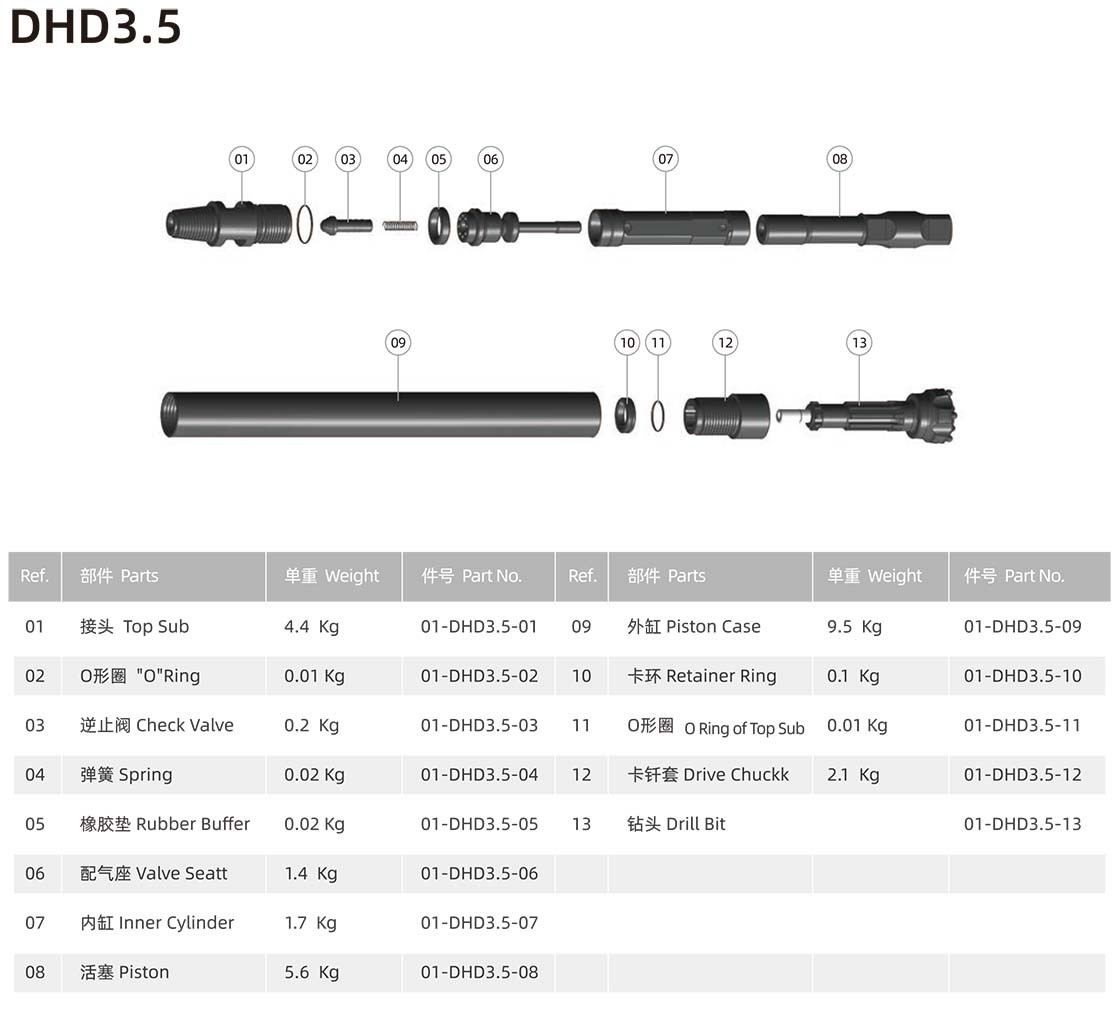

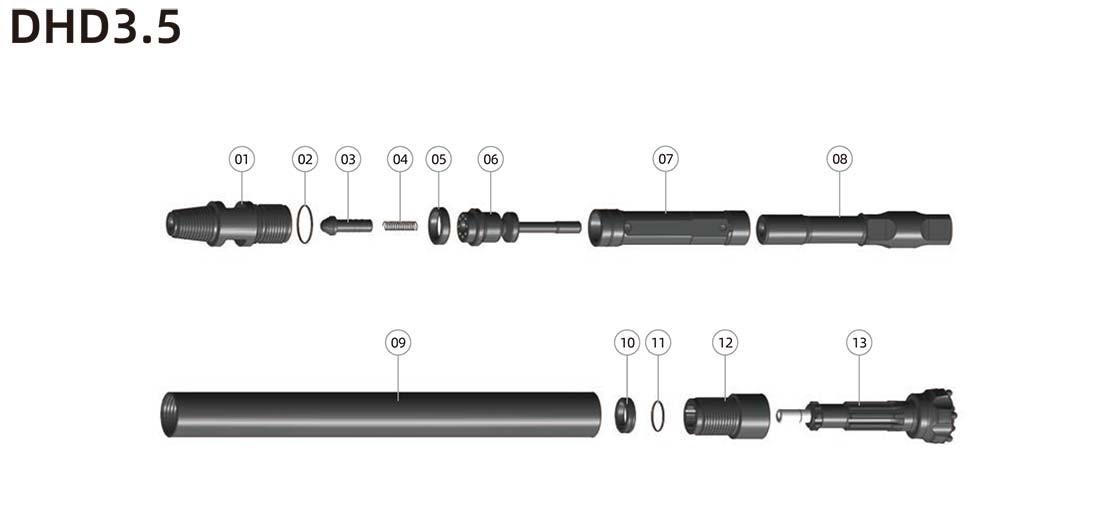

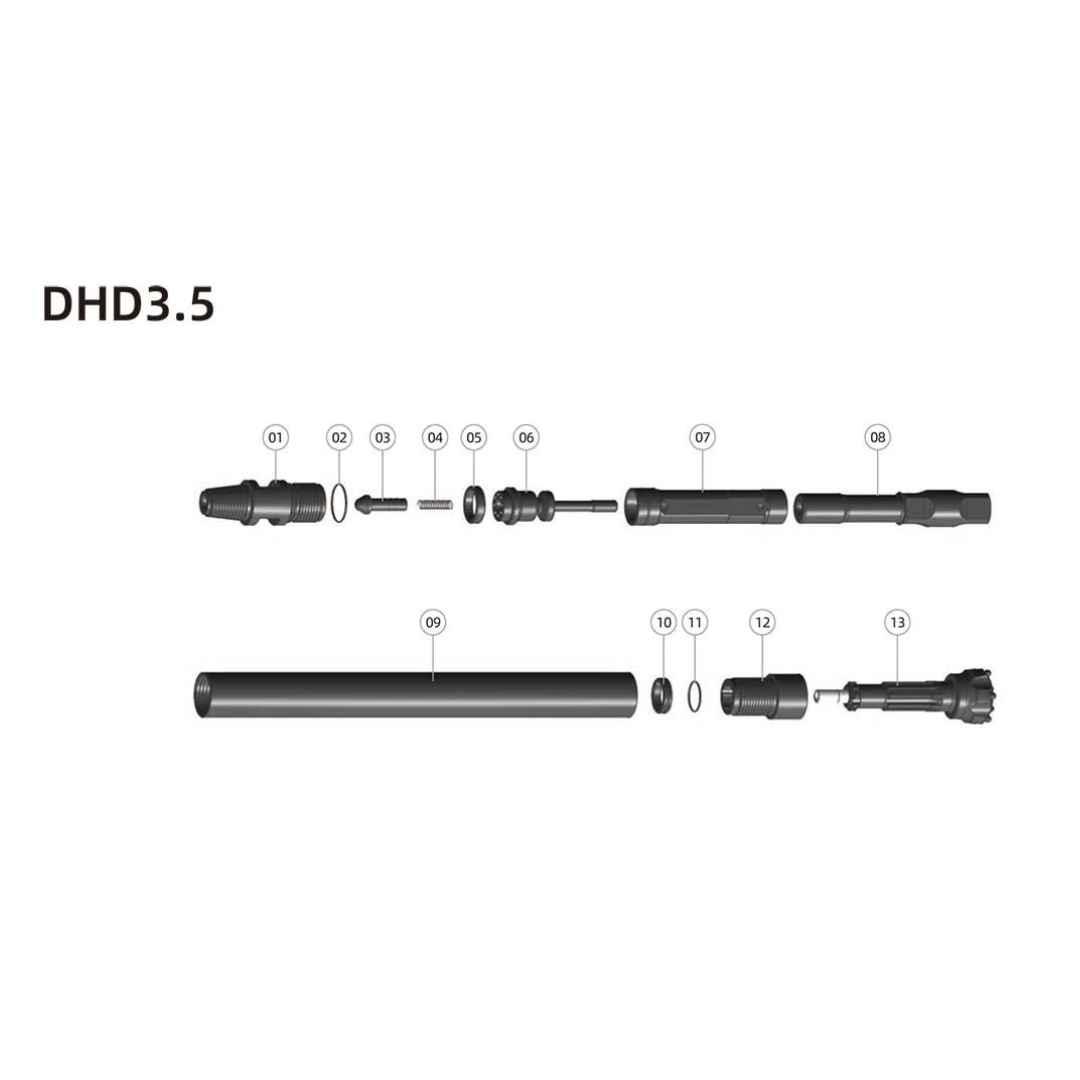

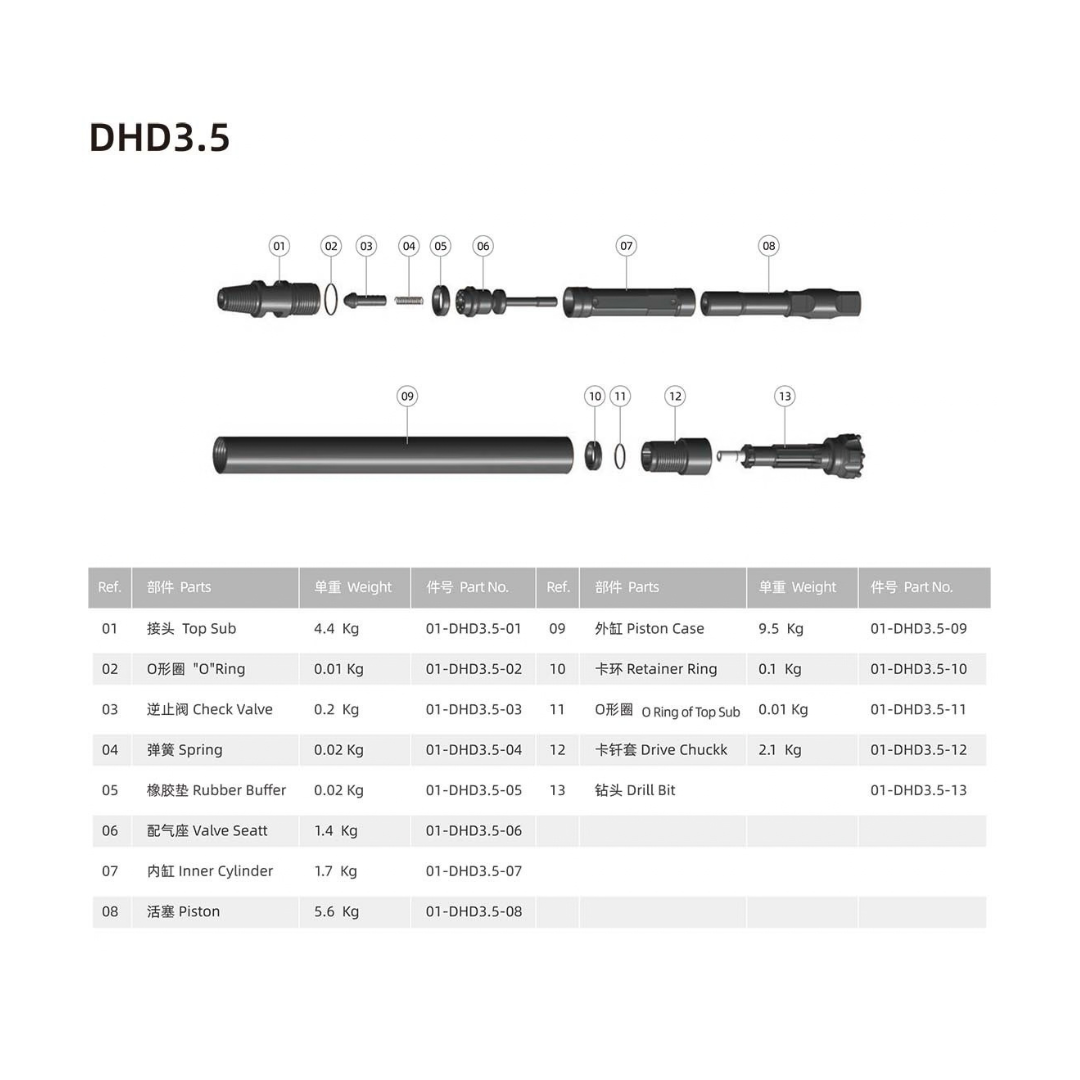

DHD 3.5 Hammer
(KShs)
KES
Default
- (Â¥) CNY
- (UShs) UGX
- ($) USD
3 sold in last 16 hours
Hurry! Over 6 people have this in their carts
Brand: HND
Quote via Chat Estimated Delivery: Fri, Oct 02 – Wed, Oct 07 (Excl Sat, Sun)
... people are viewing this right now
| Length (Less Bit) | Weight | Outer Diameter | Connection Thread | Bit Shank | Hole Range |
| 928mm | 25Kg | 82mm | API2 3/8″REG | DHD 3.5 | 90-110mm |
| Working Pressure | Recommended Rotation Speed | Air Consumption at 1.8Mpa | Air Consumption at 2.4Mpa |
| 1.0-1.7Mpa | 30-60 r/min | 4.5m³/min | 8.5m³/min |
Â
Related Products
NQ Core Drilling Tools
Request Quote
Â
Key Specifications
- Tool Range: NQ Bits / NQ Heads
- Application: Core Drilling
- Configuration: NQ drilling tools
Â
Brand: HND
ND35A 90mm – 108mm
Product Features:
ADM ND35A Hammer used in drilling especially in quaries has the following specifications
Length-886mm
Weight-24.2 kg
Outer diameter-82mm
Connection Thread-AP12 3/8” REG
Bit shank-ND35A
Hole Range-90-115mm
Work Pressure-1.0-1.7Mpa
Recommended Rotation Speed-30-50/min
Air Consumption-4m3/min -6.5m3/mim
HQ Core Drilling Tools
Request Quote
Â
Key Specifications
- HQ heads
- HQ bits
- Core lifters
- Core lifter cases
- Stop rings
- Reamer shells
Â
Â
Â
Â
2021 PRD Speedstar
Request Quote
Rig Features:
- 2021 PRD Speedstar drilling rig
- Mounted on Ashok Leyland 2518 6*4 truck
- Maximum drilling depth of 363 meters
- ELGI (21Bar) Compressor
