WZG-24/48C Engineering Seismograph Series
- (Â¥) CNY
- (UShs) UGX
- ($) USD

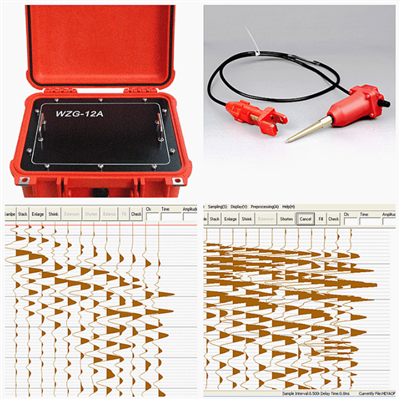

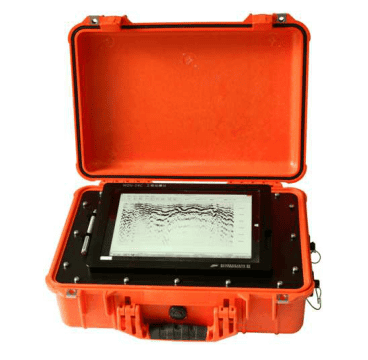

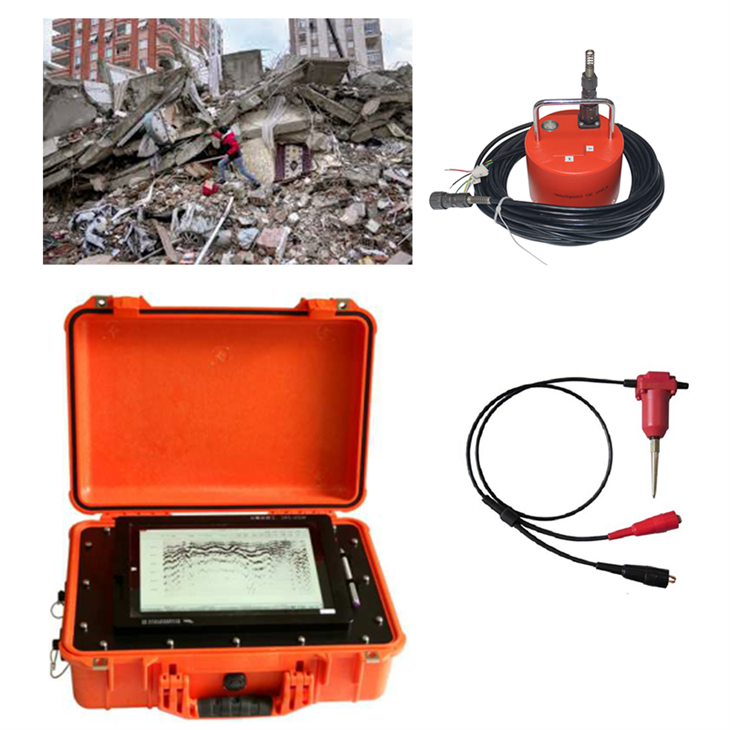

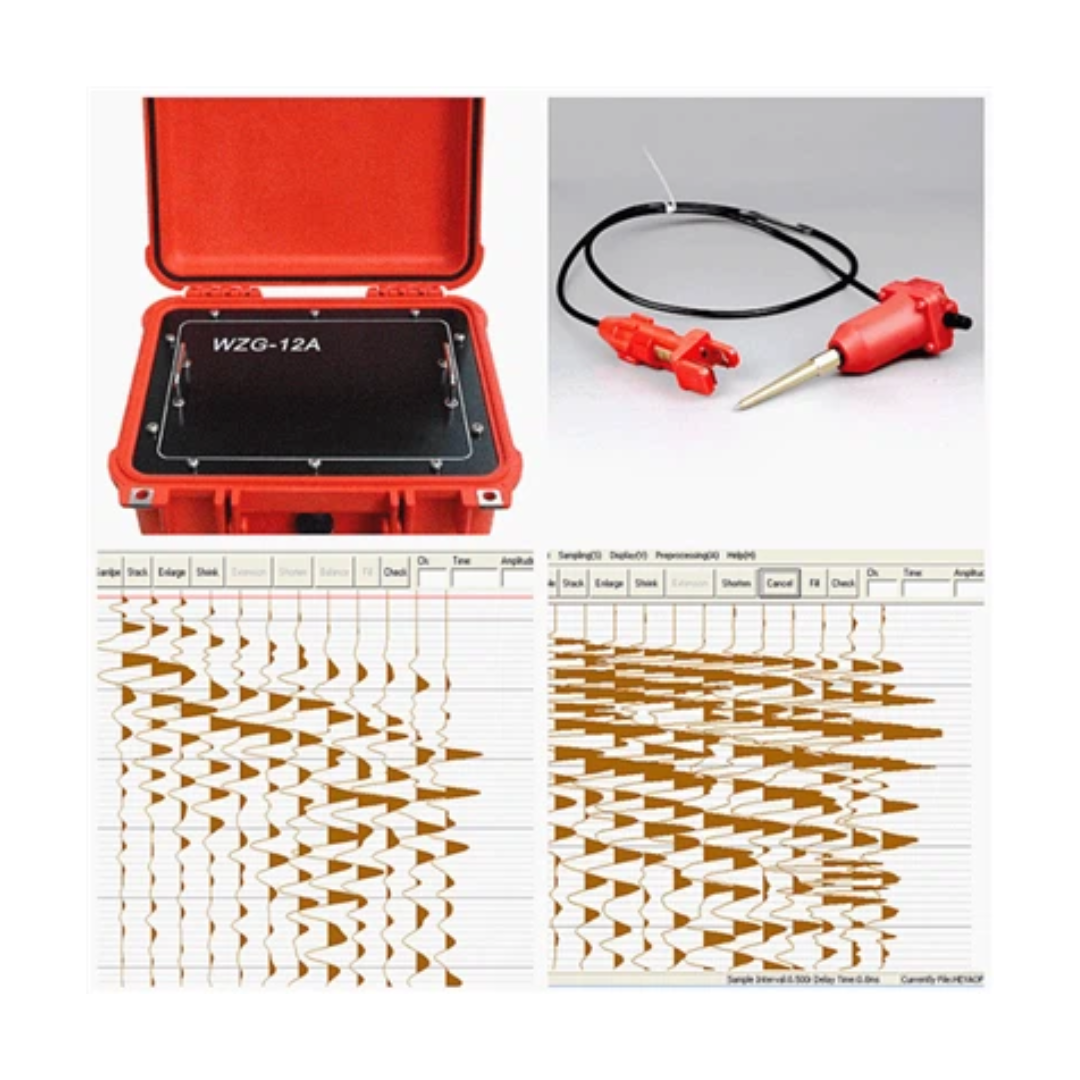

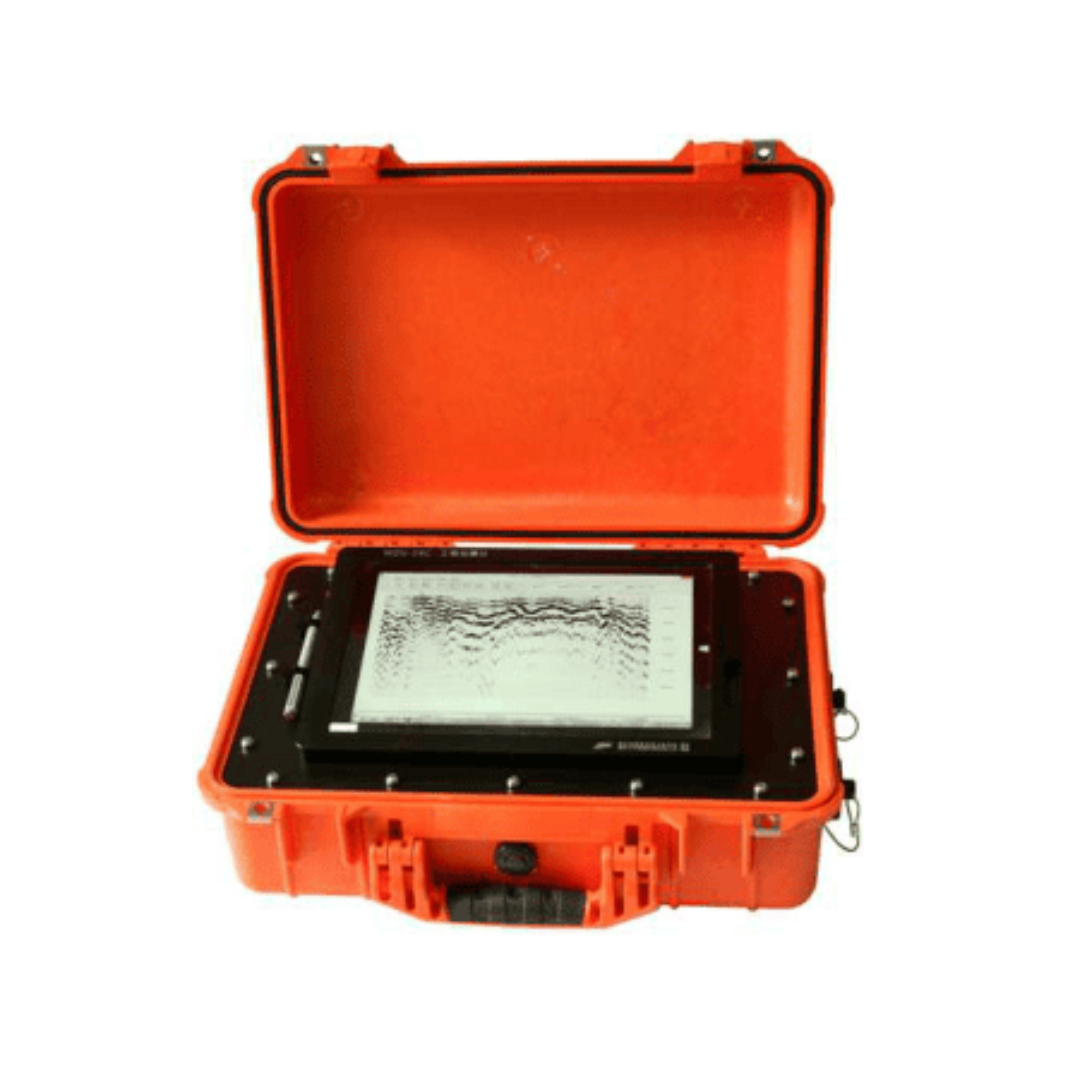

- Product: The WZG-24/48C is a 24/48-channel engineering seismograph with 24-bit digital technology for high-resolution seismic data acquisition.
- Applications: Surface wave analysis, seismic refraction and reflection surveys, shear wave velocity testing, pile integrity assessment, and micro tremor monitoring.
- Key features: Real-time waveform display, signal enhancement, noise reduction, waveform stacking, and flexible sampling options.
- Performance: Wide dynamic range and high sampling precision give reliable results even in challenging field conditions.
- Flexibility and uses: Supports 24- or 48-channel setups for projects from shallow site characterization to complex subsurface imaging, including infrastructure, groundwater, mining, environmental, and civil engineering work.
| Parameter | Specification |
| Channels | 6 / 12 / 24 / 48 |
| Sample Stations | Â 1,024; 2,048; 4,096; 8,192; 16,384 Micro-seismic Survey Sampling: 1 m sampling interval, several notches |
| Sampling Frequency | 10 μs, 25 μs, 50 μs, 100 μs, 200 μs, 500 μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms
Micro-seismic Survey Sampling Frequency: Selectable from 1 ms to 200 ms |
| A/D Converter | 24-bit |
| Signal Stack and Amplification | 32-bit |
| Dynamic Range | 144 dB |
| Frequency Pass Bands | 0.1 Hz – 4,000 Hz |
| Noise | 1 μV (full-frequency) |
