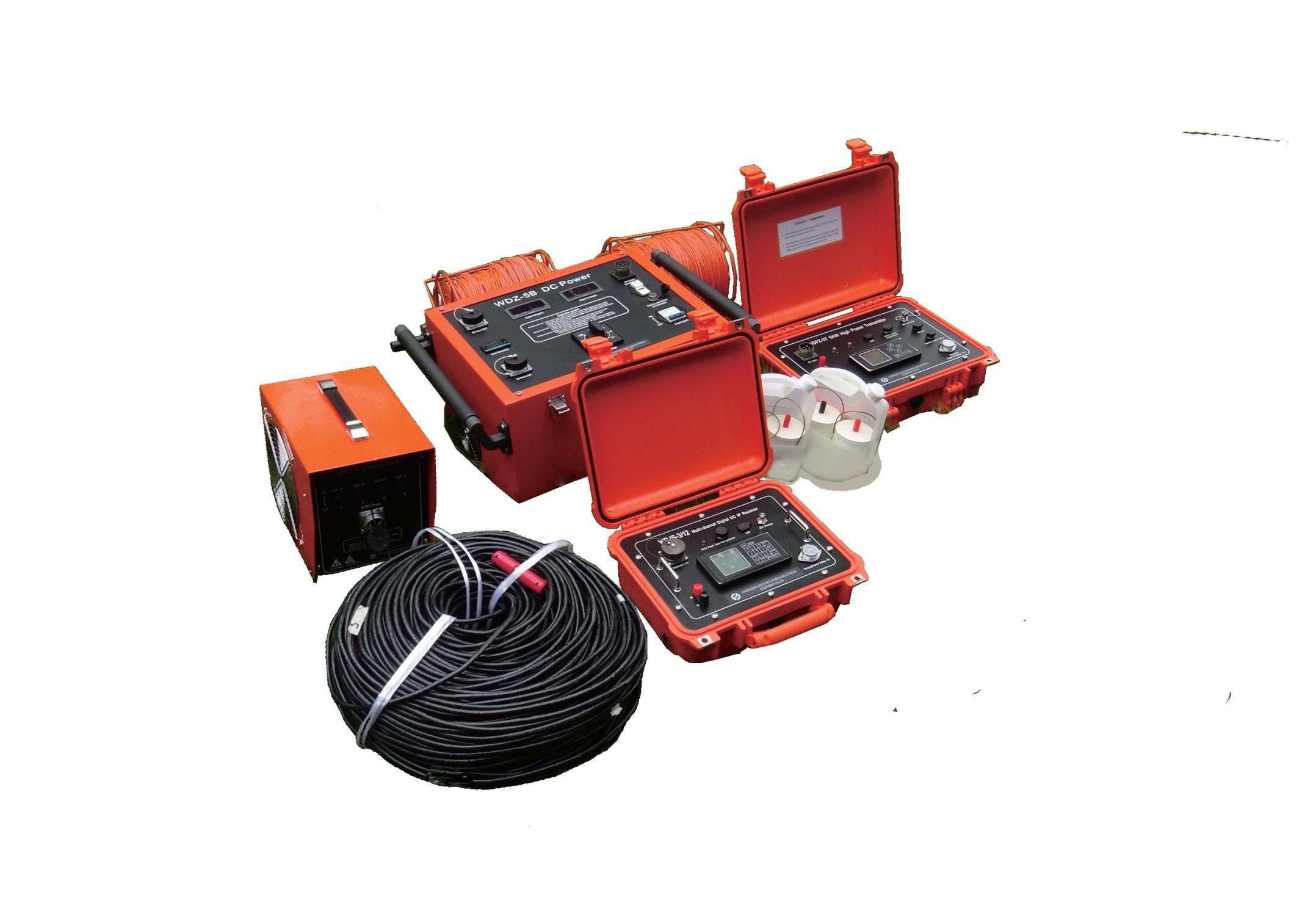

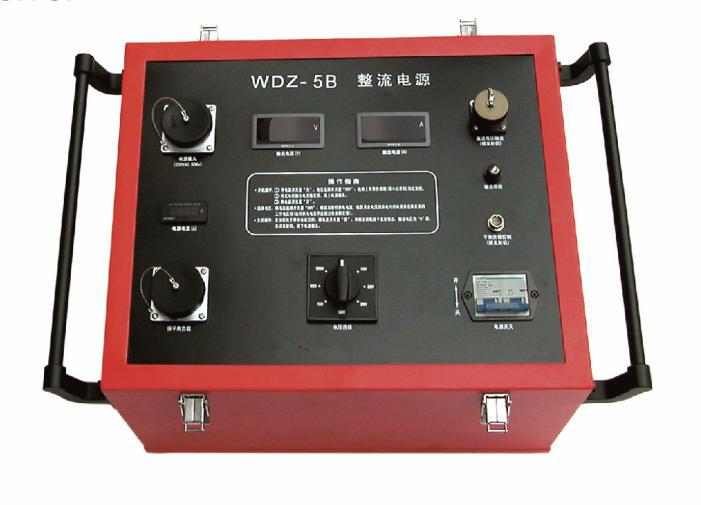

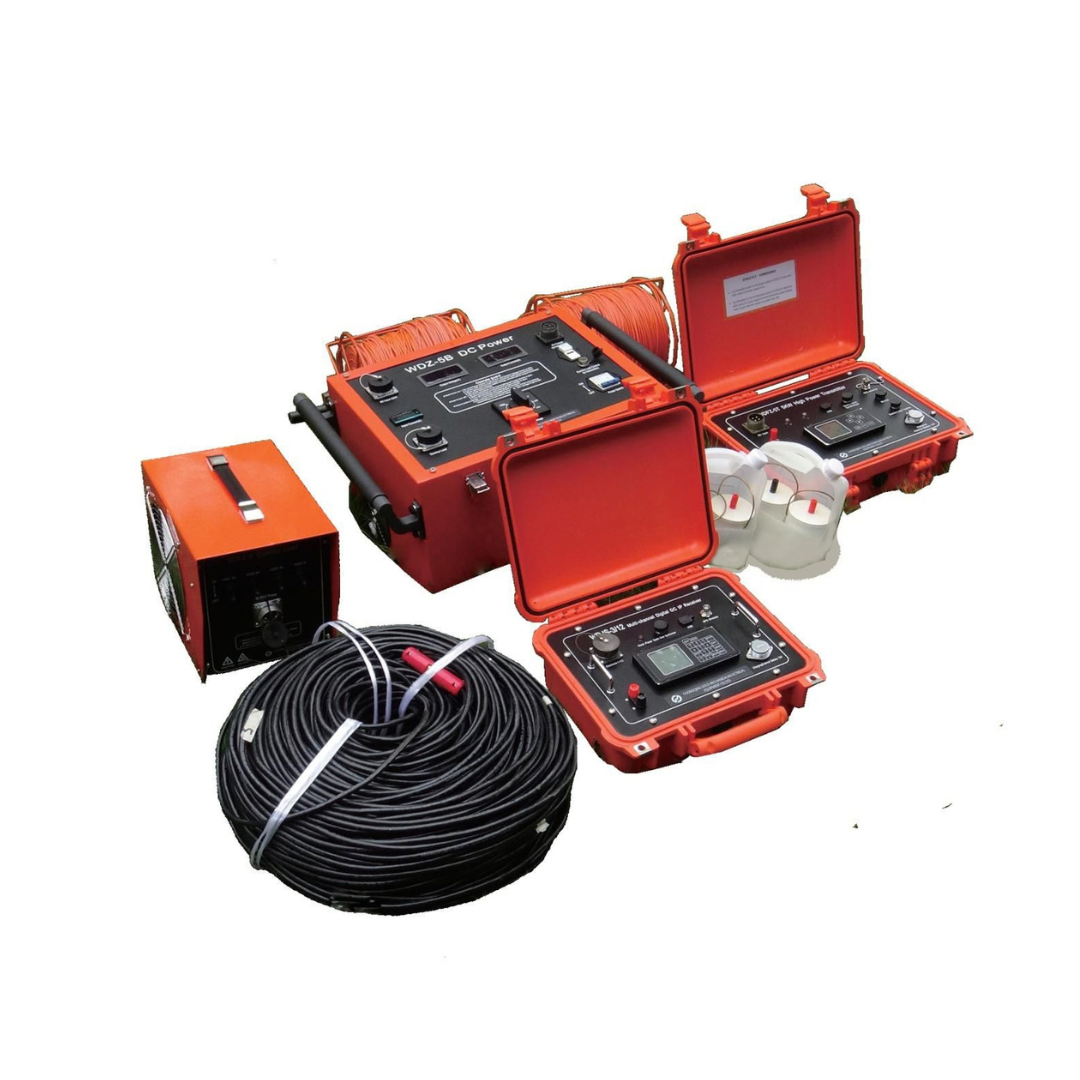

WDFZ-9 Super Electric Multi-electrode Survey System
- (¥) CNY
- (UShs) UGX
- ($) USD
- Multi-channel operation: Simultaneous data acquisition from multiple electrodes speeds up surveys and improves data accuracy.
- Power: Strong current injection allows deep detection and reliable data in high-resistivity formations and challenging ground conditions.
- Intelligent control: Microprocessor-based system with automatic ranging, polarity switching, and real-time monitoring for safe, efficient operation.
- Precision: Digital filtering and noise reduction give stable, interference-free signals for accurate subsurface mapping.
- Flexibility and durability: Works with multiple electrode arrays (Wenner, Schlumberger, Dipole-Dipole, etc.) for resistivity and IP surveys, in a robust, weather-resistant build suited to field and laboratory use.
This is an advanced geophysical instrument used for professional resistivity, IP, and geological exploration applications.
It is engineered with high-efficiency intelligent control and multi-channel data acquisition, it delivers fast, accurate, and stable results even in the most complex terrain.
Applications
• Groundwater exploration
• Mineral and geothermal resource surveys
• Geological structure mapping
• Environmental and engineering investigations
