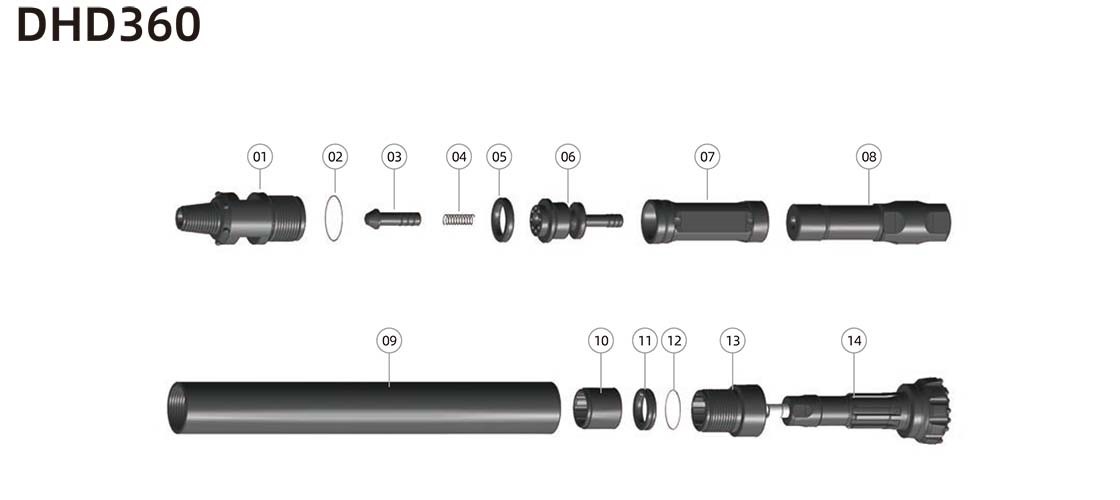

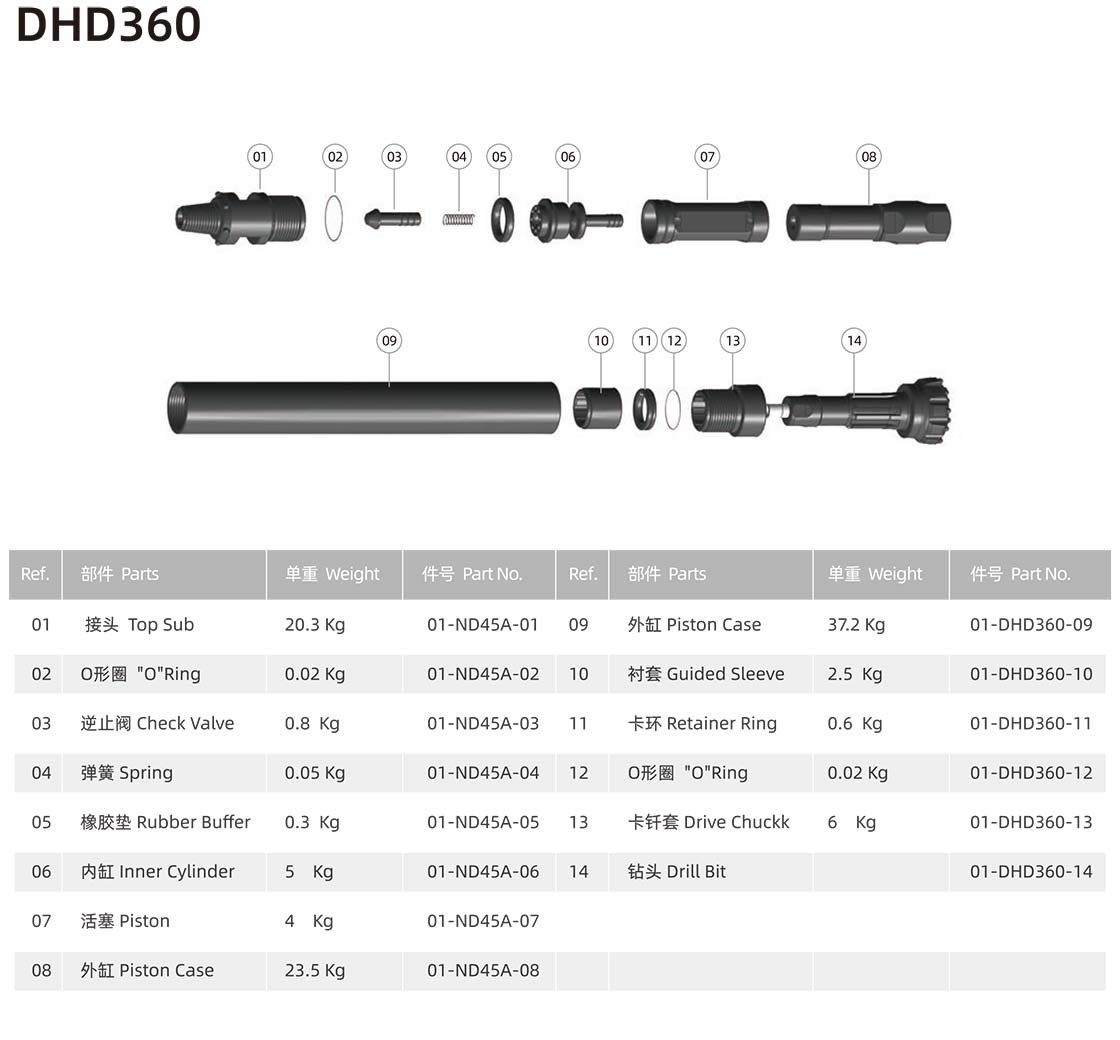

DHD 360 Hammer
(KShs)
KES
Default
- (Â¥) CNY
- (UShs) UGX
- ($) USD
3 sold in last 9 hours
Hurry! Over 18 people have this in their carts
Brand: HND
Quote via Chat Estimated Delivery: Fri, Oct 23 – Wed, Oct 28 (Excl Sat, Sun)
... people are viewing this right now
| Length (Less Bit) | Weight | Outer Diameter | Connection Thread | Bit Shank | Hole Range |
| 1063mm | 100.5Kg | 142mm | API3 1/2″REG | DHD 360 | 150-190mm |
| Working Pressure | Recommended Rotation Speed | Air Consumption at 1.8Mpa | Air Consumption at 2.4Mpa |
| 1.0-2.5Mpa | 3-60 r/min | 20m³/min | 28m³/min |
Â
Related Products
Brand: METADRILL
Wireline Drilling
- Faster drilling cycles: Core is retrieved without tripping the rods, cutting non-productive time.
- Deep-hole capability: Efficient and economical for deep drilling where conventional coring becomes slow.
- High core quality: Good recovery and well-preserved samples for logging, assay, and testing.
- Borehole stability: Rods act as temporary casing, protecting the hole in difficult formations.
- Lower labor and wear: Less handling of rods reduces operator effort and equipment wear.
Drilling Compressors
Request Quote
Key Specifications
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Brand: HND
ND35A 90mm – 108mm
Product Features:
ADM ND35A Hammer used in drilling especially in quaries has the following specifications
Length-886mm
Weight-24.2 kg
Outer diameter-82mm
Connection Thread-AP12 3/8” REG
Bit shank-ND35A
Hole Range-90-115mm
Work Pressure-1.0-1.7Mpa
Recommended Rotation Speed-30-50/min
Air Consumption-4m3/min -6.5m3/mim
Brand: HND
DHD 3.5 Hammer
- High penetration rate: Direct percussive impact for efficient drilling in hard rock.
- Durable construction: Heat-treated, wear-resistant components for long service life.
- Reliable performance: Stable operation across a wide range of air pressures.
- Easy maintenance: Simple design that is quick to service and repair.
- Versatile use: Suitable for water wells, exploration, geotechnical drilling, and quarry work.
