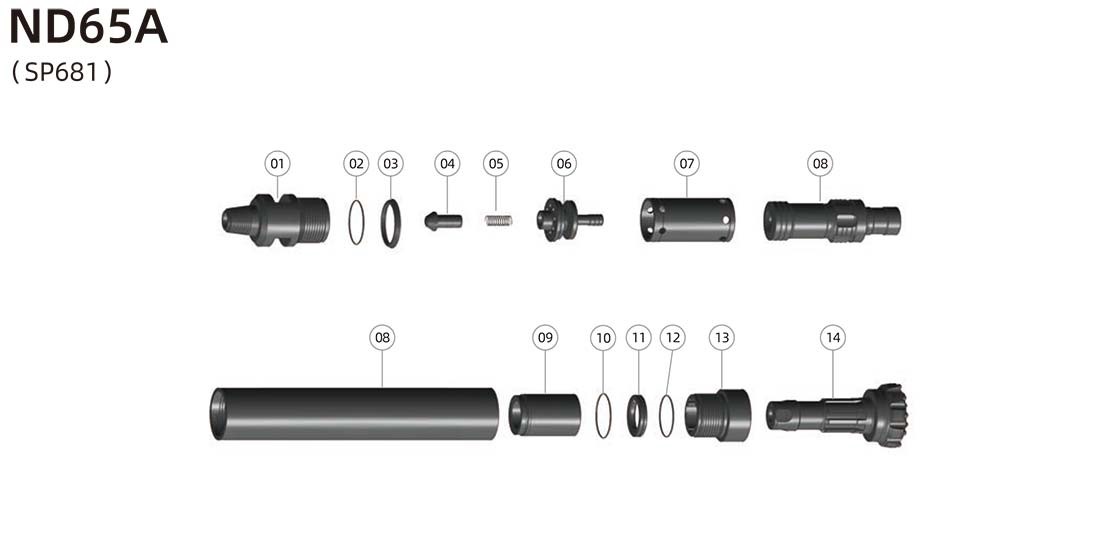

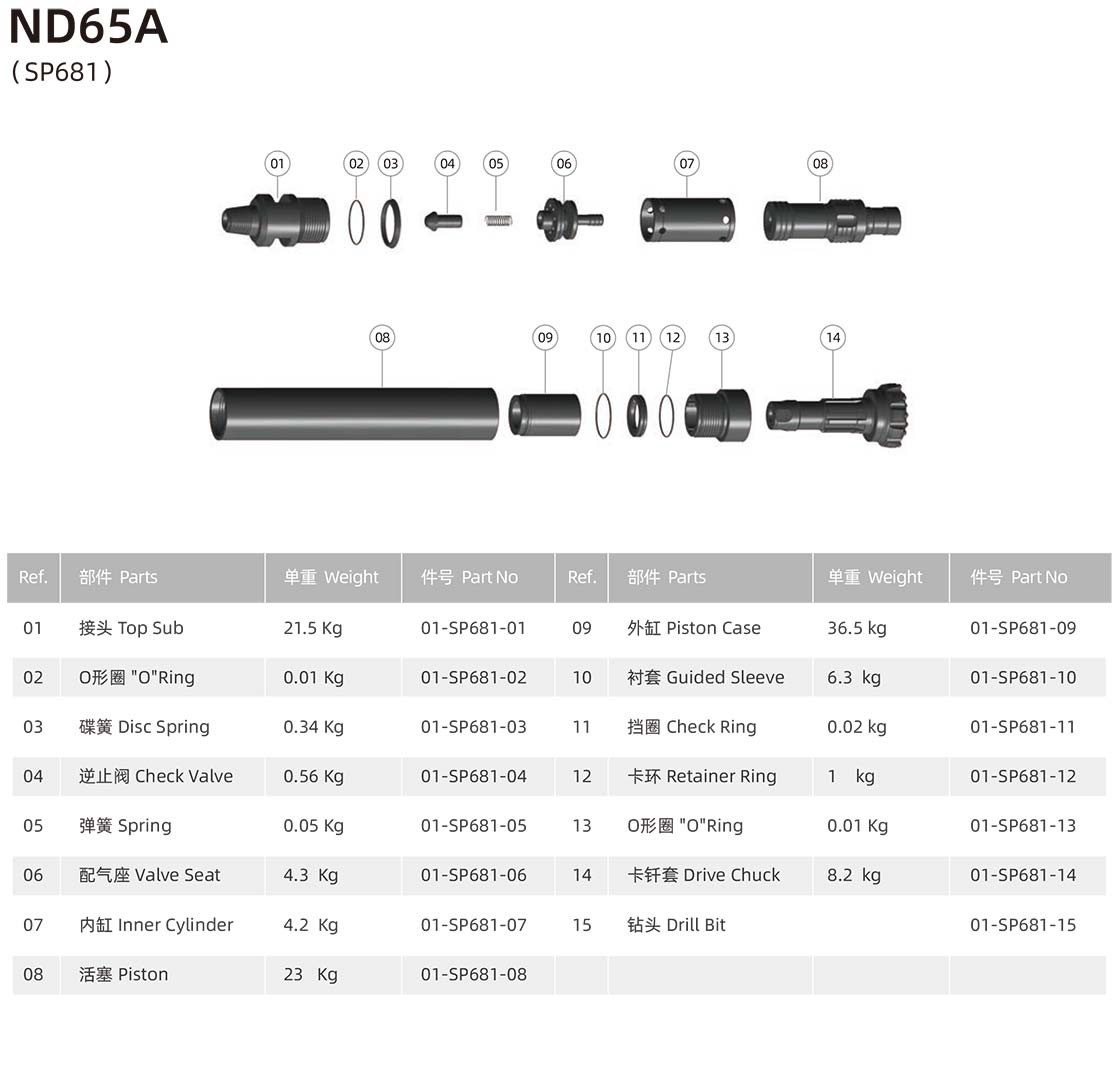

ND65A Hammer
10 sold in last 10 hours
Hurry! Over 17 people have this in their carts
Brand: HND
Quote via Chat Estimated Delivery: Fri, Aug 21 – Wed, Aug 26 (Excl Sat, Sun)
... people are viewing this right now
| Length (Less Bit) | Weight | Outer Diameter | Connection Thread | Bit Shank | Hole Range |
| 1210mm | 106Kg | 148mm | API3 1/2″ REG | ND65A | 158-190mm |
| Working Pressure | Recommended Rotation Speed | Air Consumption at 1.8Mpa | Air Consumption at 2.4Mpa |
| 1.2-2.5 Mpa | 30-60r/min | 16m³/min | 23m³/min |
