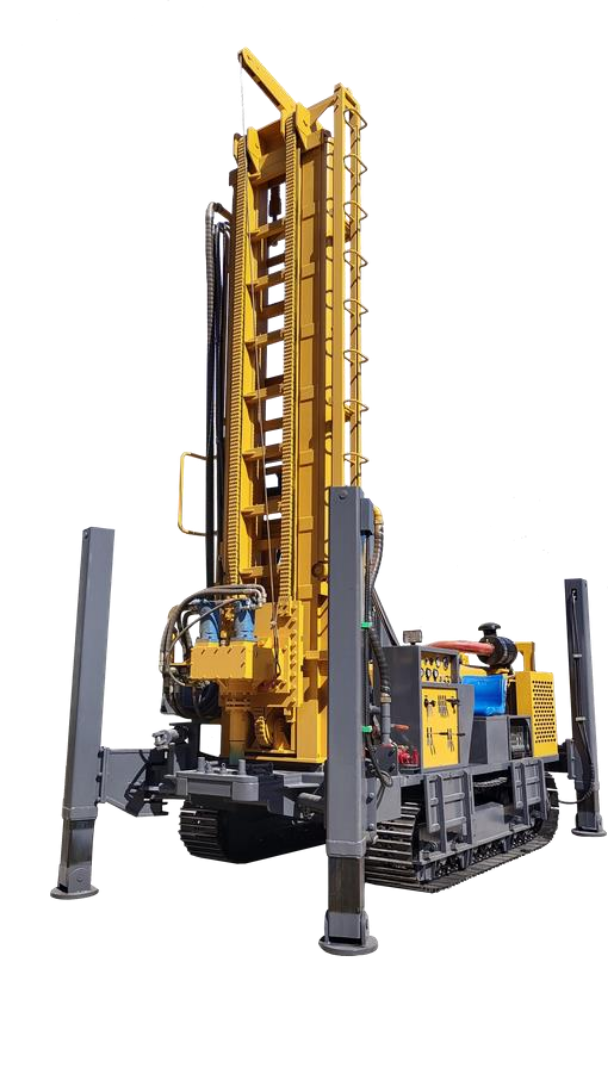

FY700 Full Hydraulic Waterwell Drilling Rig
Product Description
- Drilling Depth: 700 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 28 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–42 m³/min
- Swing Torque: 8,500–11,000 N·m
- Swing Speed: 45–140 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Weight: 9.5 T
- Mounting Options: Crawler / Truck / Skid
- Dimensions: 6200 × 2200 × 2950 mm
The FY700 is a full hydraulic waterwell drilling rig designed for drilling depths of up to 700 metres. It accommodates 140–350 mm hole diameters and provides a 28-tonne lifting force with 118 kW equipped capacity. Its Cummins engine, high swing torque and flexible mounting options make it suitable for demanding waterwell drilling operations.
Related Products
Product Features:
• Accurate, Contamination-Free Samples
The reverse circulation process minimizes sample loss and contamination, delivering precise geological data for informed decision-making.
• High Drilling Efficiency
Designed for rapid penetration rates, RC rigs significantly reduce drilling time and operational costs, making them ideal for large-scale exploration projects.
• Deep Drilling Capability
Capable of reaching substantial depths while maintaining sample integrity, these rigs are suitable for both shallow and deep exploration programs.
• Robust & Durable Construction
Manufactured using high-strength materials, RC rigs can withstand harsh terrains and extreme working conditions, ensuring long-term reliability.
• Versatile Applications
Perfect for mineral exploration, grade control, water borehole drilling, and geotechnical investigations across various ground conditions.
• Easy Operation & Maintenance
User-friendly controls and accessible components simplify operation and reduce downtime during maintenance.
The duplex double acting piston mud pump range is designed to support drilling operations requiring reliable mud circulation. The catalogue provides Models 125, 150, 200 and 250, offering different stroke sizes, line sizes, displacement ranges and maximum pressure capabilities to accommodate different drilling requirements.
Product Description:
- Drilling Depth: 400 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 24 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 18 m/min
- Fast Feeding Speed: 33 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 92 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 5,700–7,500 N·m
- Swing Speed: 66–135 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 8 T
- Mounting Options: Crawler / Truck / Skid
- Dimensions: 6000 × 2000 × 2550 mm
The FY Series are full hydraulic water well drilling rigs designed for reliable and efficient drilling across demanding applications. The range offers drilling depths from 300m to 1,000 m, with hole diameters ranging from 140–400 mm depending on the model. Available drill pipe diameters range from 76–117 mm, while lifting forces range from 12–36 tonnes. The rigs feature equipped capacities from 55–194 kW, working air pressures of 1.7–3.4 MPa, and penetration efficiencies of up to 15–35 m/h on applicable models. Depending on the model, swing torque reaches up to 14,000 N·m. The range is powered by Yuchai or Cummins engines and is available in crawler, skid, or truck-mounted configurations, providing flexibility for different drilling environments and site requirements.
Product Description
- Drilling Depth: 500 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 7,500–10,000 N·m
- Swing Speed: 45–130 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 × 2200 × 2600 mm
Key Features:
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Product Description
- Drilling Depth: 600 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–42 m³/min
- Swing Torque: 7,500–10,000 N·m
- Swing Speed: 45–130 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Truck / Crawler / Skid
- Dimensions: 6150 × 2200 × 2600 mm
Product Description
- Drilling Depth: 200 m
- Hole Diameter: 140–254 mm
- Drill Pipe Diameter: 76/89 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 3.3 m
- Rapid Rise Speed: 30 m/min
- Fast Feeding Speed: 60 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 1.5 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–31 m³/min
- Swing Torque: 3,400–4,700 N·m
- Swing Speed: 45–70 rpm
- Engine: Yuchai
- Weight: 4.7 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 3950 × 1750 × 2250 mm
Product Description
- Drilling Depth: 450 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 25 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 110 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 7,000–9,500 N·m
- Swing Speed: 30–135 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.2 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 × 2200 × 2600 mm
Key Features:
- Mounted on a 4×2 Ashok Leyland 9016 truck
- It features a 45 kVA onboard generator
- 7-ton winch
- Electric control panel
- all accessories for convenient field operations
Product Description
- Drilling Depth: 300 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 76/89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 22 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 5,700–7,500 N·m
- Swing Speed: 40–70 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 8 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 5900 × 1850 × 2200 mm
Product Description
- Drilling Depth: 350 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 89–102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 22 T
- Rapid Rise Speed: 18 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Capacitor: 91 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.4 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 6,200–8,500 N·m
- Swing Speed: 66–135 rpm
- Engine: Yuchai
- Weight: 8.6 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6000 × 2000 × 2550 mm
