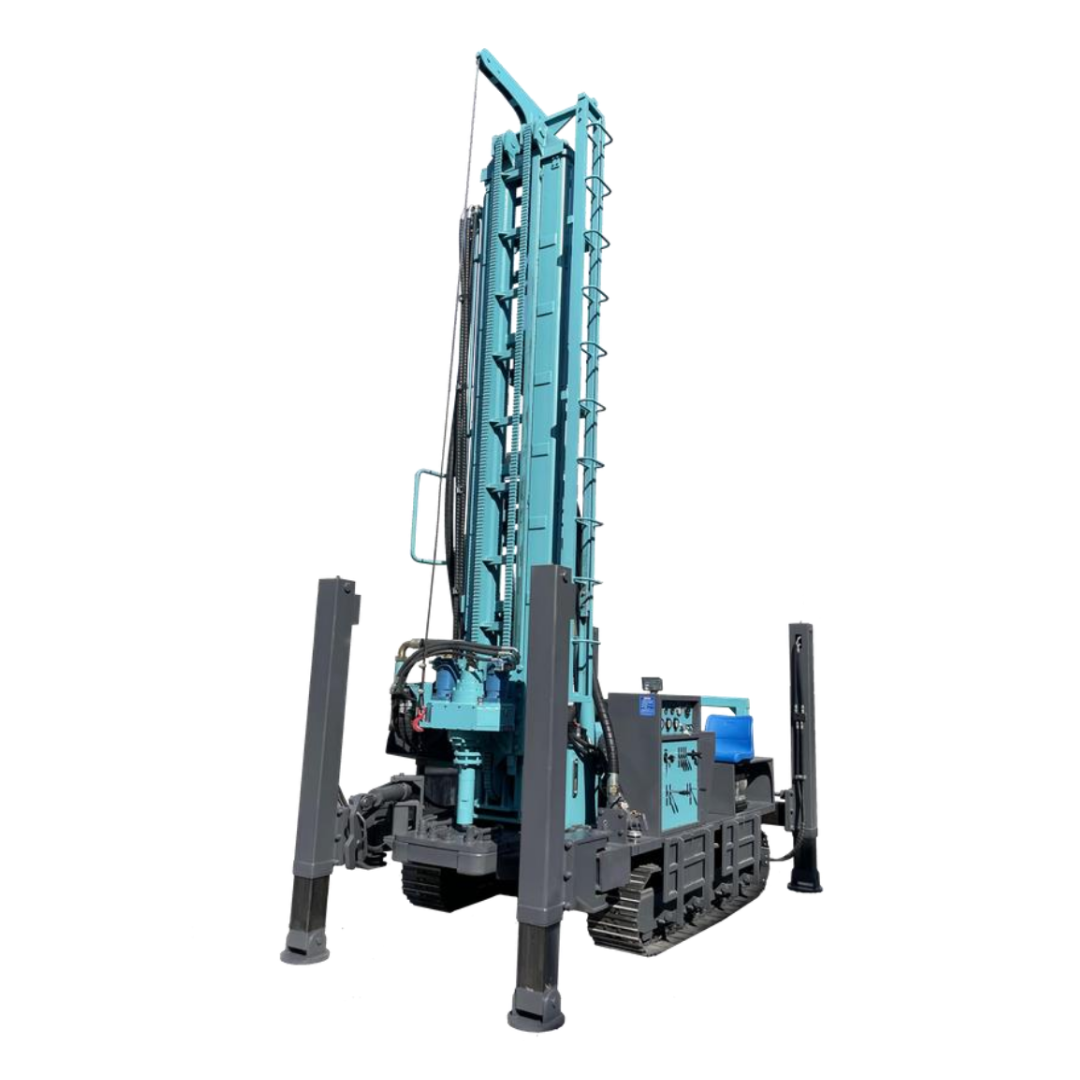

FY SERIES FULL HYDRAULIC WATERWELL DRILLING RIGS
TheĀ FY Series are full hydraulic water well drilling rigs designed for reliable and efficient drilling across demanding applications. The range offers drilling depths from 300m to 1,000 m, with hole diameters ranging from 140ā400 mm depending on the model. Available drill pipe diameters range from 76ā117 mm, while lifting forces range from 12ā36 tonnes. The rigs feature equipped capacities from 55ā194 kW, working air pressures of 1.7ā3.4 MPa, and penetration efficiencies of up to 15ā35 m/h on applicable models. Depending on the model, swing torque reaches up to 14,000 NĀ·m. The range is powered by Yuchai or Cummins engines and is available in crawler, skid, or truck-mounted configurations, providing flexibility for different drilling environments and site requirements.
Ā
Ā
| Depth | FY300A, FY300B, FY350, FY400, FY450, FY500, FY600, FY700, FDX400/FDG40, FY1000 |
|---|
Related Products
The duplex double acting piston mud pump range is designed to support drilling operations requiring reliable mud circulation. The catalogue provides Models 125, 150, 200 and 250, offering different stroke sizes, line sizes, displacement ranges and maximum pressure capabilities to accommodate different drilling requirements.
The FYX Series are full hydraulic water well drilling rigs designed for reliable and efficient drilling across demanding applications. The range offers drilling depths from 180 m and 200 m, with hole diameters ranging from 140ā400 mm depending on the model. Available drill pipe diameters range from 76ā117 mm, while lifting forces range from 12ā36 tonnes. The rigs feature equipped capacities from 55ā194 kW, working air pressures of 1.7ā3.4 MPa, and penetration efficiencies of up to 15ā35 m/h on applicable models. Depending on the model, swing torque reaches up to 14,000 NĀ·m. The range is powered by Yuchai or Cummins engines and is available in crawler, skid, or truck-mounted configurations, providing flexibility for different drilling environments and site requirements.
Ā
Ā
Ā
Ā
Ā

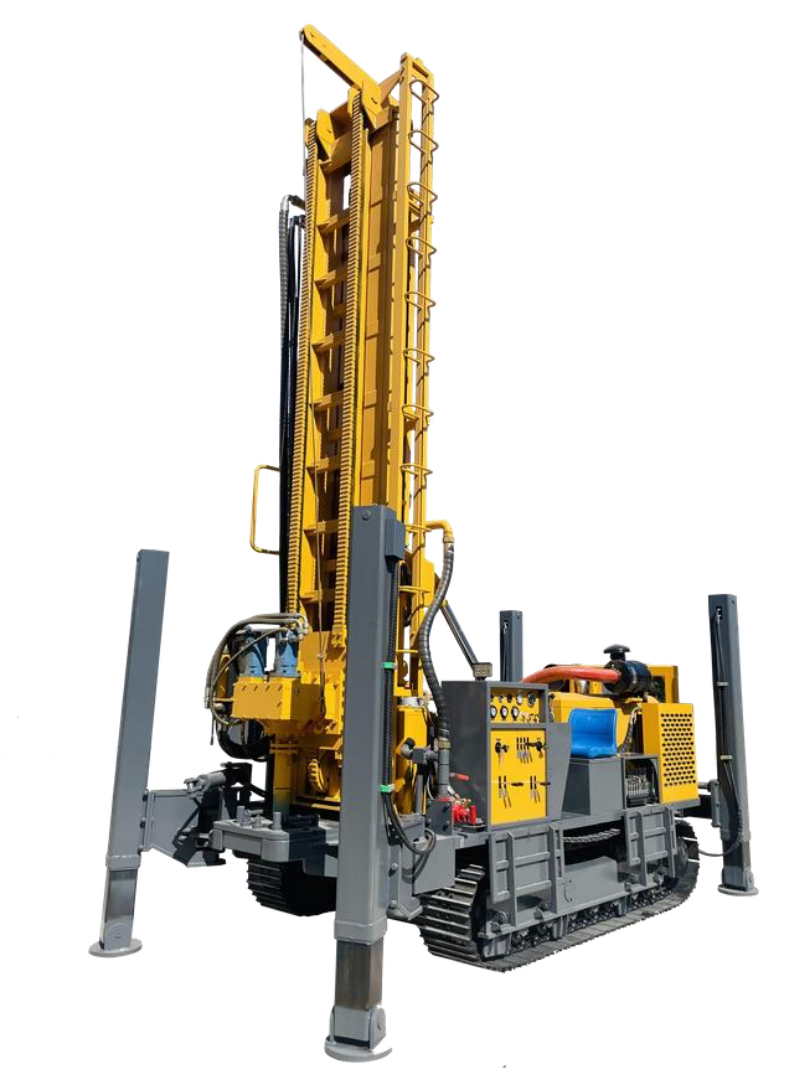

Product Description
- Drilling Depth: 500 m
- Hole Diameter: 140ā350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā36 mĀ³/min
- Swing Torque: 7,500ā10,000 NĀ·m
- Swing Speed: 45ā130 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 Ć 2200 Ć 2600 mm
Ā
The MD40 is a compact, track-mounted drilling rig designed for shallow geotechnical drilling applications, particularly in confined and difficult-to-access locations.
With a compact width of just 1.6 meters, the rig offers excellent maneuverability and can operate efficiently in areas with limited space.
The MD40 can accommodate either 3-metre or 1.5-metre drill rods, providing flexibility for different drilling requirements.
Depending on project conditions and customer preferences, it can be configured with a 4-speed rotation head or a dual-motor system to deliver optimal drilling performance.
Fully customizable to suit specific operational needs, the MD40 provides an economical, versatile, and efficient solution for shallow drilling projects where precision, flexibility, and accessibility are essential.
Ā
Ā

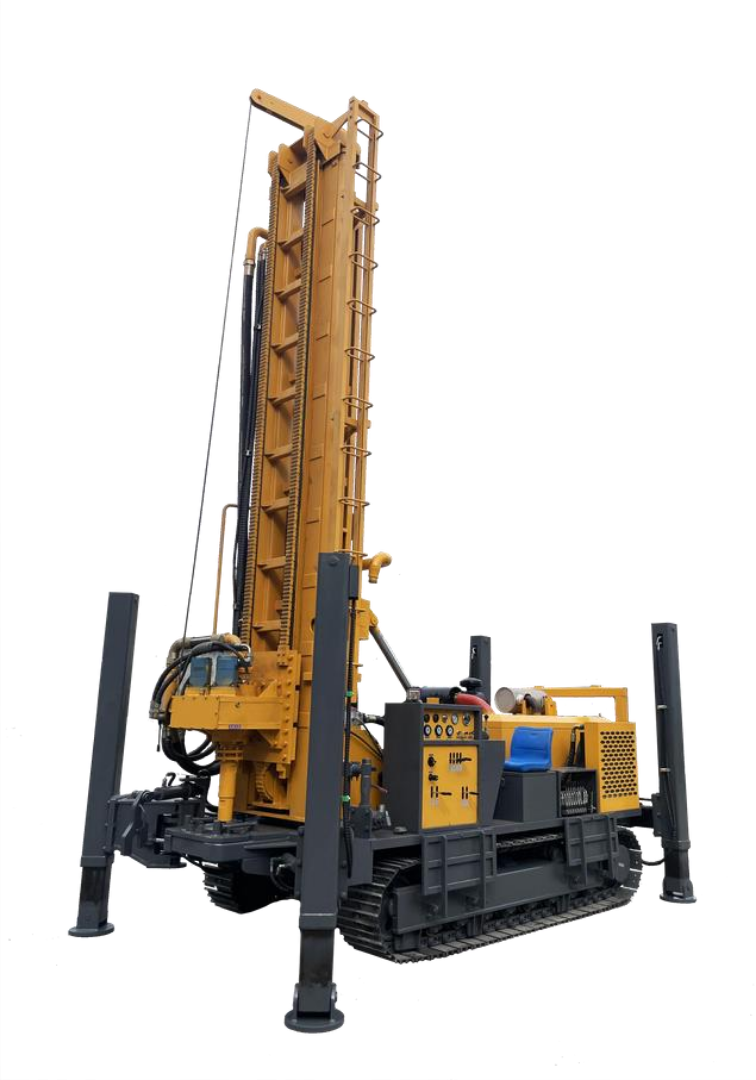

Ā Product Description
- Drilling Depth: 800 m
- Hole Diameter: 140ā400 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 28 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 153 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā42 mĀ³/min
- Swing Torque: 8,850ā13,150 NĀ·m
- Swing Speed: 45ā140 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Cummins
- Weight: 12 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6300 Ć 2300 Ć 2950 mm
Ā

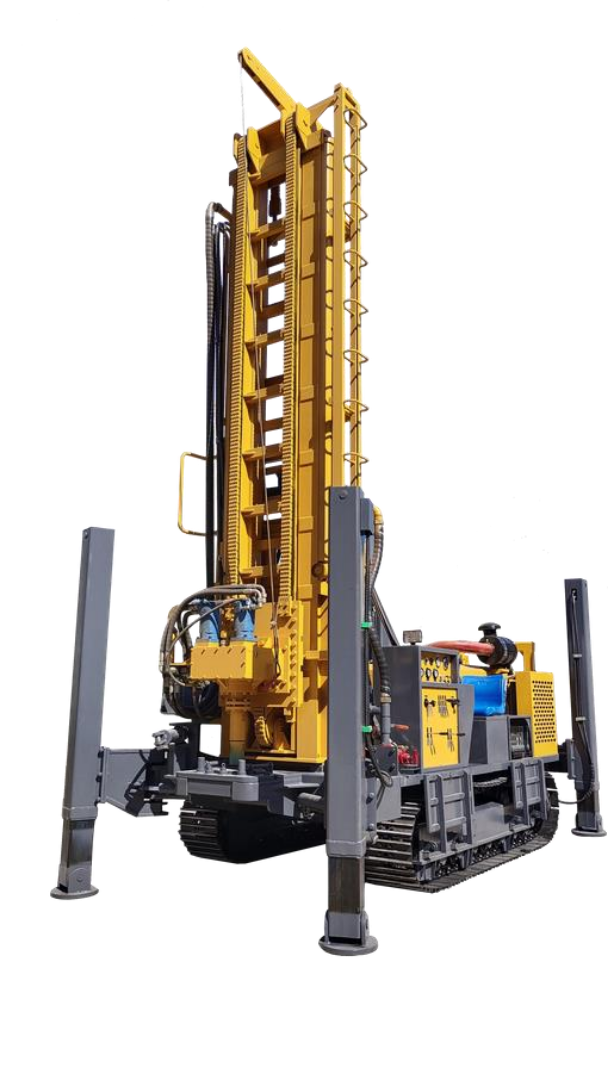

Product Description
- Drilling Depth: 350 m
- Hole Diameter: 140ā325 mm
- Drill Pipe Diameter: 89ā102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 22 T
- Rapid Rise Speed: 18 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Capacitor: 91 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.4 MPa
- Air Consumption: 17ā36 mĀ³/min
- Swing Torque: 6,200ā8,500 NĀ·m
- Swing Speed: 66ā135 rpm
- Engine: Yuchai
- Weight: 8.6 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6000 Ć 2000 Ć 2550 mm
Ā
Ā

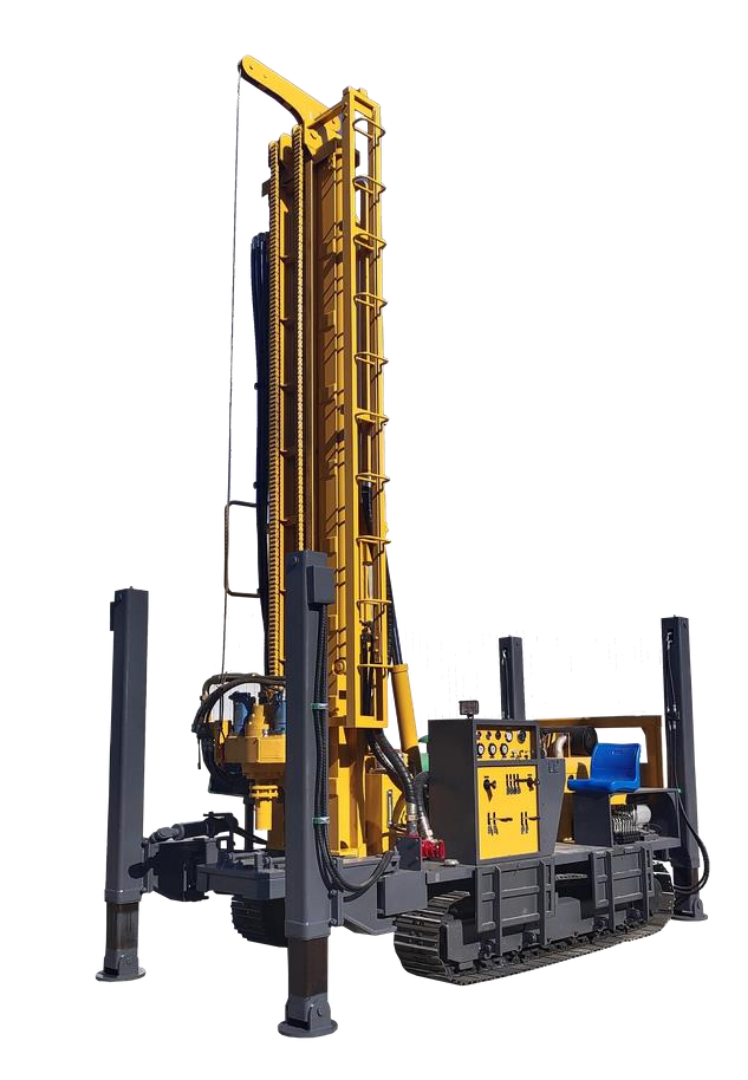

Product Description
- Drilling Depth: 600 m
- Hole Diameter: 140ā350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā42 mĀ³/min
- Swing Torque: 7,500ā10,000 NĀ·m
- Swing Speed: 45ā130 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Truck / Crawler / Skid
- Dimensions: 6150 Ć 2200 Ć 2600 mm
Ā
Ā Product Description
- Drilling Depth: 1,000 m
- Hole Diameter: 140ā400 mm
- Drill Pipe Diameter: 102/108/114/117 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 36 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 194 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā42 mĀ³/min
- Swing Torque: 9,000ā14,000 NĀ·m
- Swing Speed: 45ā140 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Cummins
- Weight: 13 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6300 Ć 2300 Ć 2950 mm
Ā
The centrifugal mud pump is designed for drilling applications requiring efficient mud circulation. It provides a discharge capacity of 600 LPM and is powered by a 10 HP Yanmar engine. The pump features a suction size range of 65–75 mm.
Ā
Product Description
- Drilling Depth: 300 m
- Hole Diameter: 140ā325 mm
- Drill Pipe Diameter: 76/89 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 3.3 m
- Rapid Rise Speed: 22 m/min
- Fast Feeding Speed: 22 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā36 mĀ³/min
- Swing Torque: 5,700ā7,500 NĀ·m
- Swing Speed: 40ā70 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Yuchai
- Weight: 6.8 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 4100 Ć 2000 Ć 2260 mm
Ā
Ā
Ā
Product Description
- Drilling Depth: 450 m
- Hole Diameter: 140ā350 mm
- Drill Pipe Diameter: 89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 25 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 110 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā36 mĀ³/min
- Swing Torque: 7,000ā9,500 NĀ·m
- Swing Speed: 30ā135 rpm
- Penetration Efficiency: 15ā35 m/h
- Engine: Yuchai
- Weight: 9.2 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 Ć 2200 Ć 2600 mm
Ā
Ā
Ā
Product Description:
- Drilling Depth: 180 m
- Hole Diameter: 140ā254 mm
- Drill Pipe Diameter: 76/89 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 m
- Lifting Force: 12 T
- One-Time Advance Length: 3.3 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30Ā°
- Equipped Capacity: 55 kW
- Working Air Pressure: 1.7ā3.0 MPa
- Air Consumption: 17ā31 mĀ³/min
- Swing Torque: 3,200ā4,200 NĀ·m
- Swing Speed: 45ā70 rpm
- Penetration Efficiency: 10ā35 m/h
- Engine: Yuchai
- Weight: 4.5 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 3950 Ć 1630 Ć 2250 mm
