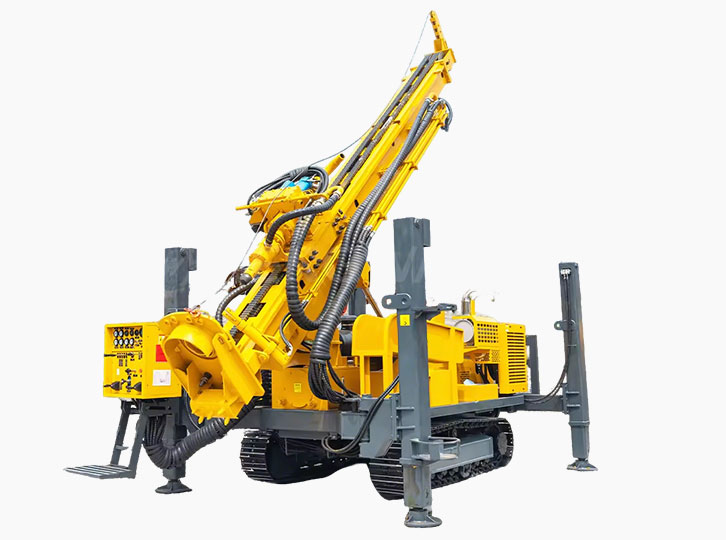

Reverse Circulation Drilling Rigs
- (¥) CNY
- (UShs) UGX
- ($) USD
Product Features:
• Accurate, Contamination-Free Samples
The reverse circulation process minimizes sample loss and contamination, delivering precise geological data for informed decision-making.
• High Drilling Efficiency
Designed for rapid penetration rates, RC rigs significantly reduce drilling time and operational costs, making them ideal for large-scale exploration projects.
• Deep Drilling Capability
Capable of reaching substantial depths while maintaining sample integrity, these rigs are suitable for both shallow and deep exploration programs.
• Robust & Durable Construction
Manufactured using high-strength materials, RC rigs can withstand harsh terrains and extreme working conditions, ensuring long-term reliability.
• Versatile Applications
Perfect for mineral exploration, grade control, water borehole drilling, and geotechnical investigations across various ground conditions.
• Easy Operation & Maintenance
User-friendly controls and accessible components simplify operation and reduce downtime during maintenance.
Reverse Circulation (RC) drilling rigs are engineered for fast, efficient, and accurate sample collection in mining, exploration, and geotechnical applications. Built to deliver high productivity in demanding environments, RC rigs are the preferred choice for professionals who require reliable data and consistent performance. RC drilling uses a dual-wall drill pipe system where compressed air is injected between the pipes, forcing cuttings to travel up through the inner tube to the surface. This method ensures uncontaminated, high-quality samples ideal for mineral exploration and grade control.
Related Products
Application: Surface Exploration
Drill Rod Size: PO/ HQ/ NQ
Max Depth: PQ 400 m; HQ= 600 m; NQ=1000 m
Prime Mover: 256 HP
Rotary Head: Torque: 825-5172 Nm
Speed: 110-1200 rpm
Rod Handling: 3 m rod handling
Pull Up: 12000 kgf
Pull Down: 8000 kgf
Water Pump: Displacement of 165 lpm with 50 Bar
SPT: Automatic SPT Hammer (Optional)
Key Specifications
- BTW Drilling Capability: 1,000 m
- NTW Drilling Capability: 800 m
- HTW Drilling Capability: 600 m
- Maximum Powerhead Torque: 2,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 20 T
- Propulsive Force: 10 T
- Engine: Yuchai 92 kW, six-cylinder
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 7.5 T
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Key Features:
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Rubber-track crawler
- Operating Weight: 5.7 T
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 6.2 T
Rig Features:
- 2021 PRD Speedstar drilling rig
- Mounted on Ashok Leyland 2518 6*4 truck
- Maximum drilling depth of 363 meters
- ELGI (21Bar) Compressor
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
Key Specifications
- BTW Drilling Capability: 1,400 m
- NTW Drilling Capability: 1,200 m
- HTW Drilling Capability: 1,000 m
- Maximum Powerhead Torque: 3,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 26 T
- Propulsive Force: 12 T
- Engine: 132 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 9
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
The FY Series are full hydraulic water well drilling rigs designed for reliable performance across demanding drilling applications. With drilling depths from 300–1,000 m and hole diameters up to 400 mm, the range offers lifting forces of 12–36 tonnes and engine capacities of 55–194 kW. Available in crawler, skid, or truck-mounted configurations, with Yuchai or Cummins engines, the FY Series provides flexible solutions for different drilling environments and project requirements.
