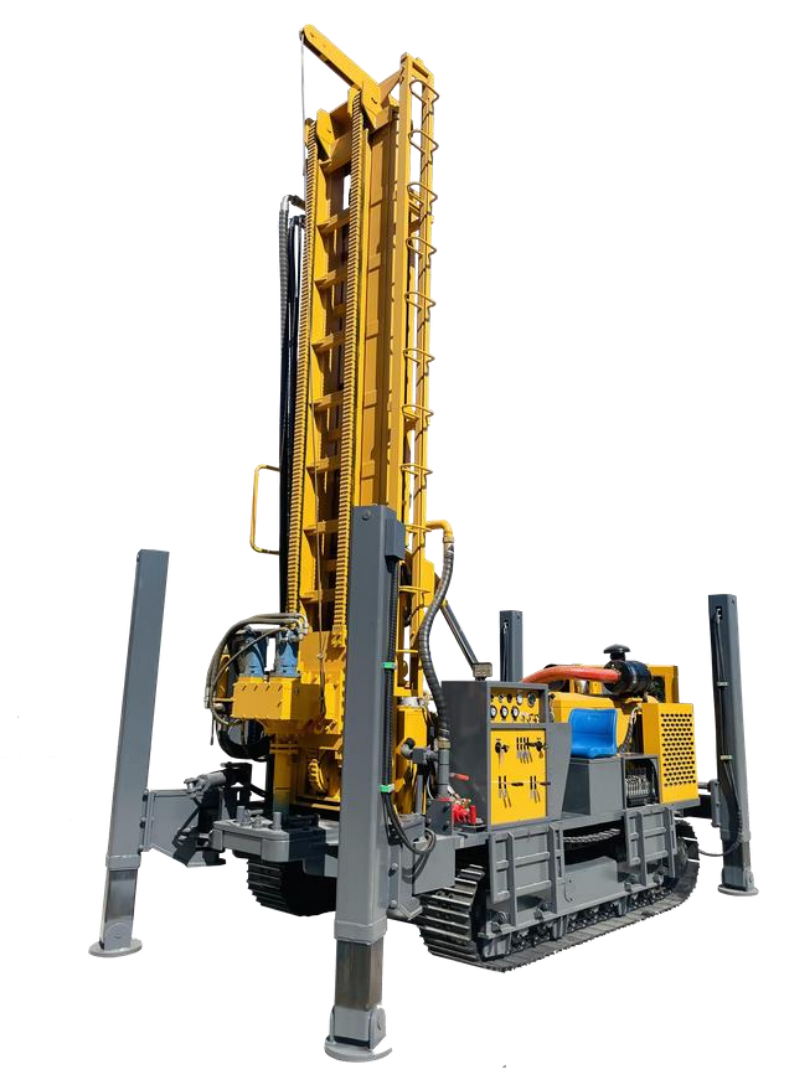

FDX400 / FDG400 Full Hydraulic Waterwell Drilling Rig
Product Description
- Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 28 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 153 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–42 m³/min
- Swing Torque: 8,850–13,150 N·m
- Swing Speed: 45–140 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Weight: 12 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6300 × 2300 × 2950 mm
The FDX400/FDG400 is a full hydraulic waterwell drilling rig with a maximum drilling depth of 800 metres and hole diameter capacity of 140–400 mm. It features a 28-tonne lifting force, 153 kW equipped capacity and swing torque of 8,850–13,150 N·m. Powered by a Cummins engine and available in crawler, skid or truck configurations, it is designed for demanding drilling applications.
