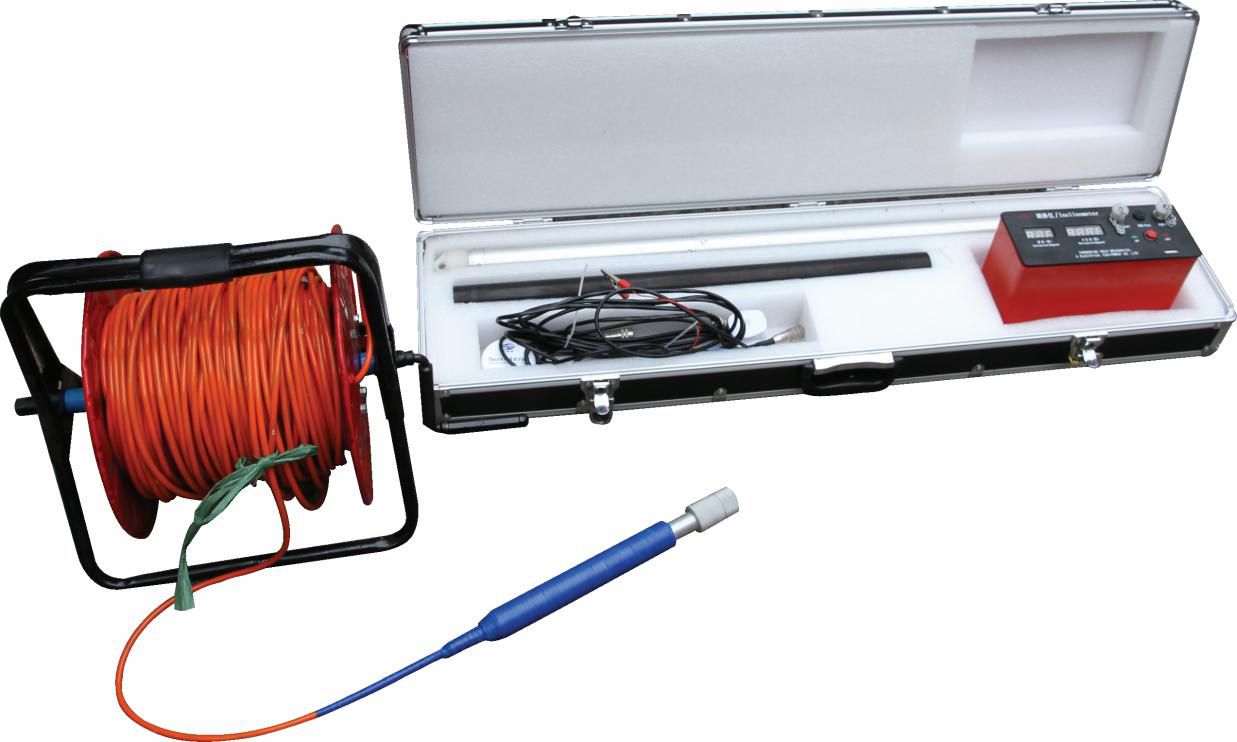

GDQ-2D DIGITAL INCLINOMETER
- (¥) CNY
- (UShs) UGX
- ($) USD
Product Features:
- Digital Accuracy – captures real-time inclination and azimuth readings with high resolution and stability.
- Non-magnetic compatibility – Ideal for use in formations where magnetic interference compromises traditional compass-based tools.
- Portable and Field ready – Lightweight, rugged design with intuitive interface for rapid deployment in remote or challenging terrain.
- Multi-drilling adaptability – suitable for hydrological, geothermal, mineral exploration, and geotechnical boreholes.
- Data Logging and transfer – Integrated memory and USB connectivity for seamless data export and post-processing.
This is a compact, high precision instrument designed to measure borehole inclination (vertex) and azimuth in geological drilling environments.
It delivers reliable orientation data critical for directional control, structural mapping, and resource targeting
Related Products
Product Features:
- High resolution sensors for resistivity, seismic, IP, and magnetic measurements.
- Borehole cameras and loggers for visual inspection and structural analysis
- Modular design compatible with various probe types and depths
- Rugged construction for field reliability in harsh environments
- Intuitive design software for data visualization, interpretation, and reporting
Product Features:
- Accurate Depth Measurement: Provides quick and precise readings of water depth with a standard resolution of 0.5 mm.
- Audible Signal: Emits a clear tone when the probe contacts water, making detection easy even in noisy environments.
- Durable Tape: Uses a flat, high-tensile, non-stretch tape with clear depth markings for long-term reliability.
- Battery Operated: Lightweight and portable, ideal for field use without the need for external power.
- Multiple Length Options: Available in lengths ranging from 100 meters to 1000 meters, suitable for shallow and deep wells
Technical Description
Accuracy: Ruler Tape mm
Material: Metal frame OR Plastic
Tape: Polyethylene coated stainlessProbe Stainless steel
Power: 9-volt alkaline battery
Alarm: 5 kHz output tone
Storage Temperature: 32°-140F(0°-60°C)
Operating Temperature: 40°-150F(-10-60
Response Time: < 10 milliseconds
Product Features:
- Panoramic borehole imaging that captures continuous, full circumferences images of the borehole walls revealing bedding planes, fractures, lithological contacts, and structural features with exceptional details.
- Digital video and still capture offering both real time video streaming and high-resolution still image recording for post analysis and reporting.
- Depth-synchronized logging that authentically correlates image data with precise depth measurements for accurate geological interpretation.
- Robust downhole camera suited for high temperature, high pressure, and corrosion.
Technical Sheet
- Imaging Chip: 1/3” color CCD, sensitivity 0.1Lux.
- Display: LCD, 12 inches, resolution 1024*768.
- Lens: Manually fine-tune the focus; the lens is 360 degrees horizontally, tilted 180 degrees to rotate, freely controlled and can stay in any position.
- Illumination Unit: front LED patch lamp beads, the brightness of the light source is adjustable in 8 levels.
Measurement Depth: 300M, 400M, 500M, 600M, 800M, 1000M - Storage Unit: U Disk.
- Probe: Panorama/ rotation can be replaced at will, 40-120mm.
- Working Voltage: AC 220V50Hz.
- The tensile strength of the cable is 250kg.
- The maximum pressure of the probe is not less than 15Mpa.
Key Features
- Wireless and Bluetooth connectivity – enables seamless data transmission and real-time monitoring without cumbersome cables, enhancing field efficiency and safety.
- 3D orientation sensing – equipped with three magnetometers and three accelerometers for full spatial awareness and high-resolution directional data.
- Magnetic multi-shot surveying – captures multiple orientation points in a single run, ideal for complex borehole trajectories.
- High precision and stability – it is engineered for consistent performance in non-magnetic and weak magnetic formations, minimizing distortion and drift.
- Portable and user-friendly – It has a compact design and an intuitive interface suitable for varied field conditions and rapid deployment.
Product Features
• High-accuracy polyethylene-coated steel tape with millimeter graduations
• Durable stainless-steel water-sensing probe
• Audible buzzer and LED light indication upon water contact
• Adjustable sensitivity control for varying water conductivity
• Portable hand-reel design for easy field deployment
• Replaceable 9V battery power supply
• Fast response time for efficient measurements
• Suitable for wells, boreholes, standpipes, and groundwater monitoring installations
• Available in multiple tape lengths: 100m, 150m, 200m, 300m, 400m, and 500m
Product Features:
- Multi-shot surveying – captures multiple orientation points in a single run, enabling detailed trajectory mapping deviation analysis.
