GYGD-IV Rotary Borehole Inspection Cameras
Price range: KShs 921,200.00 through KShs 1,162,000.00
Technical Sheet
- Imaging Chip: 1/3” color CCD, sensitivity 0.1Lux.

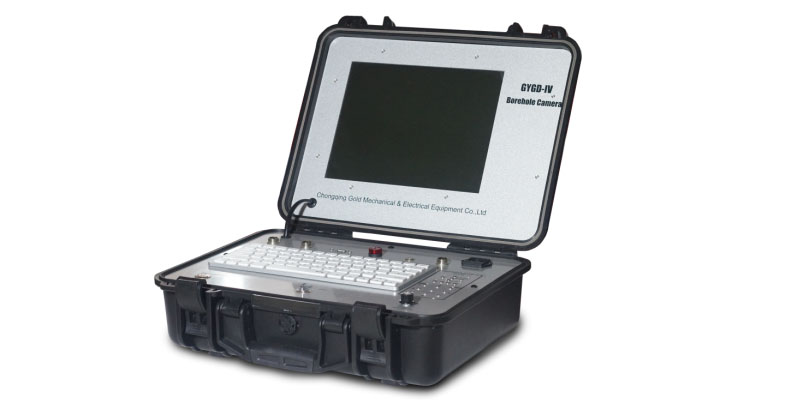

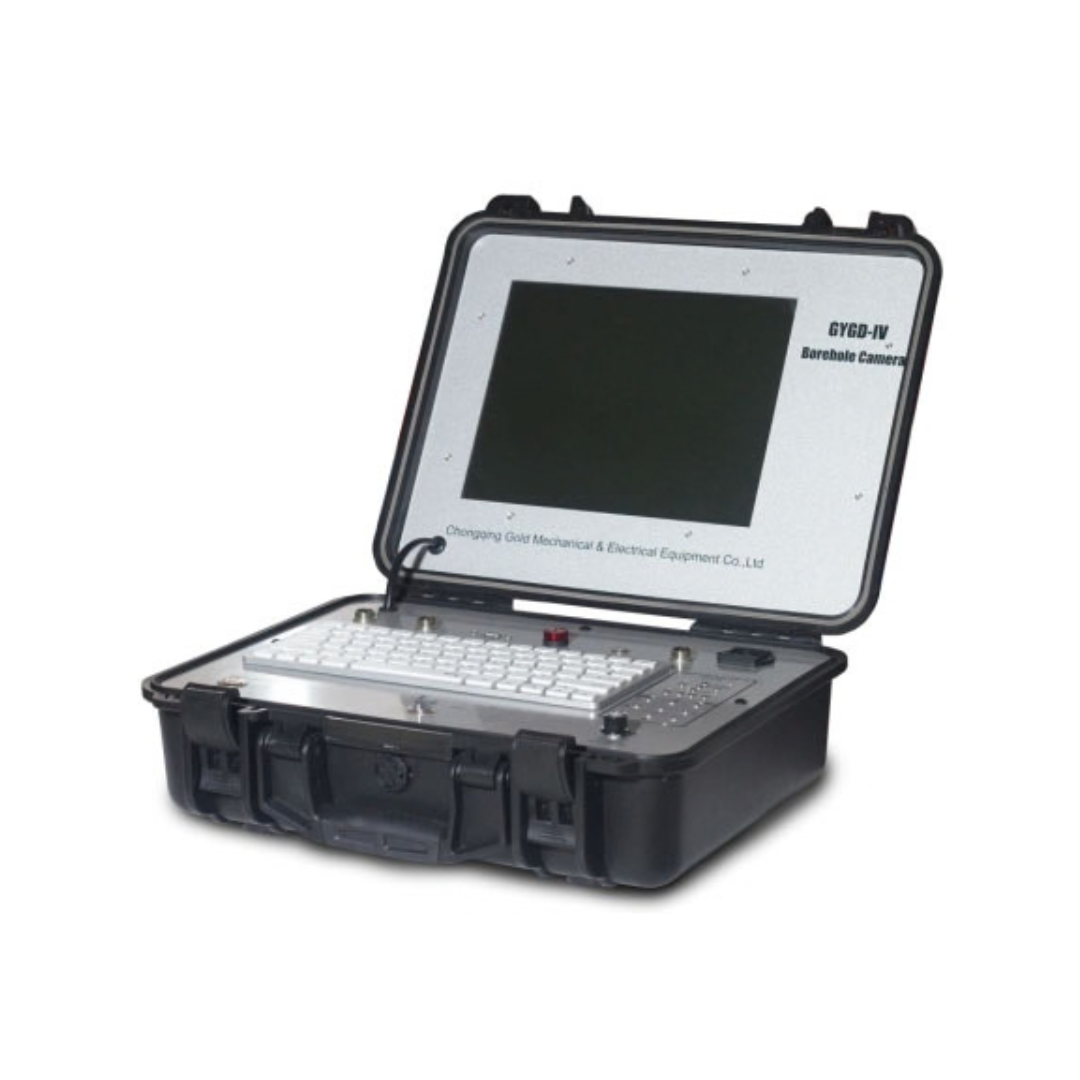

- Display: LCD, 12 inches, resolution 1024*768.

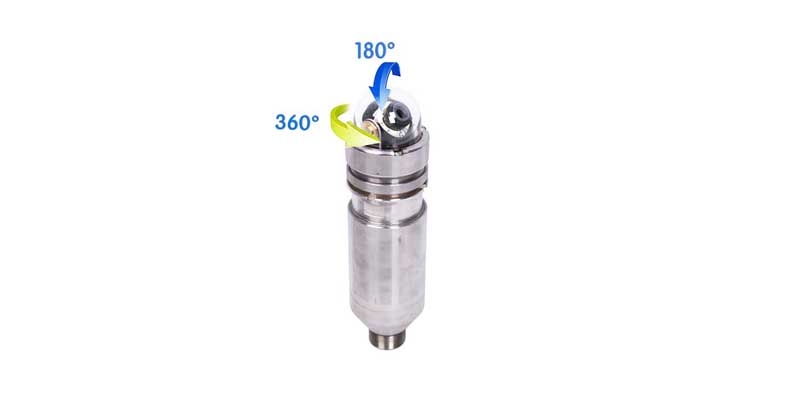

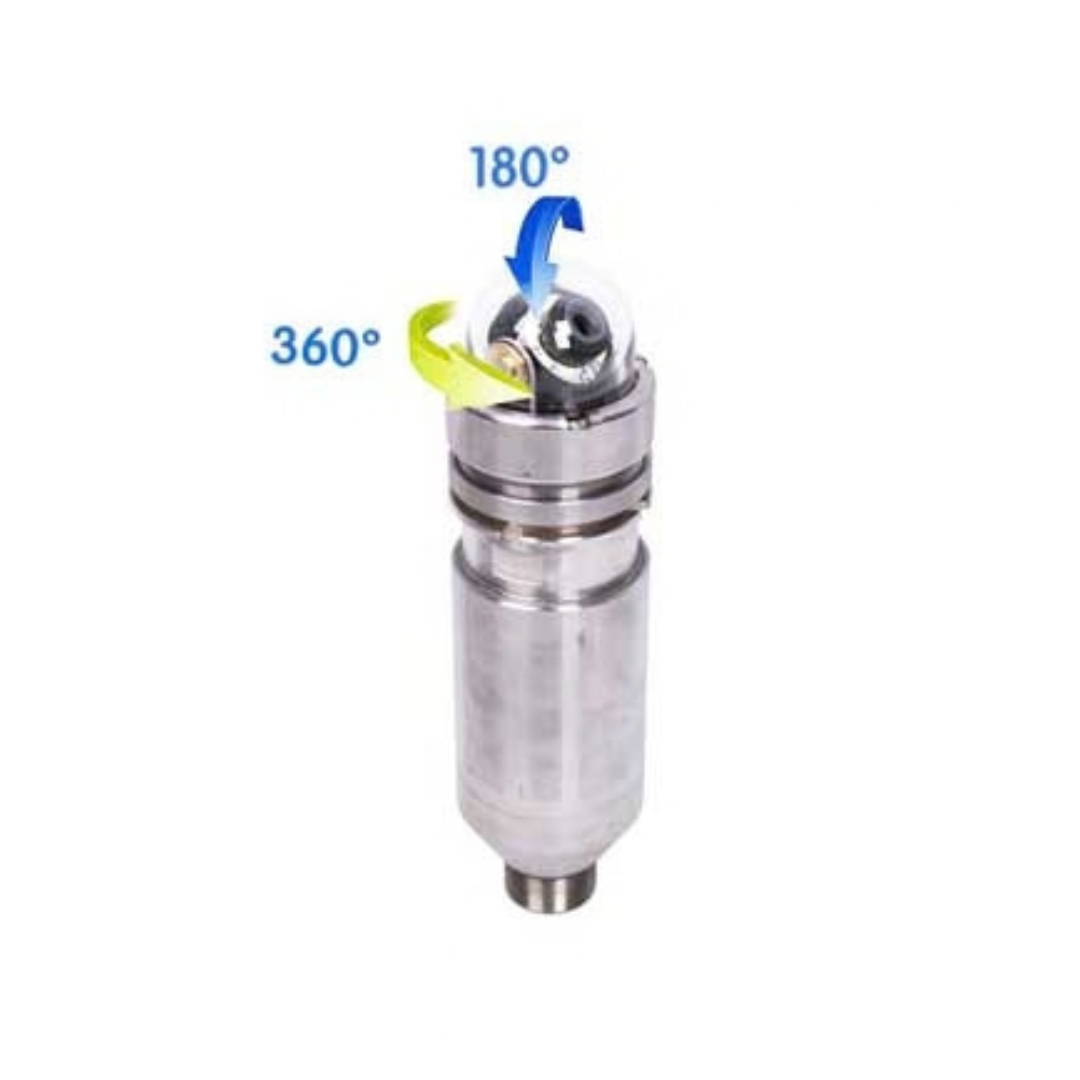

- Lens: Manually fine-tune the focus; the lens is 360 degrees horizontally, tilted 180 degrees to rotate, freely controlled and can stay in any position.
- Illumination Unit: front LED patch lamp beads, the brightness of the light source is adjustable in 8 levels.
Measurement Depth: 300M, 400M, 500M, 600M, 800M, 1000M - Storage Unit: U Disk.
- Probe: Panorama/ rotation can be replaced at will, 40-120mm.
- Working Voltage: AC 220V50Hz.
- The tensile strength of the cable is 250kg.
- The maximum pressure of the probe is not less than 15Mpa.

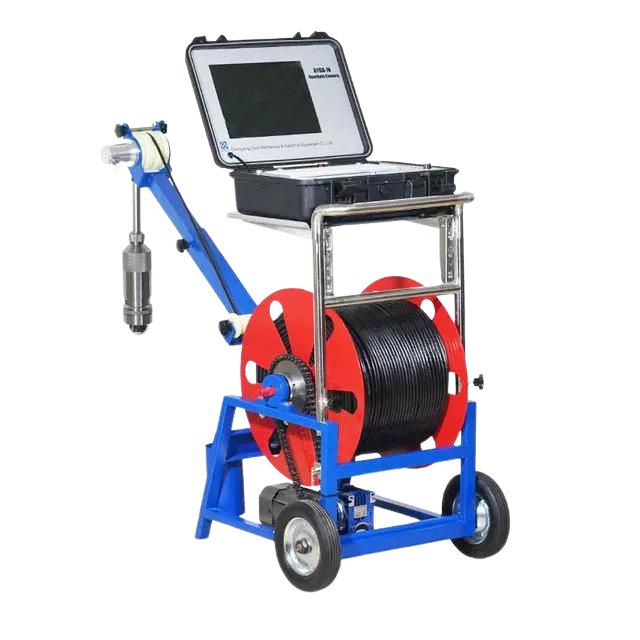

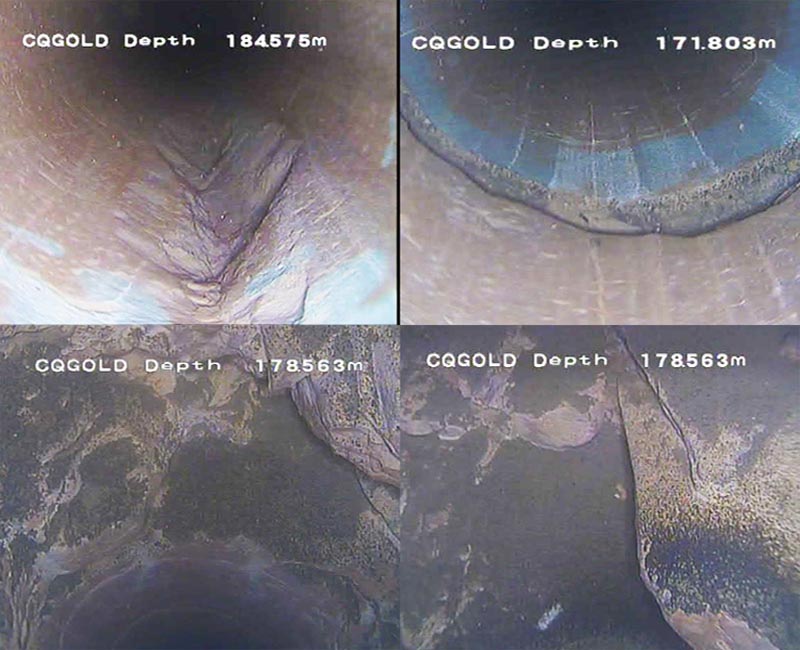

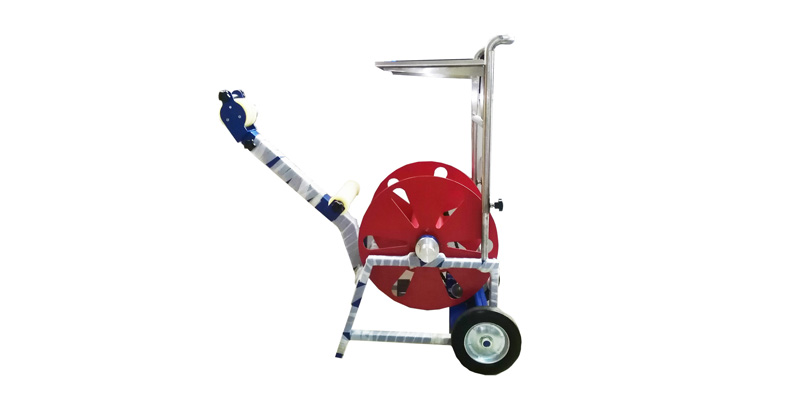

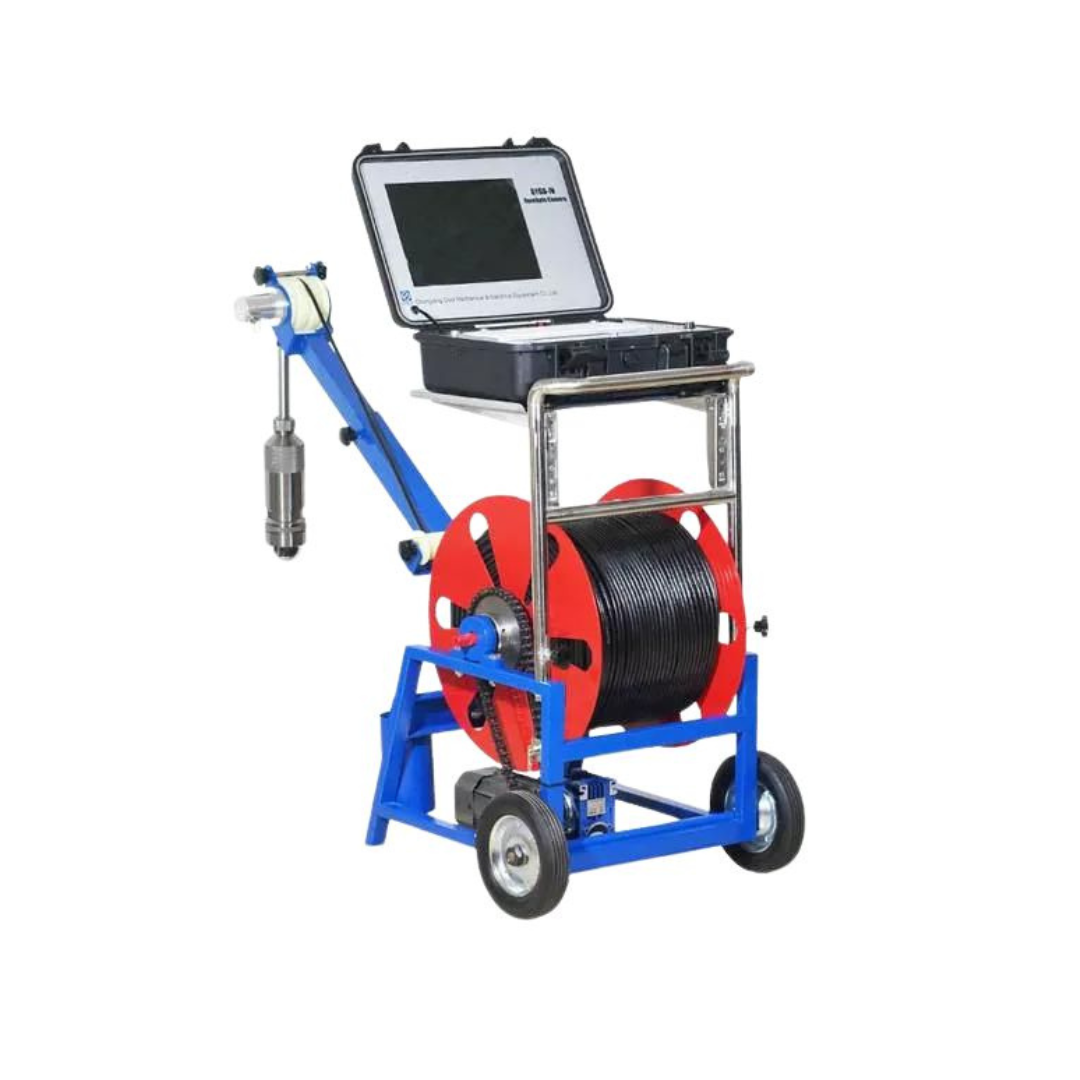

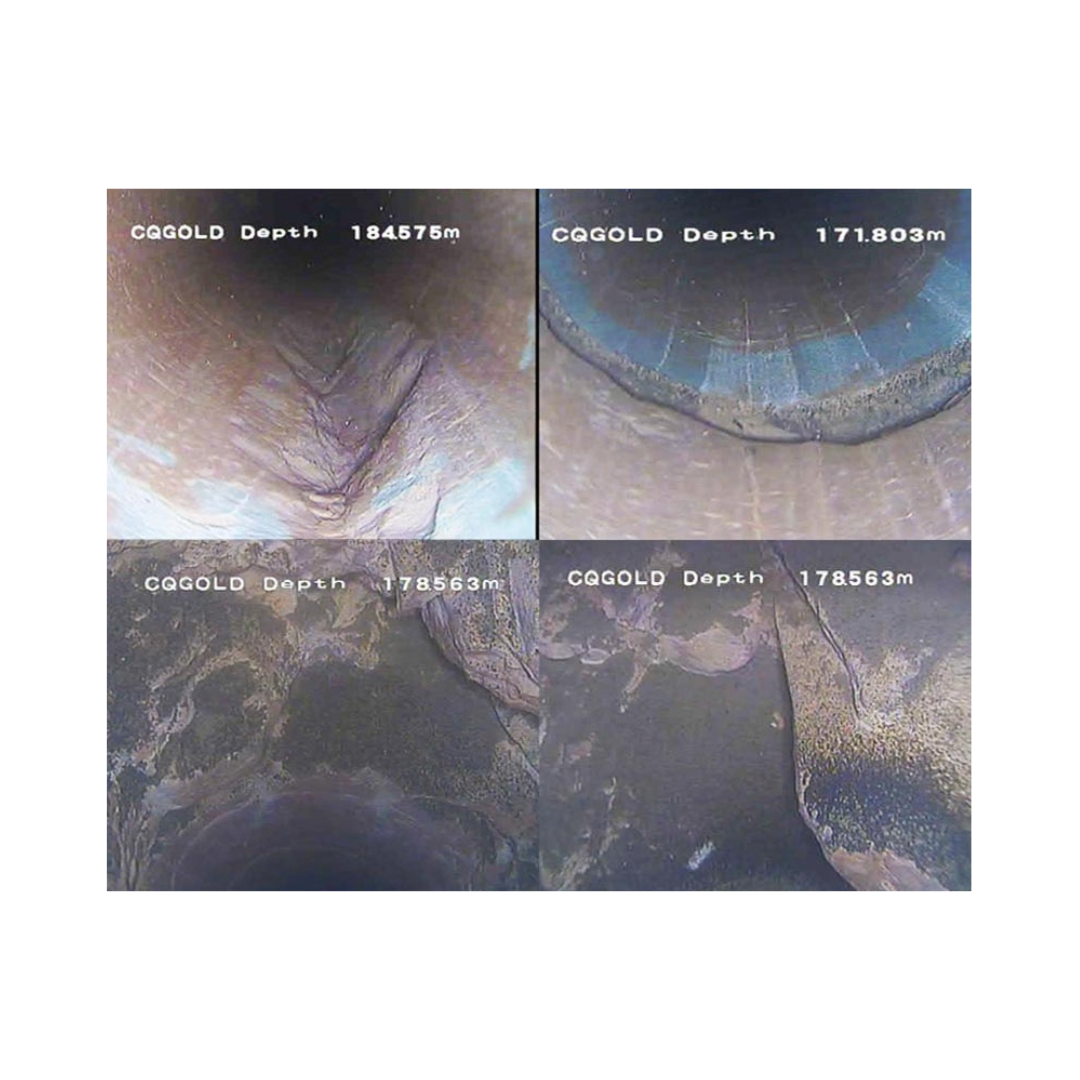

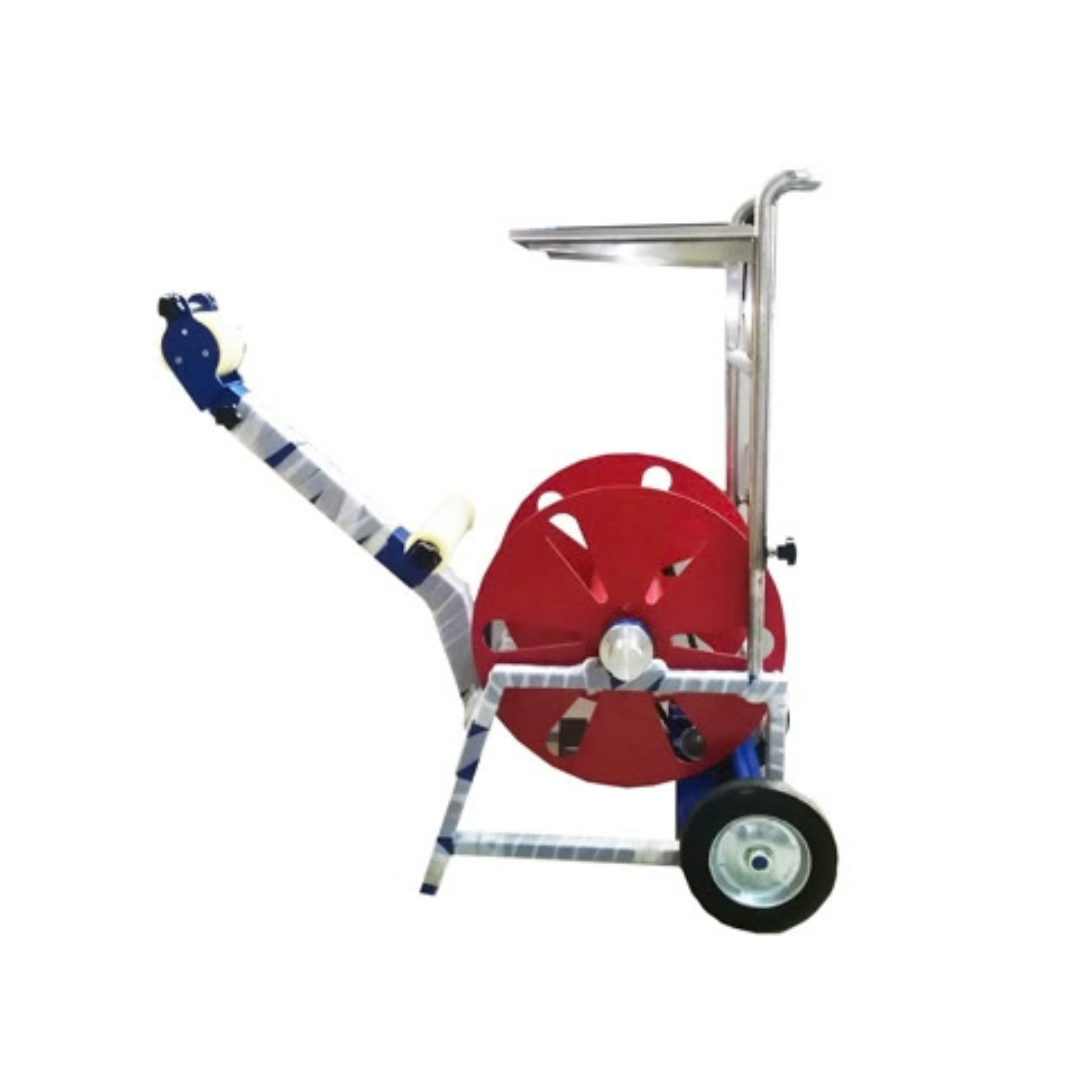

GYGD-IV 360 Rotary Borehole Inspection Camera is a new model deep well camera with a 12-inch screen, 32G USB storage and keyboard input. This borehole camera can see both down view and lateral view at same time. It is integrated with the functions of borehole photographing, video recording and text input. It can be used to obtain borehole dynamic video and high-definition photos simultaneously, and it also has 8 times digital magnification function. It uses a low power embedded dual core processor. The camera system includes a monitor, an electrical winch, and a downhole camera probe.
Available in 300M, 400M, 500M, 600M, 800M, 1000M
| Rotary Depth | 300M, 400M, 500M, 600M |
|---|
