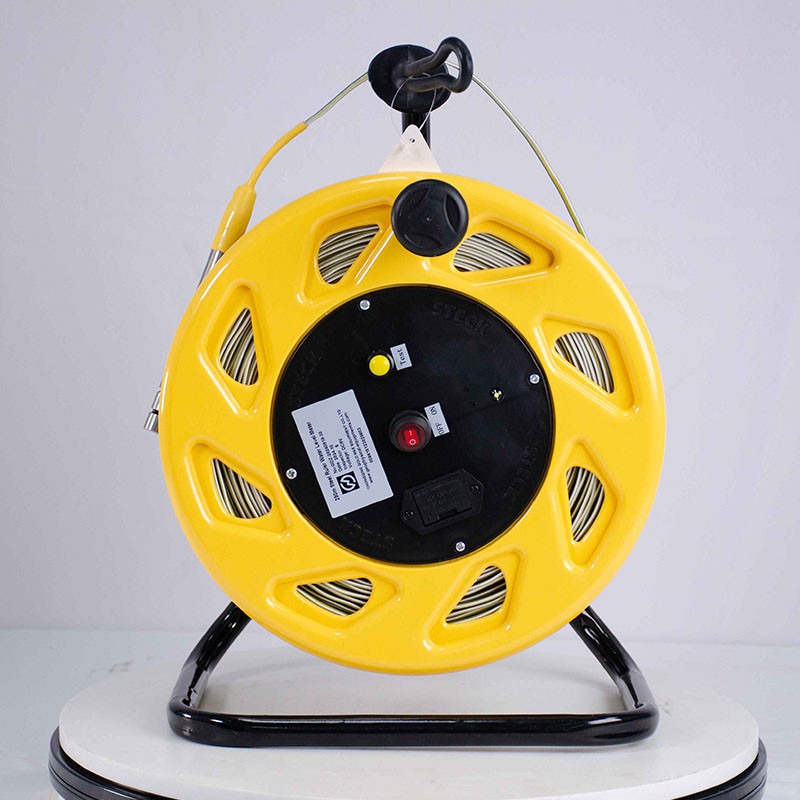

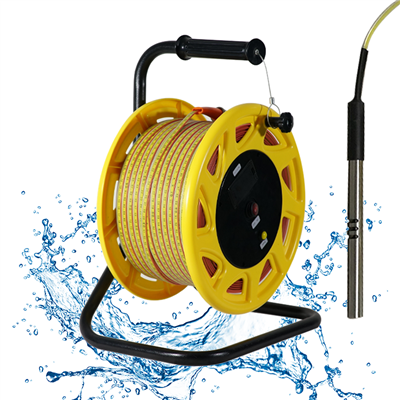

ADM-GDS Water Level Meters
Product Features:
- Accurate Depth Measurement: Provides quick and precise readings of water depth with a standard resolution of 0.5 mm.
- Audible Signal: Emits a clear tone when the probe contacts water, making detection easy even in noisy environments.
- Durable Tape: Uses a flat, high-tensile, non-stretch tape with clear depth markings for long-term reliability.
- Battery Operated: Lightweight and portable, ideal for field use without the need for external power.
- Multiple Length Options: Available in lengths ranging from 100 meters to 1000 meters, suitable for shallow and deep wells
The ADM-GDS Water Level Meters are reliable and user-friendly instruments designed for accurately measuring groundwater levels in standpipes, boreholes, and wells. They are known for precision and durability.
Related Products
Product Features
• High-accuracy polyethylene-coated steel tape with millimeter graduations
• Durable stainless-steel water-sensing probe
• Audible buzzer and LED light indication upon water contact
• Adjustable sensitivity control for varying water conductivity
• Portable hand-reel design for easy field deployment
• Replaceable 9V battery power supply
• Fast response time for efficient measurements
• Suitable for wells, boreholes, standpipes, and groundwater monitoring installations
• Available in multiple tape lengths: 100m, 150m, 200m, 300m, 400m, and 500m
Technical Description
Accuracy: Ruler Tape mm
Material: Metal frame OR Plastic
Tape: Polyethylene coated stainlessProbe Stainless steel

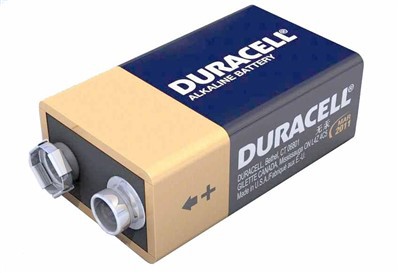

Power: 9-volt alkaline battery
Alarm: 5 kHz output tone
Storage Temperature: 32°-140F(0°-60°C)
Operating Temperature: 40°-150F(-10-60
Response Time: < 10 milliseconds
Technical Sheet
- Imaging Chip: 1/3” color CCD, sensitivity 0.1Lux.
- Display: LCD, 12 inches, resolution 1024*768.
- Lens: Manually fine-tune the focus; the lens is 360 degrees horizontally, tilted 180 degrees to rotate, freely controlled and can stay in any position.
- Illumination Unit: front LED patch lamp beads, the brightness of the light source is adjustable in 8 levels.
Measurement Depth: 300M, 400M, 500M, 600M, 800M, 1000M - Storage Unit: U Disk.
- Probe: Panorama/ rotation can be replaced at will, 40-120mm.
- Working Voltage: AC 220V50Hz.
- The tensile strength of the cable is 250kg.
- The maximum pressure of the probe is not less than 15Mpa.
