FD Series Core Drilling Rigs
- (Â¥) CNY
- (UShs) UGX
- ($) USD

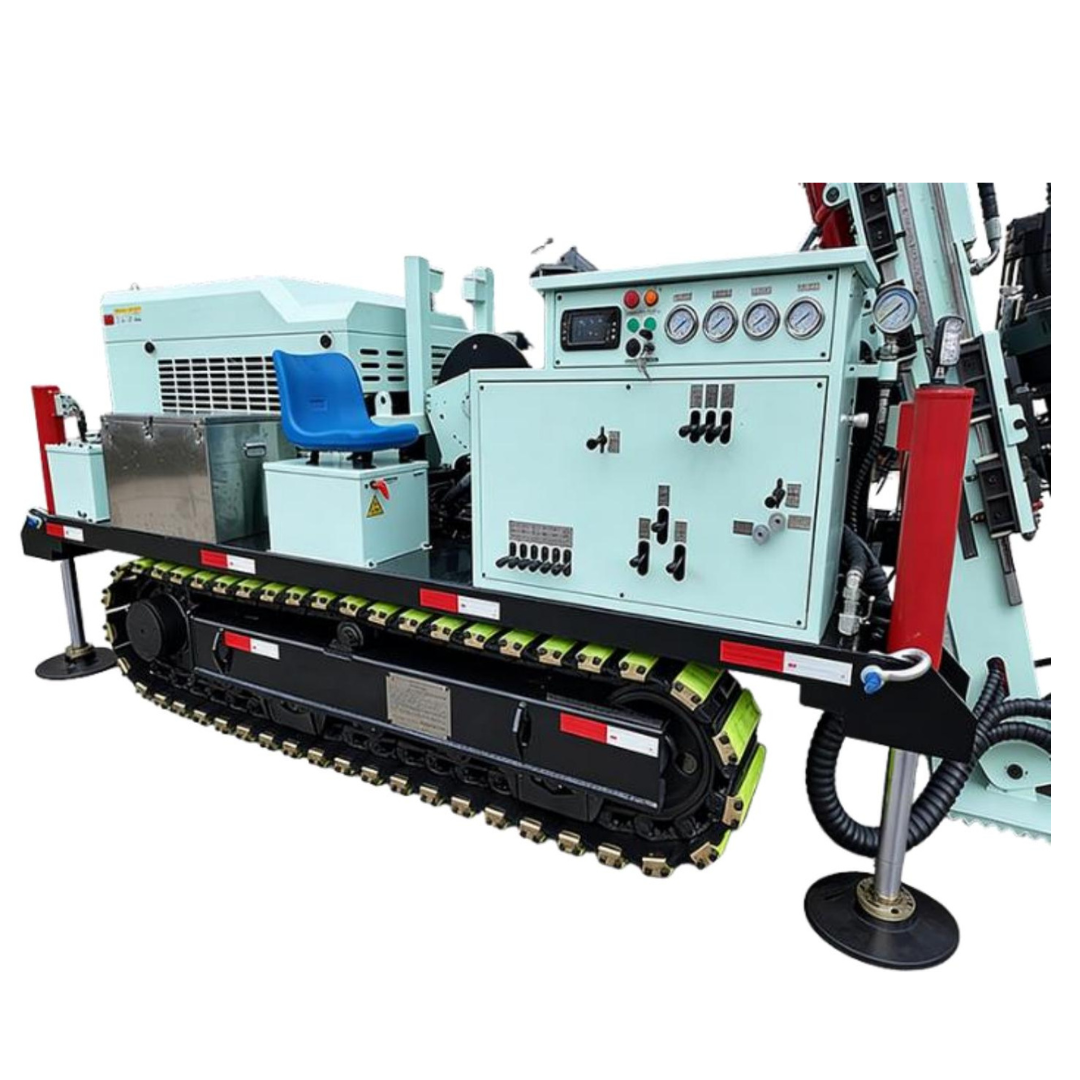

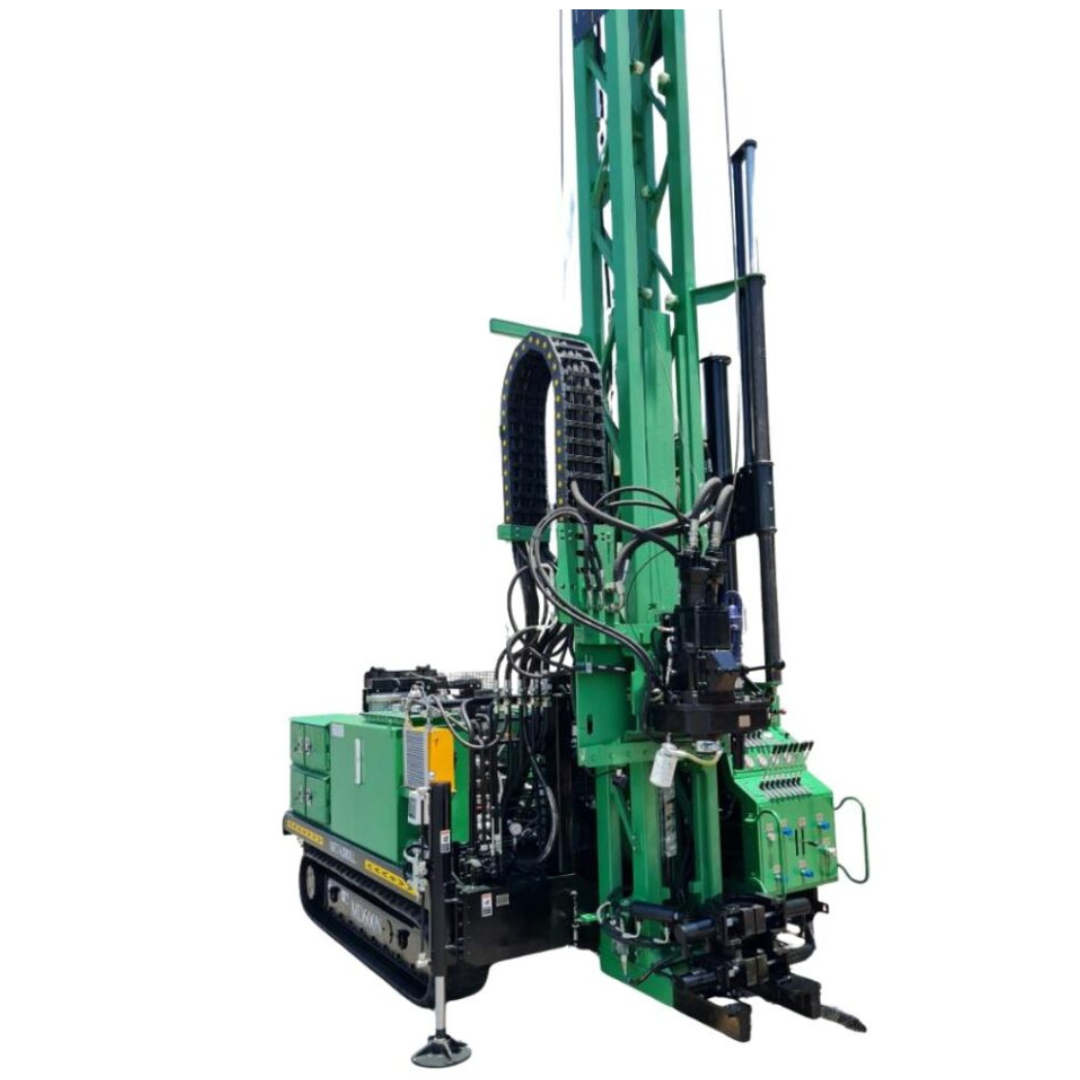

The FD Series Full Hydraulic Drilling Rigs are heavy-duty drilling systems designed for core drilling, water well drilling, and geological investigation. With models offering drilling depths from 400 m to 1,400 m, the range provides powerful hydraulic performance, high torque, and flexible crawler, skid, or truck-mounted configurations for demanding field conditions.
The FD Series Full Hydraulic Drilling Rigs are heavy-duty drilling systems designed for core drilling, water well drilling, and demanding geological investigation applications. The range includes compact and high-capacity models with drilling capabilities extending from 400 m to 1,400 m, providing options for different project depths and site requirements.
Built around powerful hydraulic systems and high-torque powerheads, FD Series rigs deliver the lifting force, propulsion, and drilling performance required for challenging field conditions. Depending on the model, configurations are available with rubber or steel crawler tracks, as well as skid and truck-mounted options, providing flexibility for different terrains and transportation requirements.
The range includes models such as the FDX-400, FDG-400, FDX-600, FDG-600, FD800, FD1000 and FD1200, with different drilling depths, engine capacities, torque ratings and lifting forces to suit varying applications.
Built for the Job
- Full hydraulic drilling system for demanding field applications
- Drilling capabilities from approximately 400 m to 1,400 m, depending on model and drilling configuration
- Suitable for core drilling, water well drilling and geological investigation
- High-torque powerheads designed for demanding drilling operations
- Hydraulic lifting and propulsion systems
- Available with crawler, skid and truck-mounted configurations depending on model
- Rubber or steel crawler options available across the range
- Drilling angles from approximately 45° to 90°, depending on model
- Integrated winch systems with high lifting capacity
- Compatible with BQ, NQ, HQ and PQ drilling configurations on applicable models
- Mud pump systems available according to rig model
- Designed for operation across challenging field environments
| Depth | 400M, 600M, 800M, 1000M, 1200M |
|---|
Related Products
Â
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Â
The FY Series are full hydraulic water well drilling rigs designed for reliable performance across demanding drilling applications. With drilling depths from 300–1,000 m and hole diameters up to 400 mm, the range offers lifting forces of 12–36 tonnes and engine capacities of 55–194 kW. Available in crawler, skid, or truck-mounted configurations, with Yuchai or Cummins engines, the FY Series provides flexible solutions for different drilling environments and project requirements.
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Product Features:
• Accurate, Contamination-Free Samples
The reverse circulation process minimizes sample loss and contamination, delivering precise geological data for informed decision-making.
• High Drilling Efficiency
Designed for rapid penetration rates, RC rigs significantly reduce drilling time and operational costs, making them ideal for large-scale exploration projects.
• Deep Drilling Capability
Capable of reaching substantial depths while maintaining sample integrity, these rigs are suitable for both shallow and deep exploration programs.
• Robust & Durable Construction
Manufactured using high-strength materials, RC rigs can withstand harsh terrains and extreme working conditions, ensuring long-term reliability.
• Versatile Applications
Perfect for mineral exploration, grade control, water borehole drilling, and geotechnical investigations across various ground conditions.
• Easy Operation & Maintenance
User-friendly controls and accessible components simplify operation and reduce downtime during maintenance.
Key Specifications
- BTW Drilling Capability: 1,400 m
- NTW Drilling Capability: 1,200 m
- HTW Drilling Capability: 1,000 m
- Maximum Powerhead Torque: 3,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 26 T
- Propulsive Force: 12 T
- Engine: 132 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 9Â
The WZG-24/48C Engineering Seismograph is a high-performance 24/48-channel seismic data acquisition system designed for geotechnical, geological, and engineering investigations.Â
Equipped with advanced 24-bit digital technology, it delivers accurate, high-resolution seismic data for surface wave analysis, seismic refraction and reflection surveys, shear wave velocity testing, pile integrity assessment, and micro tremor monitoring.
Featuring real-time waveform display, signal enhancement, noise reduction, waveform stacking, and flexible sampling options, the WZG-24/48C ensures reliable field performance even in challenging environments.
Its wide dynamic range and high sampling precision make it ideal for infrastructure projects, groundwater exploration, mining, environmental studies, and civil engineering investigations.
With support for both 24-channel and 48-channel configurations, the system provides the flexibility to handle projects ranging from shallow site characterization to complex subsurface imaging, helping professionals obtain dependable results for informed decision-making.
Â
The duplex double acting piston mud pump range is designed to support drilling operations requiring reliable mud circulation. The catalogue provides Models 125, 150, 200 and 250, offering different stroke sizes, line sizes, displacement ranges and maximum pressure capabilities to accommodate different drilling requirements.
Â
Â
Â
Â
 Key Features:
Â
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Â
Â
Â
Â
Â
Key Features:
- Discharge: 600 LPM
- Engine Power: 10 HP
- Engine Make: Yanmar
- Suction Size: 65–75 mm
Â
Â
The MD40 is a compact, track-mounted drilling rig designed for shallow geotechnical drilling applications, particularly in confined and difficult-to-access locations.
With a compact width of just 1.6 meters, the rig offers excellent maneuverability and can operate efficiently in areas with limited space.
The MD40 can accommodate either 3-metre or 1.5-metre drill rods, providing flexibility for different drilling requirements.
Depending on project conditions and customer preferences, it can be configured with a 4-speed rotation head or a dual-motor system to deliver optimal drilling performance.
Fully customizable to suit specific operational needs, the MD40 provides an economical, versatile, and efficient solution for shallow drilling projects where precision, flexibility, and accessibility are essential.
Â
Â
The FYX Series is a range of powerful hydraulic water well drilling rigs designed for efficient and reliable drilling in demanding conditions. With drilling depths of 300–1,000 m, hole diameters of 140–400 mm, and engine power ranging from 55–194 kW, the series offers strong performance and flexibility for water well, geothermal, construction, and industrial drilling applications.
