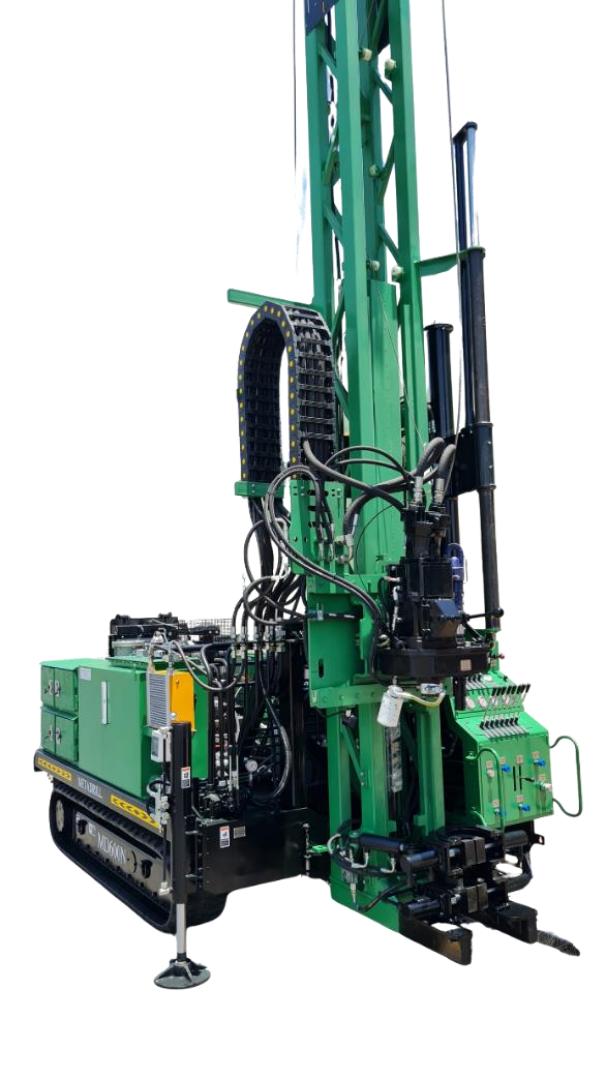

FDG 400 Core Drilling Rig
- (¥) CNY
- (UShs) UGX
- ($) USD
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
The FDG-400 is a full-hydraulic core drilling rig configured for controlled and efficient core drilling across BTW, NTW, and HTW applications. Powered by a 75 kW Yuchai engine and delivering up to 1,200 N·m of powerhead torque, it provides the drilling capacity and lifting performance required for professional field operations. Its steel-track crawler configuration offers a robust platform for demanding drilling environments.
Built for the Job
- Cooling method: Water cooling
- Feed stroke: 2 m (optional)
- Winch rope capacity: 500 m
- Winch lifting force: 15 kN
- Hoisting speed: 110 m/min
- Wire rope diameter: 6 mm
- Overall height: 7 m
- Compensation stroke: 900 mm
- Gripper: BQ / NQ / HQ / PQ
- Gradeability: 30°
- Maximum travel speed: 2.5 km/h
- Mud pump: BW90
- Working dimensions: 3850 × 1800 × 7000 mm
- Transport dimensions: 5700 × 1800 × 2170 mm
