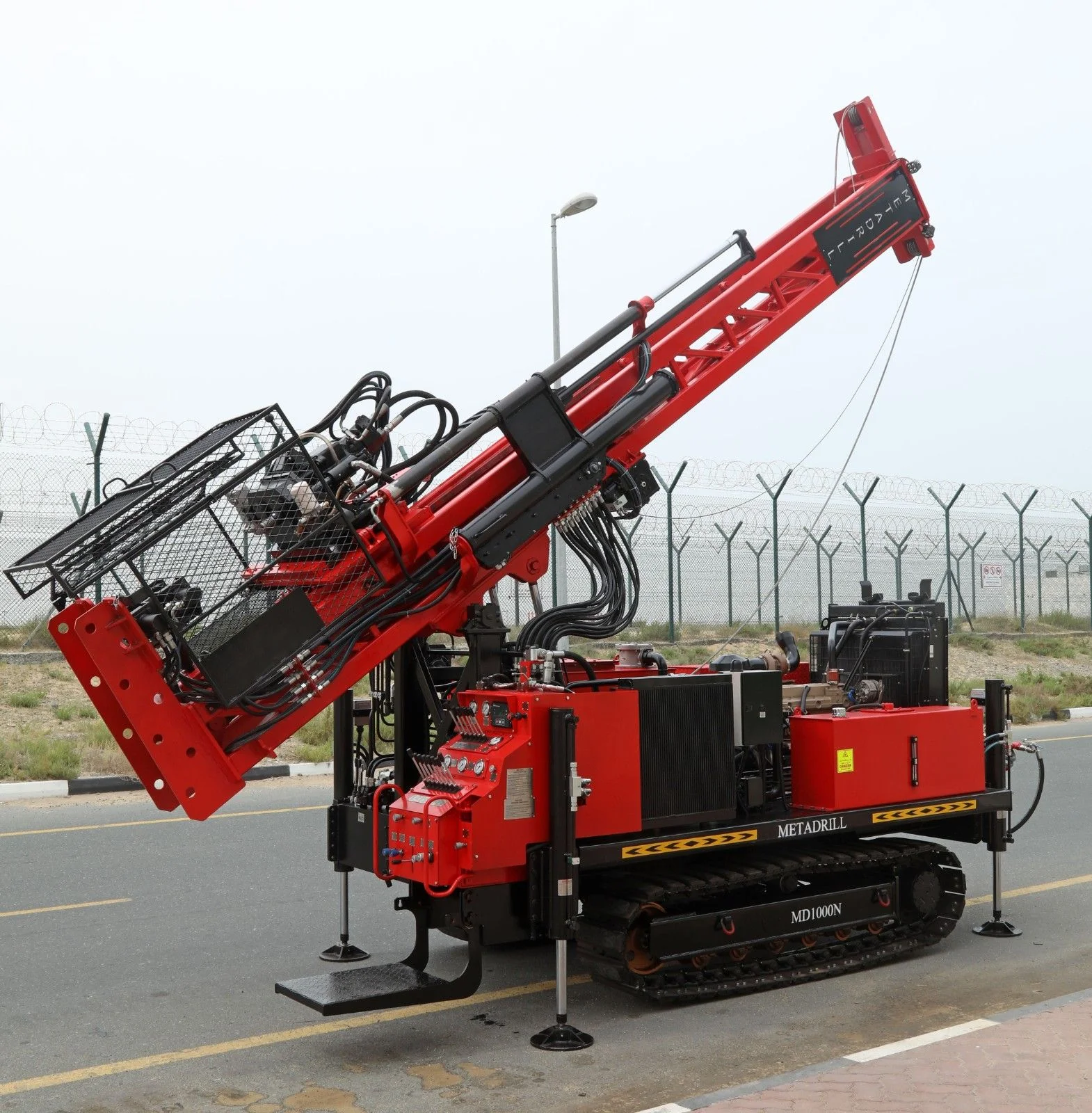

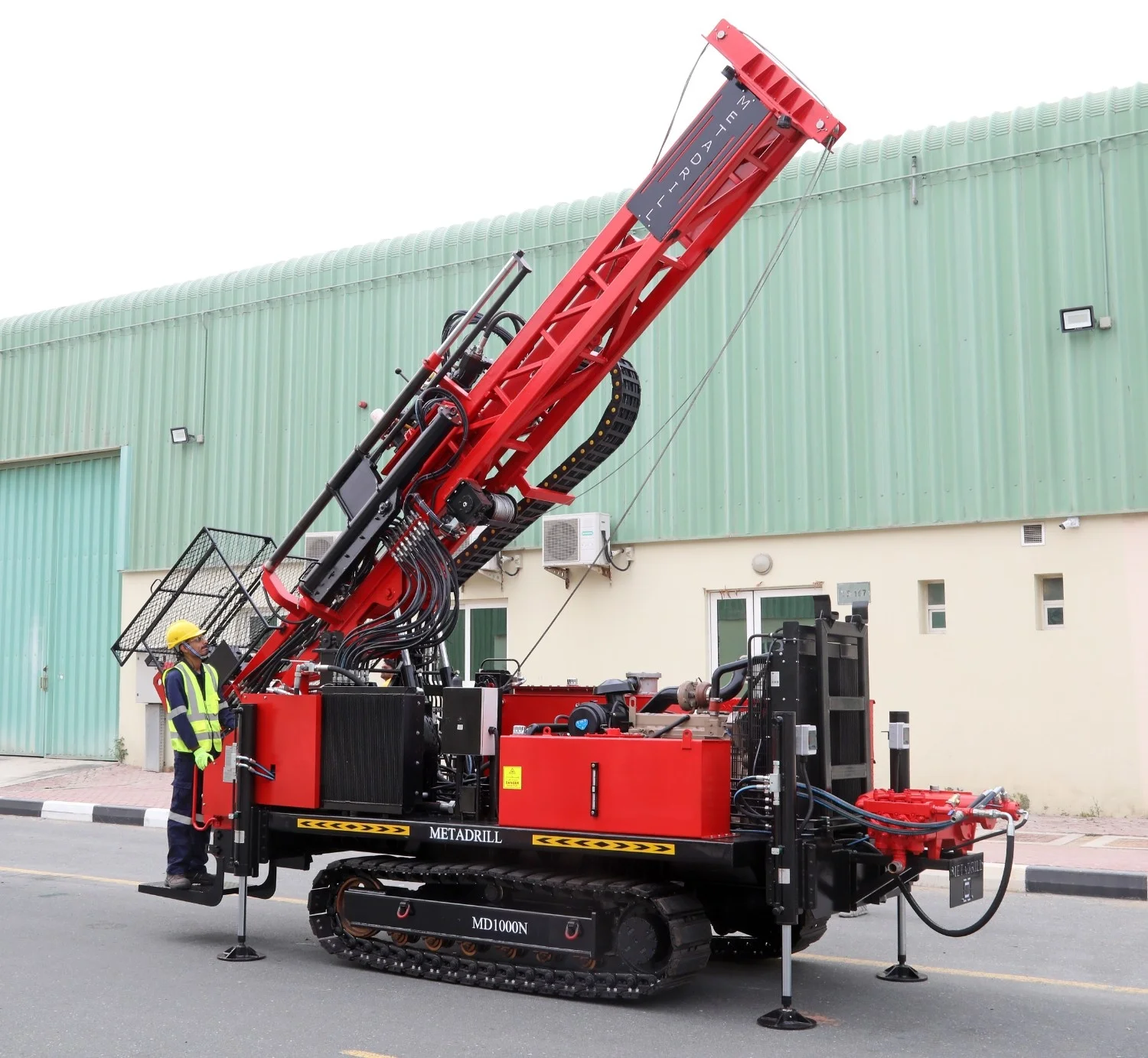

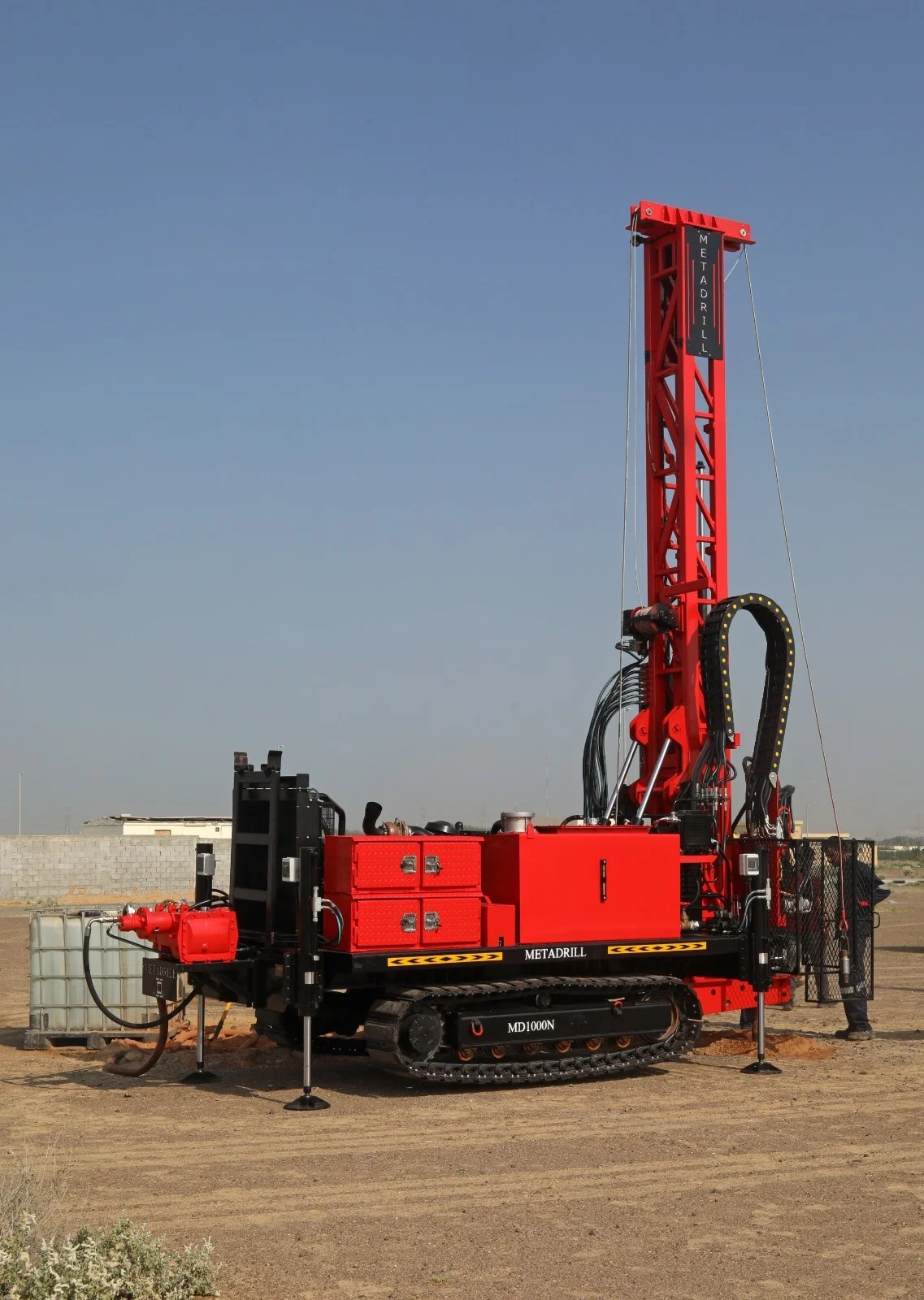

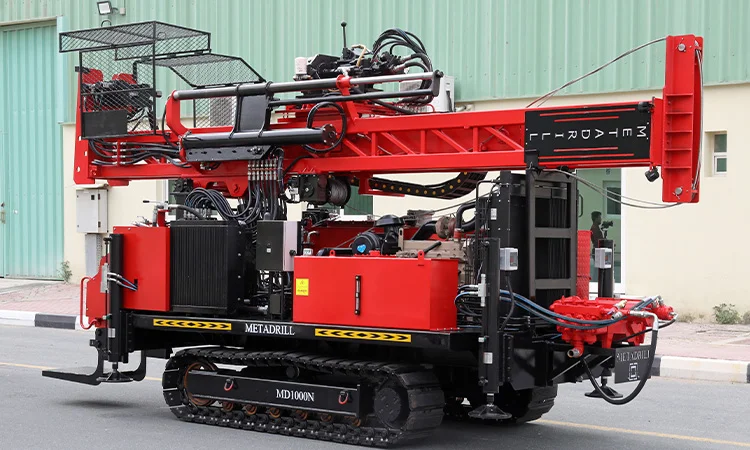

MD1000N Multi-Purpose Geotechnical & Exploration Drill Rig
- (Â¥) CNY
- (UShs) UGX
- ($) USD
Application: Surface Exploration
Drill Rod Size: PO/ HQ/ NQ
Max Depth: PQ 400 m; HQ= 600 m; NQ=1000 m
Prime Mover: 256 HP
Rotary Head: Torque: 825-5172 Nm
Speed: 110-1200 rpm
Rod Handling: 3 m rod handling
Pull Up: 12000 kgf
Pull Down: 8000 kgf
Water Pump: Displacement of 165 lpm with 50 Bar
SPT: Automatic SPT Hammer (Optional)
Â
Â
The MD1000N is a heavy-duty geotechnical and surface exploration drilling rig engineered for deep wireline coring, water well drilling, and soil investigation projects.
Designed for maximum productivity and reliability, it delivers exceptional drilling performance with depths of up to 1,000 m (NQ), 600 m (HQ), and 400 m (PQ). Equipped with a powerful 256 HP engine, high-torque rotary head, and 12-ton pullback capacity, the MD1000N is built to handle demanding ground conditions while maintaining excellent core recovery and drilling efficiency.
Optional features such as an automatic SPT hammer, remote monitoring, GPS, and CCTV systems further enhance safety, control, and operational performance.
Â
