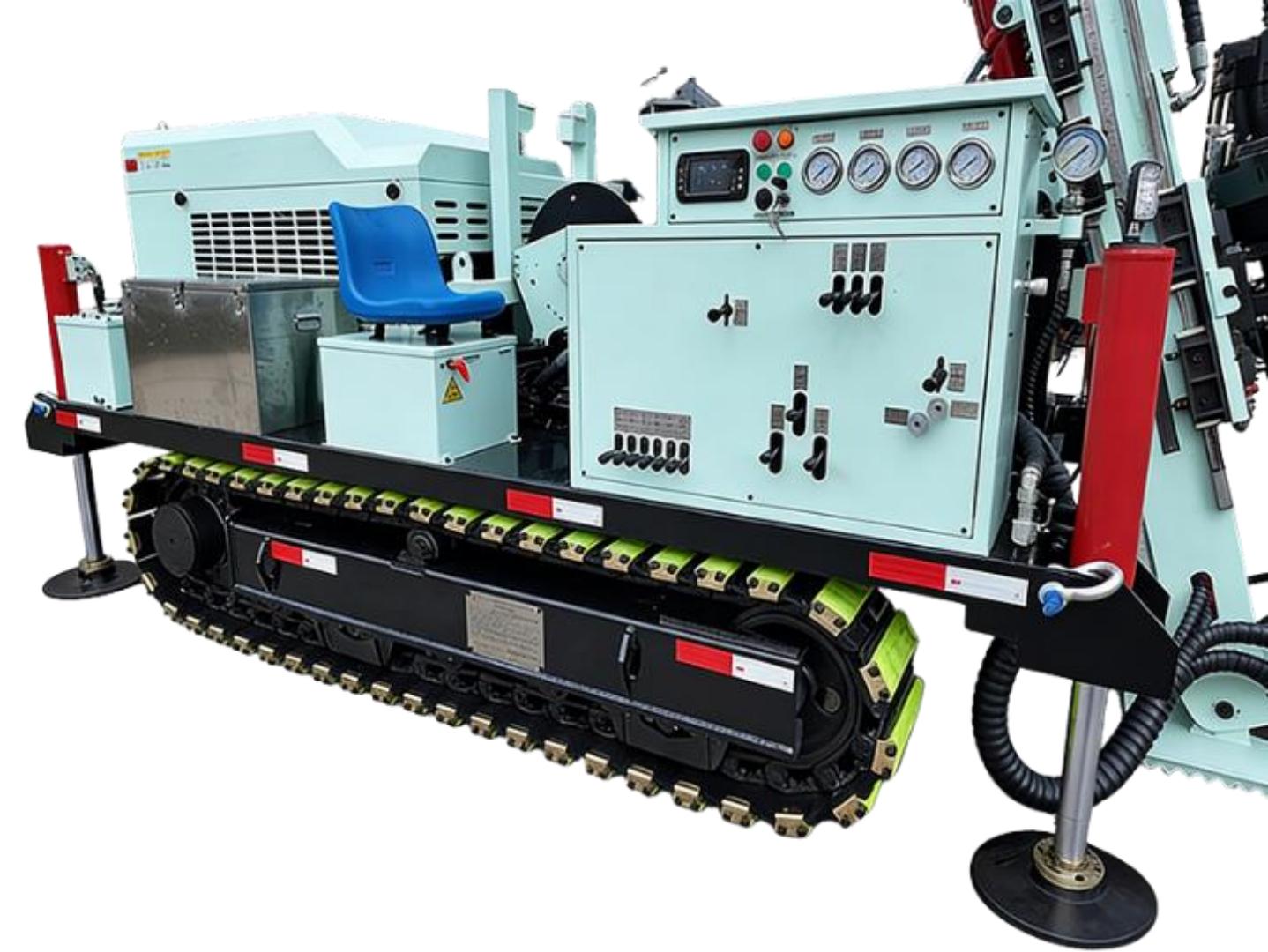

FDG 600 Core Drilling Rig
- (¥) CNY
- (UShs) UGX
- ($) USD
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 6.2 T
The FDG-600 is built for deeper professional core drilling, offering up to 600 metres of NTW drilling capability and 300 metres in HTW. Its 91 kW Yuchai engine and 1,600 N·m maximum powerhead torque provide a strong operating platform for demanding drilling work. The steel-track crawler configuration adds a durable mobility solution for field deployment.
Built for the Job
- Cooling method: Water cooling
- Feed stroke: 2 m (optional)
- Winch rope capacity: 800 m
- Winch lifting force: 15 kN
- Hoisting speed: 110 m/min
- Wire rope diameter: 6 mm
- Overall height: 7 m
- Compensation stroke: 900 mm
- Gripper: BQ / NQ / HQ / PQ
- Optional clamp: 114 mm
- Gradeability: 30°
- Maximum travel speed: 3 km/h
- Mud pump: BW90
- Working dimensions: 4100 × 1900 × 7000 mm
- Transport dimensions: 4500 × 1900 × 2400 mm
