2021 PRD Speedstar
- (UShs) UGX
- (TZs) TZS
- (Fr) RWF
- (Fr) BIF
- ($) USD
Rig Features:

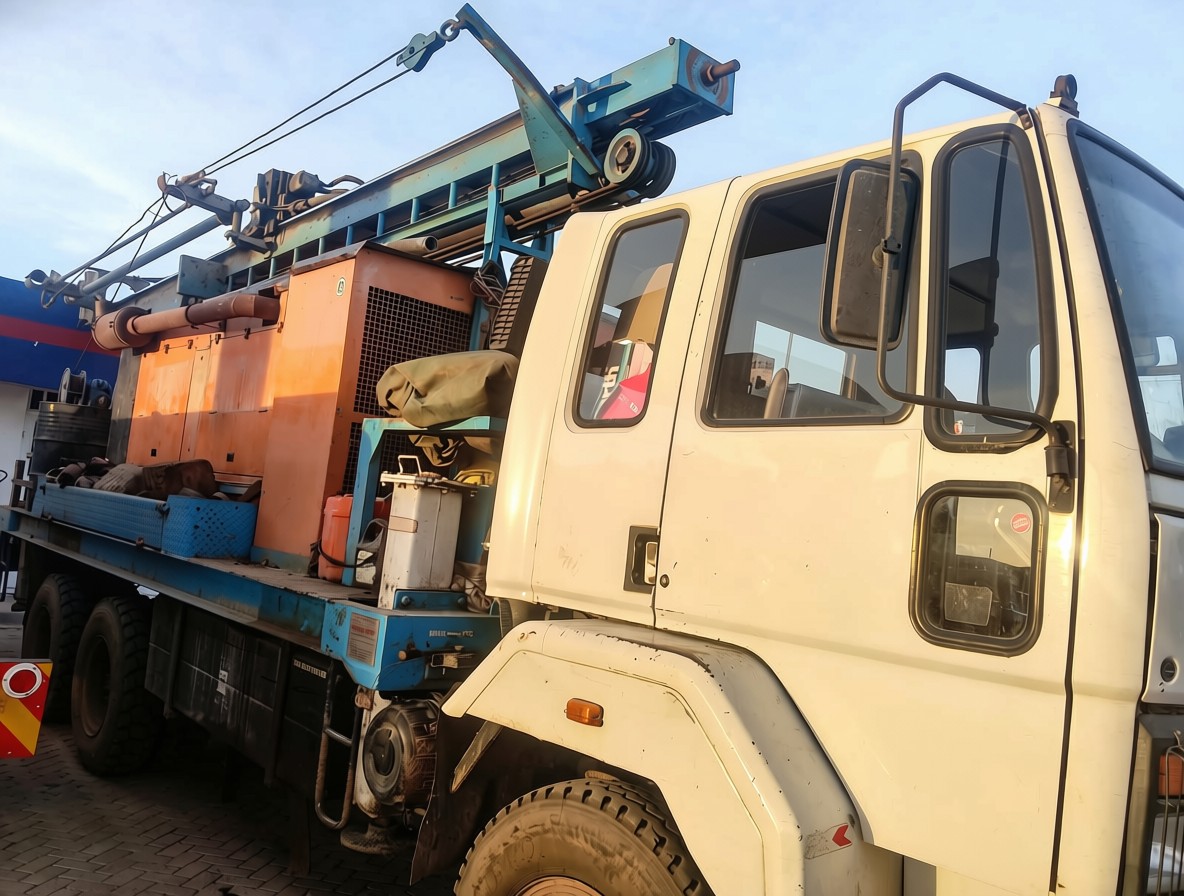

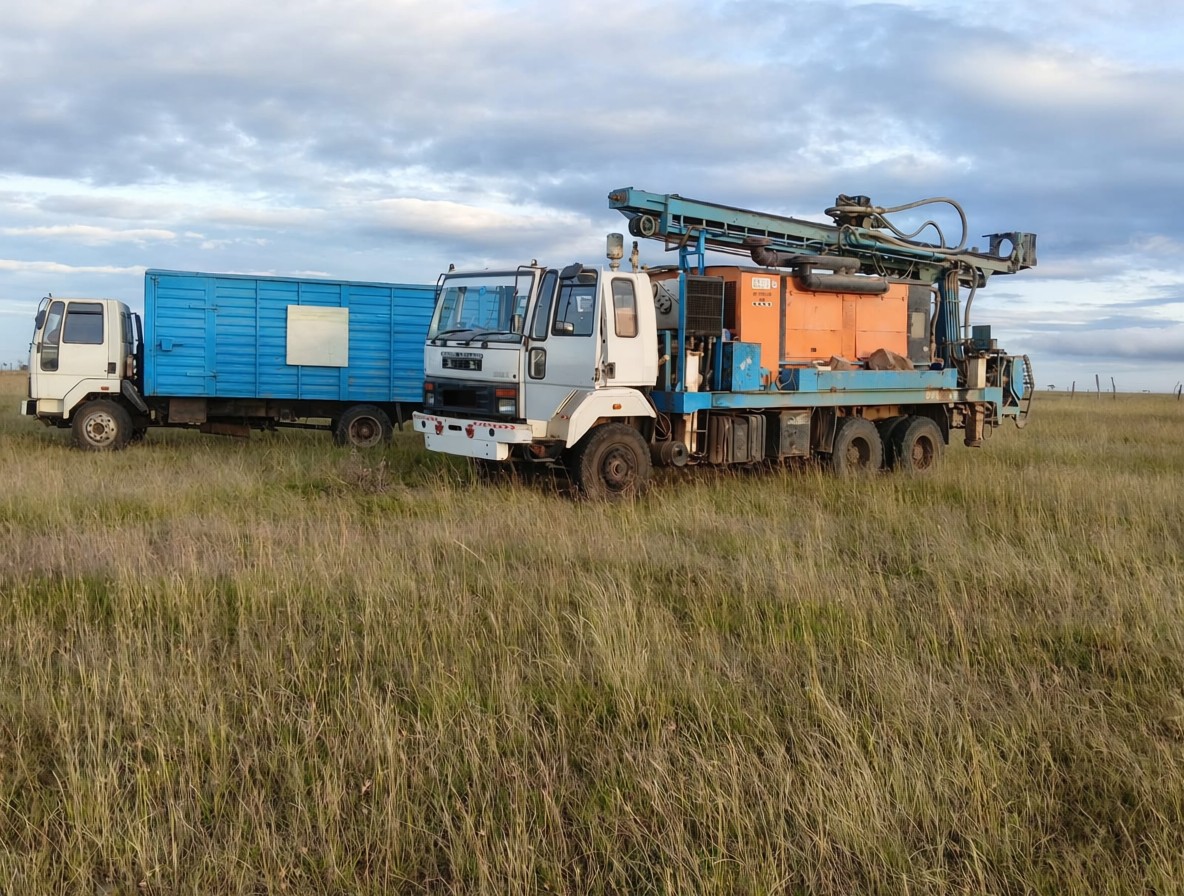

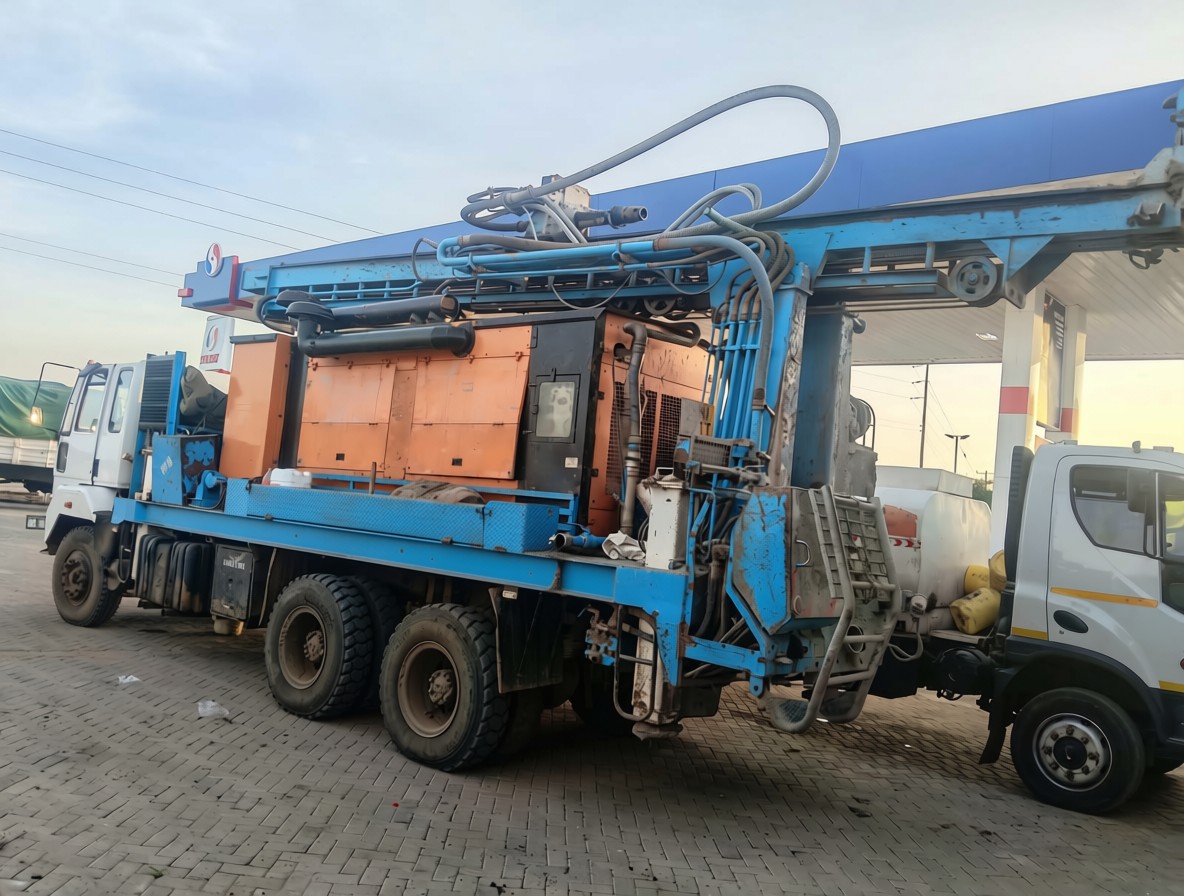

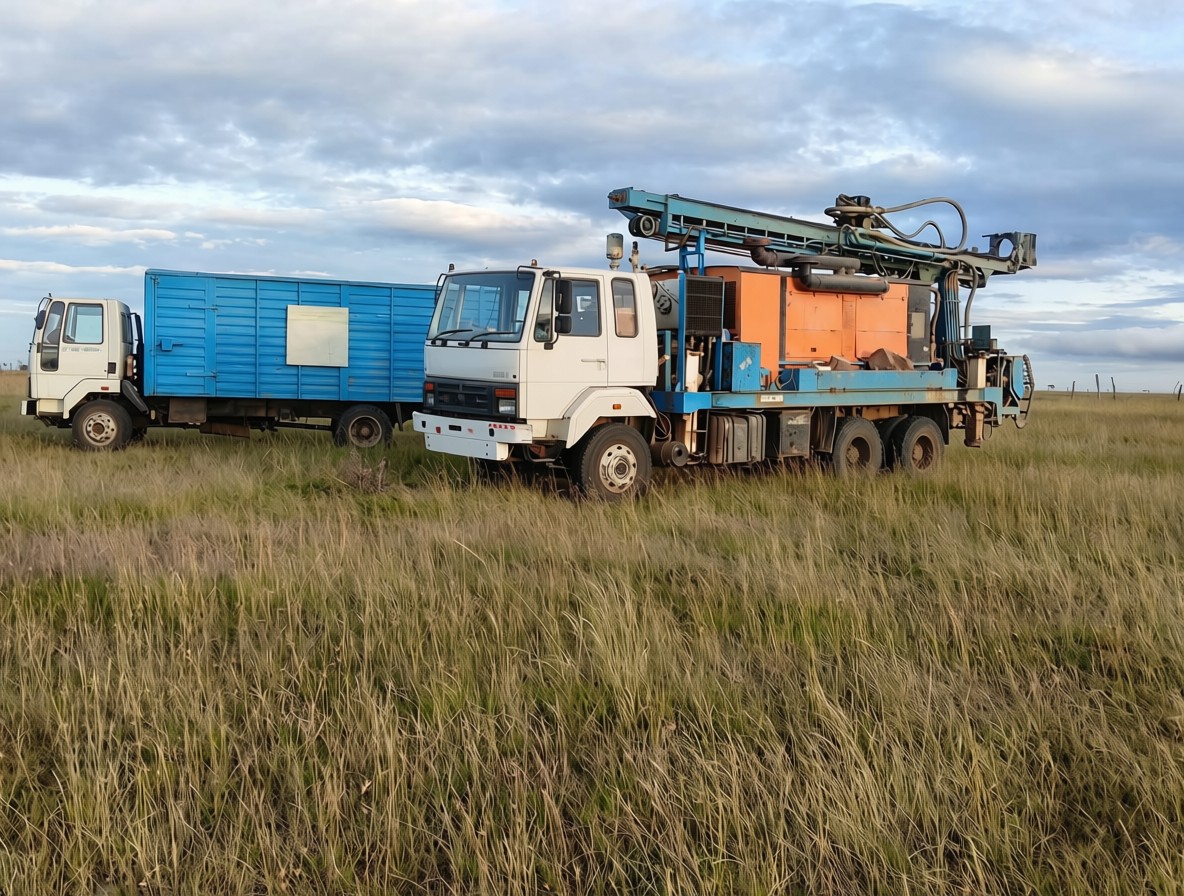

- 2021 PRD Speedstar drilling rig
- Mounted on Ashok Leyland 2518 6*4 truck
- Maximum drilling depth of 363 meters
- ELGI (21Bar) Compressor
This pre-owned PRD Speedstar drilling rig is a reliable, high-performance water well drilling rig designed for efficient borehole drilling across a wide range of geological formations.
It is mounted on a robust Ashok Leyland 2518 6×4 truck and paired with an ELGi (21 Bar) air compressor; this package delivers the power and mobility required for demanding drilling projects.
With a maximum drilling depth of 363 metres, the rig is ideal for owners seeking a dependable, ready-to-work solution.
Drilling tools are included, making it a cost-effective investment for expanding your drilling operations.
Related Products
Key Specifications
- BTW Drilling Capability: 1,000 m
- NTW Drilling Capability: 800 m
- HTW Drilling Capability: 600 m
- Maximum Powerhead Torque: 2,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 20 T
- Propulsive Force: 10 T
- Engine: Yuchai 92 kW, six-cylinder
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 7.5 T
 Key Features:
Â
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Â
Â
Â
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
Key Features:
- PRD Speedster drilling rig
- Ashok Leyland 2518 6×4 truck-mounted
- Drilling tools available
- Suitable for water well drilling applications
- Available for inspection and viewing
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
Key Features:
- Discharge: 600 LPM
- Engine Power: 10 HP
- Engine Make: Yanmar
- Suction Size: 65–75 mm
Key Specifications
- BTW Drilling Capability: 650 m
- NTW Drilling Capability: 600 m
- HTW Drilling Capability: 300 m
- Maximum Powerhead Torque: 1,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 91 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 6.2 T
The duplex double acting piston mud pump range is designed to support drilling operations requiring reliable mud circulation. The catalogue provides Models 125, 150, 200 and 250, offering different stroke sizes, line sizes, displacement ranges and maximum pressure capabilities to accommodate different drilling requirements.
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Product Features:
• Accurate, Contamination-Free Samples
The reverse circulation process minimizes sample loss and contamination, delivering precise geological data for informed decision-making.
• High Drilling Efficiency
Designed for rapid penetration rates, RC rigs significantly reduce drilling time and operational costs, making them ideal for large-scale exploration projects.
• Deep Drilling Capability
Capable of reaching substantial depths while maintaining sample integrity, these rigs are suitable for both shallow and deep exploration programs.
• Robust & Durable Construction
Manufactured using high-strength materials, RC rigs can withstand harsh terrains and extreme working conditions, ensuring long-term reliability.
• Versatile Applications
Perfect for mineral exploration, grade control, water borehole drilling, and geotechnical investigations across various ground conditions.
• Easy Operation & Maintenance
User-friendly controls and accessible components simplify operation and reduce downtime during maintenance.
The FYX Series is a range of powerful hydraulic water well drilling rigs designed for efficient and reliable drilling in demanding conditions. With drilling depths of 300–1,000 m, hole diameters of 140–400 mm, and engine power ranging from 55–194 kW, the series offers strong performance and flexibility for water well, geothermal, construction, and industrial drilling applications.
