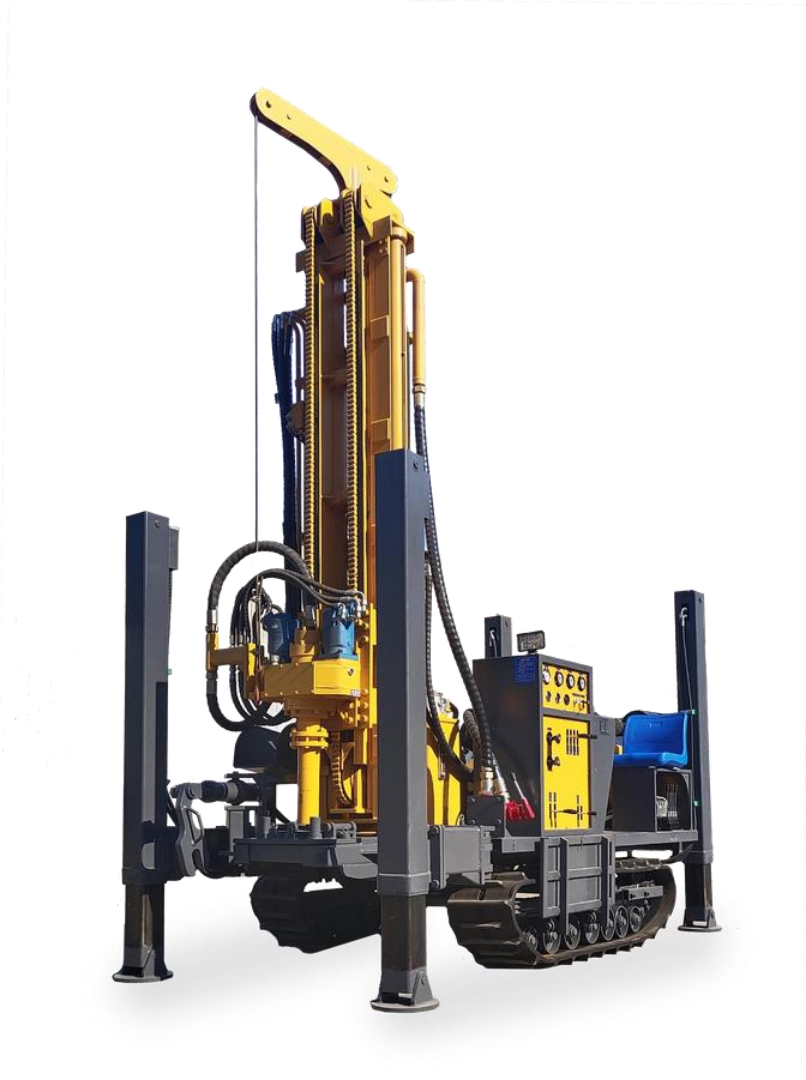

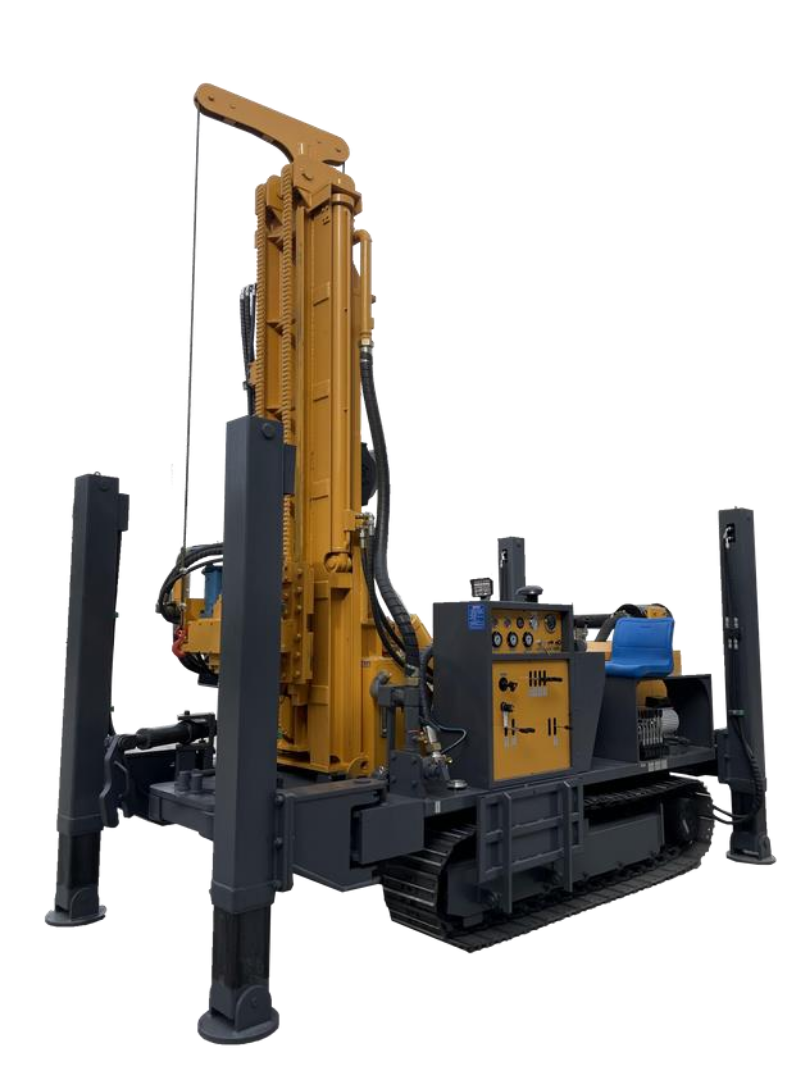

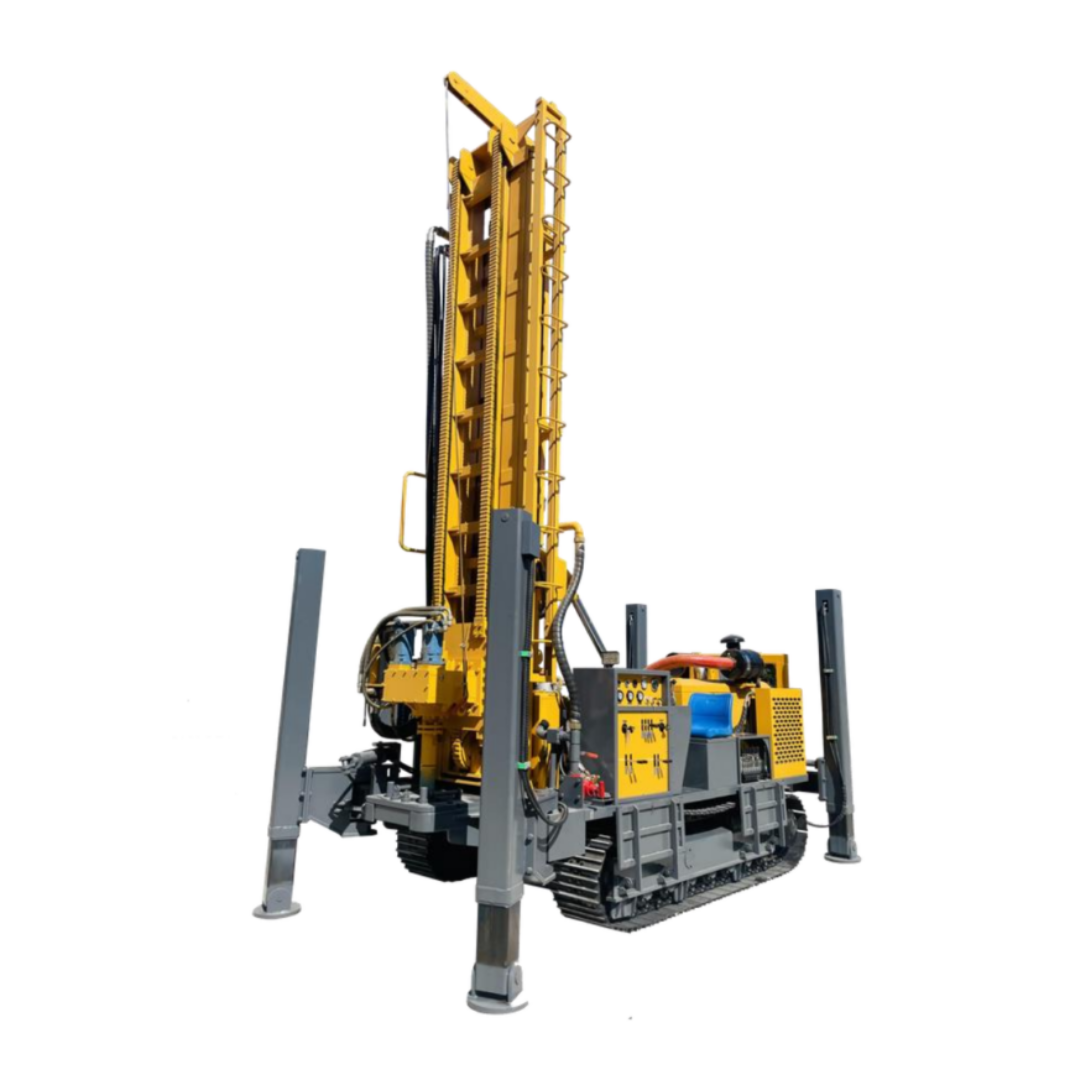

FYX SERIES FULL HYDRAULIC WATERWELL DRILLING RIG
The FYX Series are full hydraulic water well drilling rigs designed for reliable and efficient drilling across demanding applications. The range offers drilling depths from 180 m and 200 m, with hole diameters ranging from 140–400 mm depending on the model. Available drill pipe diameters range from 76–117 mm, while lifting forces range from 12–36 tonnes. The rigs feature equipped capacities from 55–194 kW, working air pressures of 1.7–3.4 MPa, and penetration efficiencies of up to 15–35 m/h on applicable models. Depending on the model, swing torque reaches up to 14,000 N·m. The range is powered by Yuchai or Cummins engines and is available in crawler, skid, or truck-mounted configurations, providing flexibility for different drilling environments and site requirements.
Â
Â
Â
Â
| Depth | FYX 180, FYX 200 |
|---|
Related Products
Â
Product Description
- Drilling Depth: 300 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 76/89 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 3.3 m
- Rapid Rise Speed: 22 m/min
- Fast Feeding Speed: 22 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 5,700–7,500 N·m
- Swing Speed: 40–70 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 6.8 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 4100 × 2000 × 2260 mm
Â
Â
Product Description
- Drilling Depth: 350 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 89–102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 22 T
- Rapid Rise Speed: 18 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Capacitor: 91 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.4 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 6,200–8,500 N·m
- Swing Speed: 66–135 rpm
- Engine: Yuchai
- Weight: 8.6 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6000 × 2000 × 2550 mm
Â
Â
Product Description
- Drilling Depth: 700 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 28 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–42 m³/min
- Swing Torque: 8,500–11,000 N·m
- Swing Speed: 45–140 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Weight: 9.5 T
- Mounting Options: Crawler / Truck / Skid
- Dimensions: 6200 × 2200 × 2950 mm
Â
Key Features:
- Mounted on a 4×2 Ashok Leyland 9016 truck
- It features a 45 kVA onboard generator
- 7-ton winch
- Electric control panel
- all accessories for convenient field operations
Â
Product Description
- Drilling Depth: 450 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 25 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 110 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 7,000–9,500 N·m
- Swing Speed: 30–135 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.2 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 × 2200 × 2600 mm
Â
Â
Product Description
- Drilling Depth: 600 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–42 m³/min
- Swing Torque: 7,500–10,000 N·m
- Swing Speed: 45–130 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Truck / Crawler / Skid
- Dimensions: 6150 × 2200 × 2600 mm
Â
Â
Â
Product Description:
- Drilling Depth: 400 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 24 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 18 m/min
- Fast Feeding Speed: 33 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 92 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 5,700–7,500 N·m
- Swing Speed: 66–135 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 8 T
- Mounting Options: Crawler / Truck / Skid
- Dimensions: 6000 × 2000 × 2550 mm
Â
Â
Â
Product Description
- Drilling Depth: 300 m
- Hole Diameter: 140–325 mm
- Drill Pipe Diameter: 76/89/102 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 22 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 5,700–7,500 N·m
- Swing Speed: 40–70 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 8 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 5900 × 1850 × 2200 mm
Â
Product Features:
• Accurate, Contamination-Free Samples
The reverse circulation process minimizes sample loss and contamination, delivering precise geological data for informed decision-making.
• High Drilling Efficiency
Designed for rapid penetration rates, RC rigs significantly reduce drilling time and operational costs, making them ideal for large-scale exploration projects.
• Deep Drilling Capability
Capable of reaching substantial depths while maintaining sample integrity, these rigs are suitable for both shallow and deep exploration programs.
• Robust & Durable Construction
Manufactured using high-strength materials, RC rigs can withstand harsh terrains and extreme working conditions, ensuring long-term reliability.
• Versatile Applications
Perfect for mineral exploration, grade control, water borehole drilling, and geotechnical investigations across various ground conditions.
• Easy Operation & Maintenance
User-friendly controls and accessible components simplify operation and reduce downtime during maintenance.
Product Description
- Drilling Depth: 200 m
- Hole Diameter: 140–254 mm
- Drill Pipe Diameter: 76/89 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 m
- Lifting Force: 18 T
- One-Time Advance Length: 3.3 m
- Rapid Rise Speed: 30 m/min
- Fast Feeding Speed: 60 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 85 kW
- Hoisting Force of Winch: 1.5 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–31 m³/min
- Swing Torque: 3,400–4,700 N·m
- Swing Speed: 45–70 rpm
- Engine: Yuchai
- Weight: 4.7 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 3950 × 1750 × 2250 mm
Â
Â
Â
 Key Features:
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan
Â
Â
Â
Product Description
- Drilling Depth: 500 m
- Hole Diameter: 140–350 mm
- Drill Pipe Diameter: 102/108/114 mm
- Drill Pipe Length: 1.5 / 2.0 / 3.0 / 6.0 m
- Lifting Force: 26 T
- One-Time Advance Length: 6.6 m
- Rapid Rise Speed: 20 m/min
- Fast Feeding Speed: 40 m/min
- Walking Speed: 2.5 km/h
- Gradeability: 30°
- Equipped Capacity: 118 kW
- Hoisting Force of Winch: 2 T
- Working Air Pressure: 1.7–3.0 MPa
- Air Consumption: 17–36 m³/min
- Swing Torque: 7,500–10,000 N·m
- Swing Speed: 45–130 rpm
- Penetration Efficiency: 15–35 m/h
- Engine: Yuchai
- Weight: 9.5 T
- Mounting Options: Crawler / Skid / Truck
- Dimensions: 6150 × 2200 × 2600 mm
