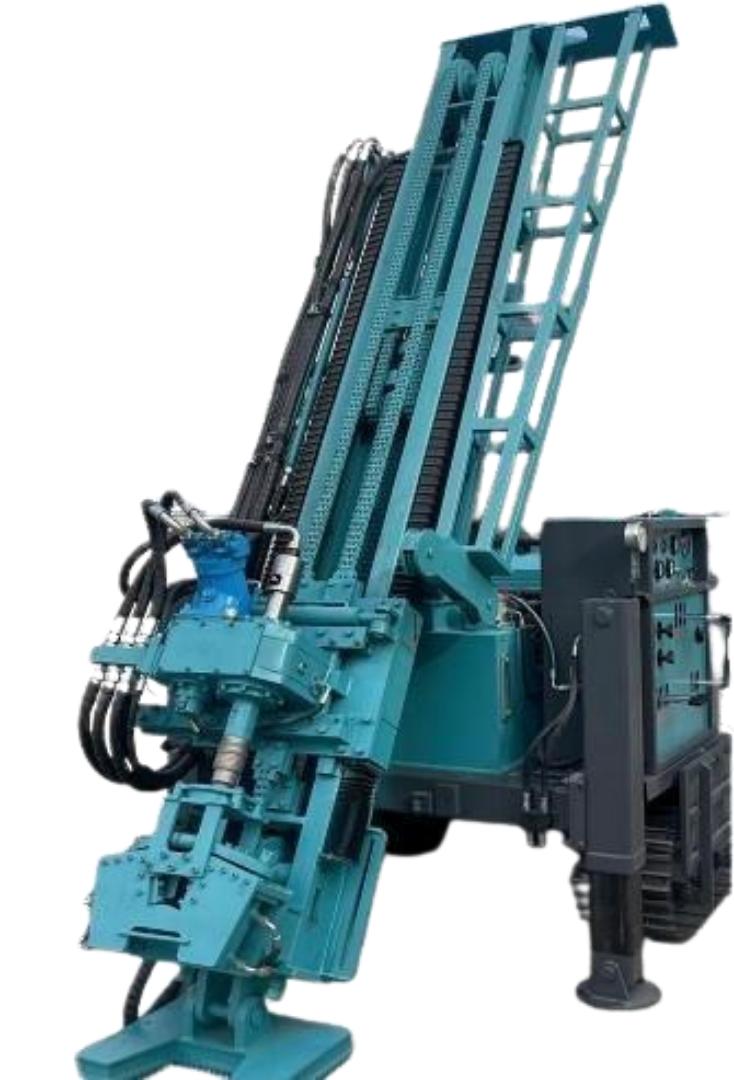

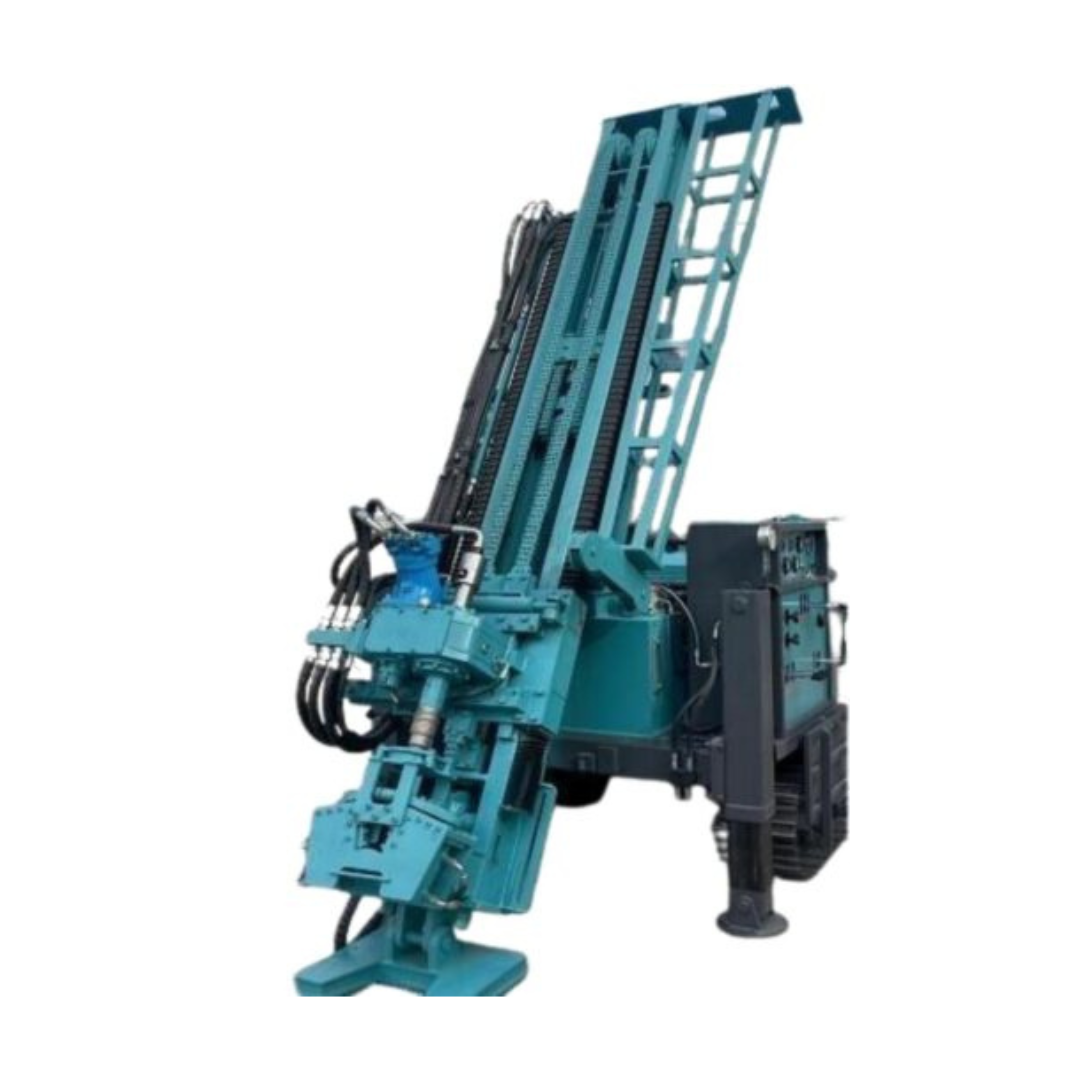

FD1000 Core Drilling Rig
- (¥) CNY
- (UShs) UGX
- ($) USD
Key Specifications
- BTW Drilling Capability: 1,200 m
- NTW Drilling Capability: 1,000 m
- HTW Drilling Capability: 800 m
- Maximum Powerhead Torque: 2,600 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 24 T
- Propulsive Force: 12 T
- Engine: 129/130 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 8.4 T
The FD1000 is a deep-capacity full-hydraulic core drilling rig designed for serious exploration and core drilling operations. It delivers up to 1,000 meters of NTW drilling and 800 metres of HTW drilling, while its 2,600 N·m maximum torque and 24-ton lifting force provide the strength required for demanding drilling work. With a 129/130 kW engine configuration and steel-track crawler platform, it is built for contractors operating at greater depths.
Built for the Job
- Cooling method: Water and air cooling
- Feed stroke: 2 m (optional)
- Winch rope capacity: 1,200 m
- Winch lifting force: 24 kN
- Hoisting speed: 110 m/min
- Wire rope diameter: 8 mm
- Overall height: 7 m
- Compensation stroke: 1,200 mm
- Gripper: 114 mm clamp (optional)
- Gradeability: 30°
- Maximum travel speed: 3 km/h
- Mud pump: BW160
- Working dimensions: 4700 × 3100 × 7000 mm
- Transport dimensions: 4700 × 2100 × 2500 mm
