MD40
- (Â¥) CNY
- (UShs) UGX
- ($) USD

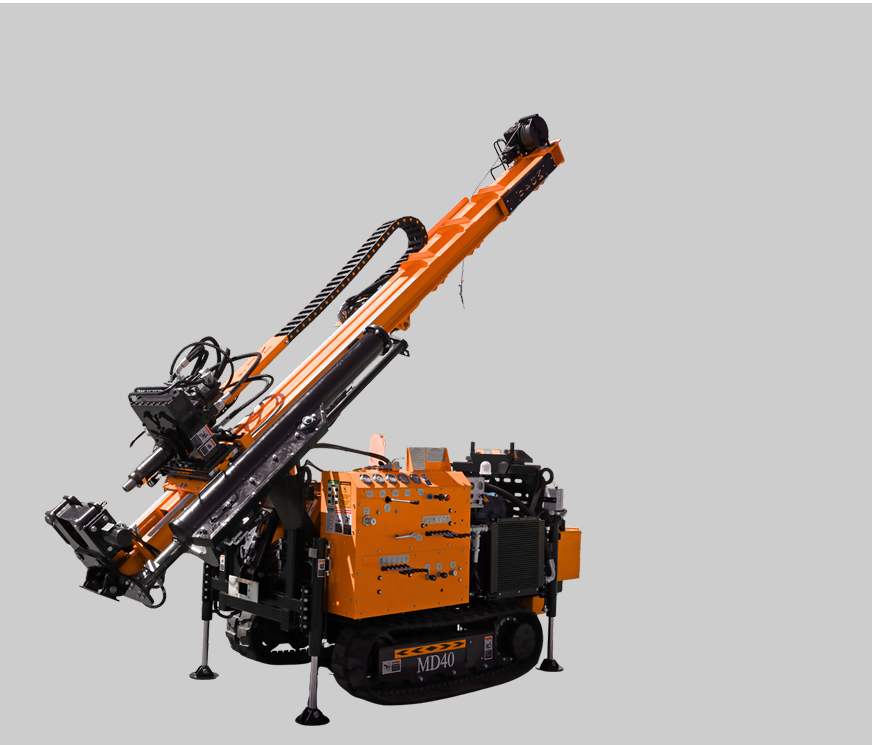

The MD40 is a compact, track-mounted drilling rig designed for shallow geotechnical drilling applications, particularly in confined and difficult-to-access locations.
With a compact width of just 1.6 meters, the rig offers excellent maneuverability and can operate efficiently in areas with limited space.
The MD40 can accommodate either 3-metre or 1.5-metre drill rods, providing flexibility for different drilling requirements.
Depending on project conditions and customer preferences, it can be configured with a 4-speed rotation head or a dual-motor system to deliver optimal drilling performance.
Fully customizable to suit specific operational needs, the MD40 provides an economical, versatile, and efficient solution for shallow drilling projects where precision, flexibility, and accessibility are essential.
Â
Â
 Technical Specifications
|
Drilling depth capacities |
Â
NW: 60 m [196 ft] H wireline: 40 m [130 ft] P wireline: 25 m [82 ft]Â |
|
Engine Power |
Tier IIIA / Stage V FPT / John Deere / Kubota – 62 KW (66 Hp) |
|
Diesel Tank |
45L |
|
Ignition System |
12V |
|
Pull Up |
2,500 daN [5,620 lbs] |
|
Pull Down |
1,500 daN [3,300 lbs] |
|
Feeding Stroke |
Â
2.1 m [6.8ft] Optional 3.5m [11.48ft]Â |
|
Feed down speed |
0-15 m/min [0-50 ft/min] |
|
Feed up speed |
0-10 m/min [0-30 ft/min] |
|
 Rotation head configuration |
Single Speed Gearbox + Two Fixed Displacement motors Series/Parallel |
| Â
Torque and Speed Maximum: 500 RPM 2,500 Nm [1,840 lb-ft] Â |
Gear 1 : 84 RPM / 2,500 Nm Gear 2 : 170 RPM / 1,300 Nm Gear 3 : 300 RPM / 750 Nm Gear 4 : 530 RPM/ 428 Nm |
|
Hoisting Winch |
Â
1,000 Kg [2,205 lbs.] 6 mm [15/64 in] Wire/Cable/Cable 65 meters [213 ft.] wire capacity |
|
Mud Pump |
Â
Progressive Cavity Pump 140 L/min [40 GPM] 18 bar [265 PSIÂ |
| Â
Rod Clamps Max passage |
35mm – 180mm [ 1 3/8 in – 7 in] |
|
Clamping Force |
23, 000 daN [50,700 lbs] |
|
Automatic SPT Hammer |
Â
63.5 Kg [140 lb] 0-50 Blows/min |
|
Mast Dumping |
 520mm |
Â
Related Products
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Rubber-track crawler
- Operating Weight: 5.3 T
Key Specifications
- BTW Drilling Capability: 1,000 m
- NTW Drilling Capability: 800 m
- HTW Drilling Capability: 600 m
- Maximum Powerhead Torque: 2,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 20 T
- Propulsive Force: 10 T
- Engine: Yuchai 92 kW, six-cylinder
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 7.5 T
Key Features:
- Discharge: 600 LPM
- Engine Power: 10 HP
- Engine Make: Yanmar
- Suction Size: 65–75 mm
Key Specifications
- BTW Drilling Capability: 1,400 m
- NTW Drilling Capability: 1,200 m
- HTW Drilling Capability: 1,000 m
- Maximum Powerhead Torque: 3,000 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 26 T
- Propulsive Force: 12 T
- Engine: 132 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 9
Key Specifications
- Maximum Drilling Depth: 800 m
- Hole Diameter: 140–400 mm
- Lifting Force: 28 T
- Equipped Capacity: 153 kW
- Swing Torque: 8,850–13,150 N·m
- Penetration Efficiency: 15–35 m/h
- Engine: Cummins
- Mounting Options: Crawler / Skid / Truck
- Operating Weight: 12 T
Key Specifications
- BTW Drilling Capability: 480 m
- NTW Drilling Capability: 400 m
- HTW Drilling Capability: 200 m
- Maximum Powerhead Torque: 1,200 N·m
- Maximum Powerhead Speed: 1,400 rpm
- Lifting Force: 16 T
- Propulsive Force: 8 T
- Engine: Yuchai 75 kW
- Drilling Angle: 45–90°
- Mounting: Steel-track crawler
- Operating Weight: 5.8
- Product: The WZG-24/48C is a 24/48-channel engineering seismograph with 24-bit digital technology for high-resolution seismic data acquisition.
- Applications: Surface wave analysis, seismic refraction and reflection surveys, shear wave velocity testing, pile integrity assessment, and micro tremor monitoring.
- Key features: Real-time waveform display, signal enhancement, noise reduction, waveform stacking, and flexible sampling options.
- Performance: Wide dynamic range and high sampling precision give reliable results even in challenging field conditions.
- Flexibility and uses: Supports 24- or 48-channel setups for projects from shallow site characterization to complex subsurface imaging, including infrastructure, groundwater, mining, environmental, and civil engineering work.

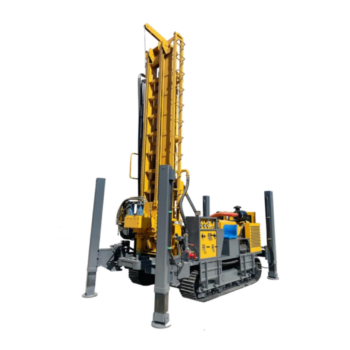

The FYX Series is a range of powerful hydraulic water well drilling rigs designed for efficient and reliable drilling in demanding conditions. With drilling depths of 300–1,000 m, hole diameters of 140–400 mm, and engine power ranging from 55–194 kW, the series offers strong performance and flexibility for water well, geothermal, construction, and industrial drilling applications.
Key Specifications
- Free Air Delivery: 380–1,500 CFM
- Pressure Range: 150–500 PSI
- Mounting Options: Skid Platform / Trolley / Truck
- Available Makes: Chicago Pneumatic / ELGI / Atlas Copco / Doosan / Kaishan

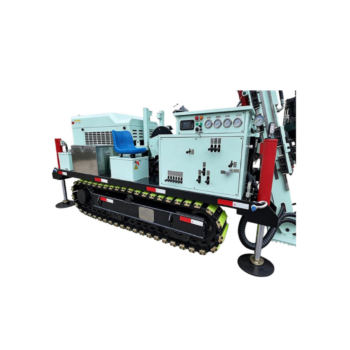

The FD Series Full Hydraulic Drilling Rigs are heavy-duty drilling systems designed for core drilling, water well drilling, and geological investigation. With models offering drilling depths from 400 m to 1,400 m, the range provides powerful hydraulic performance, high torque, and flexible crawler, skid, or truck-mounted configurations for demanding field conditions.
